JL Audio RD 4-CH. FULL-RANGE CAR AMPLIFIER 400 W RD400/4

JL Audio® RD Car Full-range Amplifier 4 Channel Full-range Amplifier (400 W)

SKU: JLARD400/4

SLEEK, POWERFUL, PACKED WITH VALUE

The look is amazing, and the performance backs it up. These ultracompact full-range RD series amplifiers from JL Audio are engineered to generate loads of power with exceptional efficiency and low distortion. The result: premium audio quality with significantly reduced current draw and heat.

• 12-DECIBEL/OCTAVE FILTER WITH VARIABLE HIGH-, LOW- AND BAND-PASS FILTERS
• SELECTABLE INPUT VOLTAGE: LOW (200 mV TO 2-VOLT RMS) TO HIGH (800 mV to 8-VOLT RMS)
• 3 TURN-ON OPTIONS: +12-VOLT REMOTE WIRE, SIGNAL SENSING OR DC OFFSET
• ONBOARD LED CLIPPING INDICATOR SIMPLIFIES LEVEL SETTING
• SIGNAL ROUTING FLEXIBILITY WITH SELECTABLE INPUT MODE AND TYPE
• 2-YEAR WARRANTY

What You'll Love:

EFFICIENT CLASS-D DESIGN

• Small size, minimal heat, and lots of power — Class-D amplifier design offers significant advantages. And our NexD™ switching technology adds even more, using enhanced pulse width modulation techniques to boost the amplifier’s bandwidth while minimizing distortion and improving efficiency.

CLEAN, POWERFUL, RELIABLE

• The 4-channel amp churns out 400 watts of total power — 100 watts from each channel into a 2-ohm load (14.4 volts, 1% THD). The 6-channel amp outputs 800 watts of total power with an additional pair of channels capable of 200 watts each into a 2-ohm load (14.4 volts, 1% THD). All RD channel pairs are bridgeable for maximum application flexibility.

STUDIO-GRADE SIGNAL PROCESSING

• This RD series amplifier’s signal processing features include high- or low-pass 12-decibel/octave filters for each channel pair, with continuously variable frequency selection from 50–500 Hz. The 6-channel model offers triple high-pass filters or full 3-way crossover capability.

LED CLIPPING INDICATORS

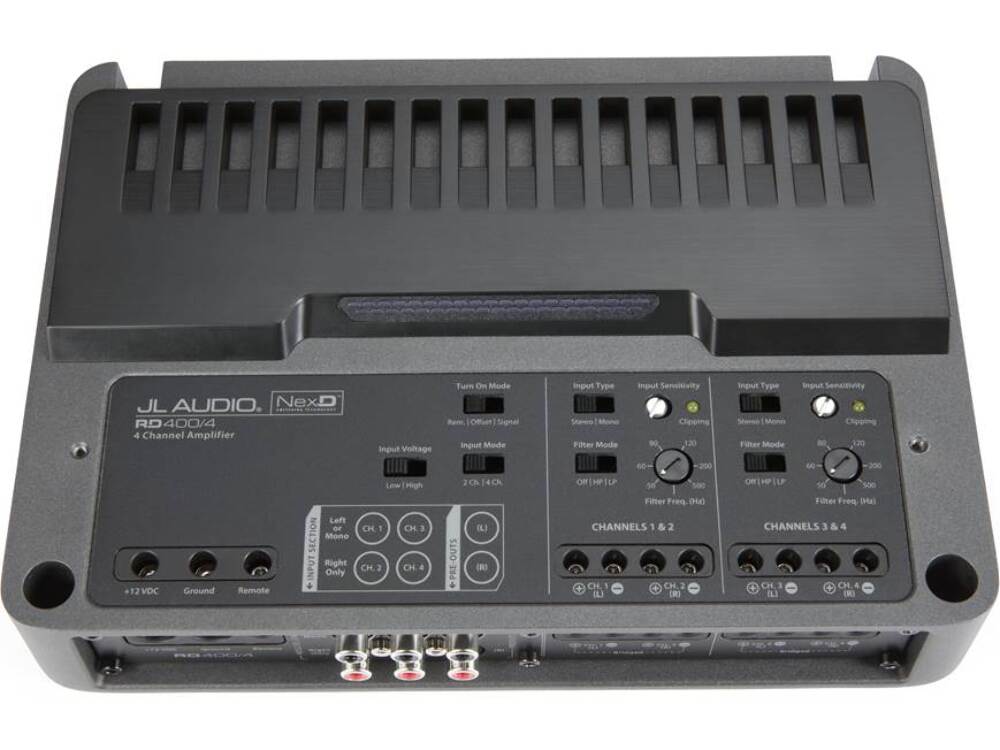

• LED clipping indicators on the control panel let you quickly set each channel pair’s input sensitivity, without the need for additional test equipment.

EASY CONNECTIVITY

• With “input type” switches on the stereo channel sections, RD series amps can eliminate the need for Y-adapters when bridging stereo output channels.

AUDIO TECHNOLOGIES:

DIFFERENTIAL-BALANCED INPUTS

• Combating induced cable noise, this technology allows for the use of conventional RCA cables while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.

NEXD SWITCHING TECHNOLOGY

• Using enhanced pulse width modulation techniques, NexD technology achieves exceptional audio fidelity and efficiency while delivering high-power output from very compact amplifier designs.

In The Box:

• RD amplifier
• 2.5 mm Allen-wrench
• JL Audio badge

Specs:

Audio

Signal Processing
