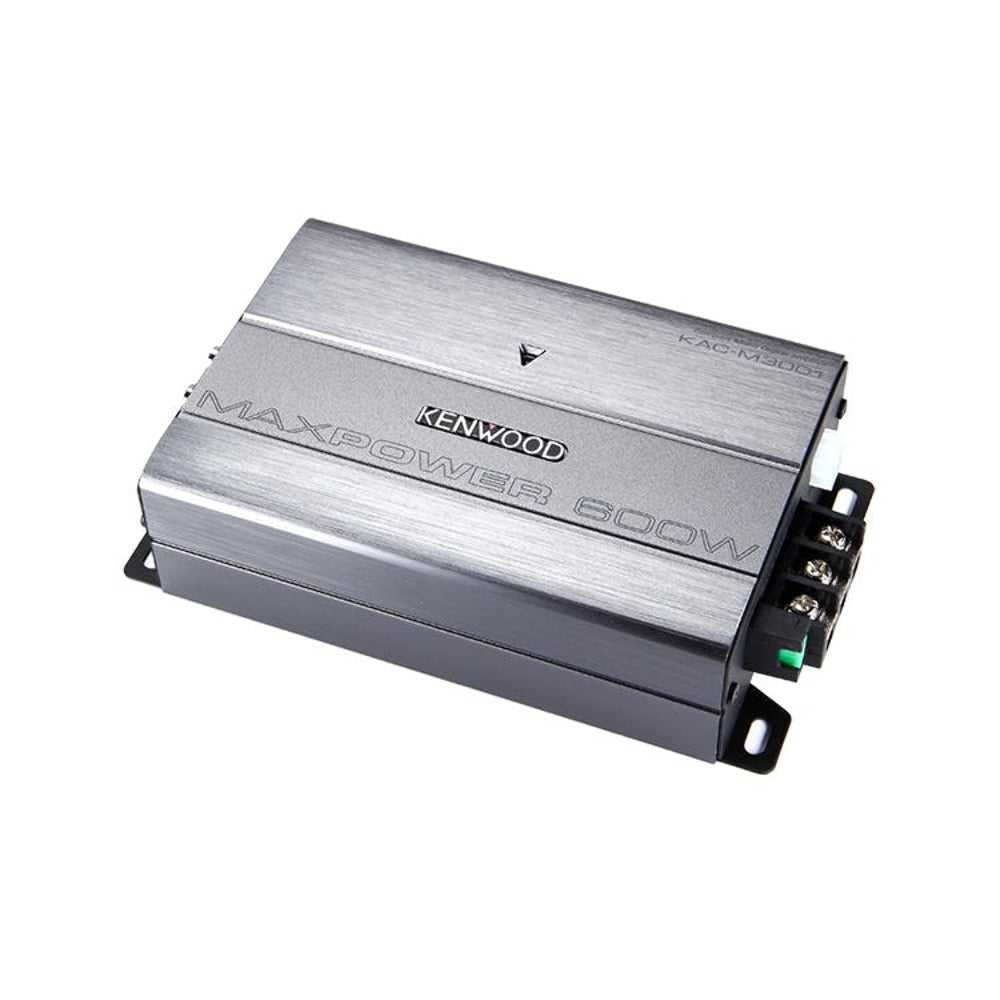

Compact Mono Digital Amplifier


General Features:

RMS POWER Output 4and Omega;: 200W x 1

RMS POWER Output 2and Omega;: 300W x 1

Dimensions(WxHxD): 5-11/16" x 1-3/4" x 3-7/8"

Singal Sensing Turn-on

Conformal Coatingand *1

*1: Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.


Many of todayand rsquo;s powersports have very limited space to work in and tend to be a harsh environment for electronics because of the exposure to outdoor environments. KENWOODand rsquo;s compact performance amplifiers are small in size so they fit even the most limited installation areas. The amplifiers also use a conformal coated main PCB (printed circuit boards) which offer extra layers of protection to help prevent moisture or damp air from damaging the product.


Title Compact Mono Digital Amplifier
Amplifier Type Class D
CEA-2006 Primary Ratings Power Output 200 Watts RMS x 1 at 4 Ohms and and le;1%THD+N
Signal-to-Noise Ratio 78dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output 600W
Specifications Signal to Noise Ratio 97dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20 Hz-200Hz (+0dB, -3dB)
Input Impedance 10k ohm
Speaker Impedance 4and Omega; (2and Omega; to 8and Omega; allowable)
Bridged connection -
Audio Section Low-Pass Filter Built in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct)
High-Pass Filter -
Filter Selector 1 -
RCA Input Sensitivity 0.2 V - 5.0 V
Speaker Level Input Sensitivity 4.0 V - 12.0 V
Terminals Battery and amp; Ground Screw Type Terminal Block (Ni) (M4)
Speaker Output MOLEX Connector with AWG16 200mm Wire
Line In RCA (Ni)
General Dimensions(WxHxD) '5-11/16 X '1-3/4 X '3-7/8 inch
Weight(kg) -
Operating Voltage 14.4V(11-16V allowable)
Current Consumption 20 A
Key Features

CEA-2006 Compliant

Class D

2 Ohms Load Capability

Speaker Level Input

Signal Sensing Turn-on

Power MOS-FET Switching Power Supply

Extruded Aluminum Heat Sink Design


Triangle Indicator
