Description

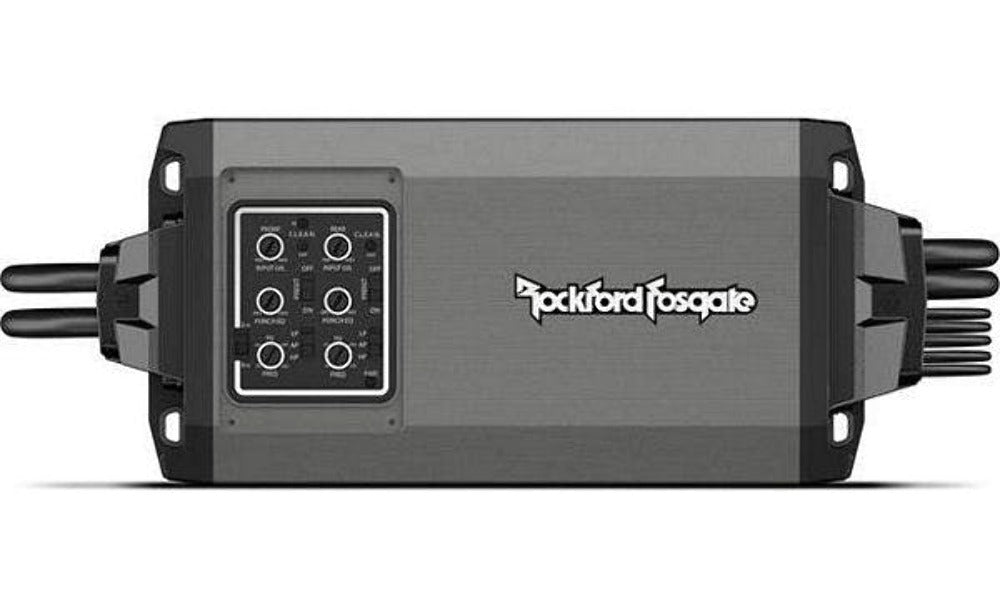

Rockford Fosgate M5 Series marine 4-channel amplifier and mdash; 100 watts RMS x 4

M5-800X4

Product highlights:

  • marine 4-channel amplifier
    • 100 watts RMS CTA-2006 x 4 at 2 or 4 ohms
    • bridged power: 200 watts RMS CTA-2006 x 2 at 4 ohms
    • max Dynamic Power rating: 200 watts x 4 at 2 ohms
  • Class AD amplifier design
  • frequency response: 10-50,000 Hz
  • variable low-pass and high-pass filters (50-250 Hz, 12 dB/octave)
  • variable bass boost (0-18 dB at 45 Hz)
  • marine features:
    • Element Ready and chassis and conformal-coated PC boards
    • IPX6 water intrusion rating
    • heavy-duty molded connectors protect wiring from water and dirt
    • Preset button for instant tuning in Rockford Fosgate UTV audio packages
More Info:
  • C.L.E.A.N. gain setup system includes clip lights
  • auto remote turn-on
  • preamp and speaker-level inputs
  • preamp outputs
  • wiring, fuse, and hardware not included with amplifier
    • 8-gauge power and ground leads and a 100-amp fuse recommended
  • dimensions: 12"W (includes wiring) x 1-13/16"H x 4-1/4"D
  • warranty: 2 years
  • MFR # M5-800X4

What's in the box:

  • 4-Channel powersports amplifier
  • 11" Power/ground/turn-on speaker output harness (installed on amp)
  • 11" Input harness (installed on amp)
  • Two 14" RCA-to-Molex input adapters
  • Power/ground/turn-on adapter plug
  • Two 7.5" speaker output harnesses
  • 3mm Allen key
  • Owner's manual
  • Performance certificate
  • Contact information

Features specs

Performance
RMS Power Output (Watts x Channels) 100 x 4
Frequency Response at Rated RMS Power 20Hz-20k Hz
THD at Rated RMS Power 0.25%
Signal to Noise Ratio 105 dB
Input Voltage N/A
Peak Power Output (Watts x Channels) 125 x 4
Power at 2 Ohms (Watts x Channels) 100 x 4
Bridged Power (Watts x Channels) 200 x 2
Minimum Impedance Bridged 4
Minimum Impedance Unbridged 2
Features
Amplifier Class A/D
Low-Pass Crossover Frequency 50-250Hz
Low-Pass Slope (dB/octave) 12 dB/octave
High-Pass Crossover Frequency 50-250Hz
High-Pass Slope (dB/octave) 12 dB/octave
Bass Boost 0-18dB
Bass Boost Frequency 45Hz
Fan Cooled No
Fuse Rating 100
Speaker Level Inputs Yes
Preamp Outputs No
Height (inches) 1-13/16
Width (inches) 12
Depth (inches) 4-1/4
Parts Warranty 2 Years
Labor Warranty 2 Years
