FASS Diesel Fuel Systems Dedicated Fuel Systems
Part 3: FASF15250F220G

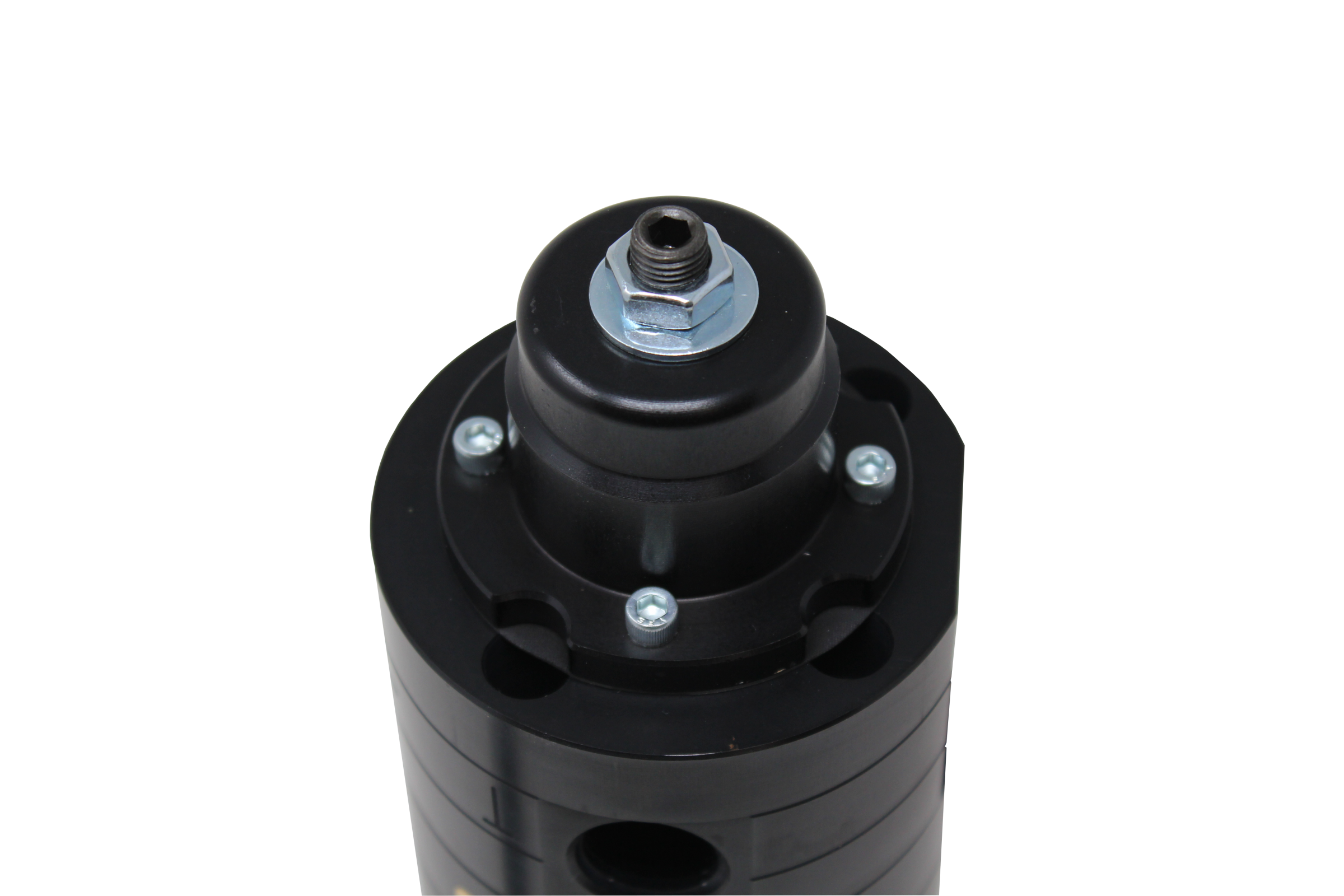

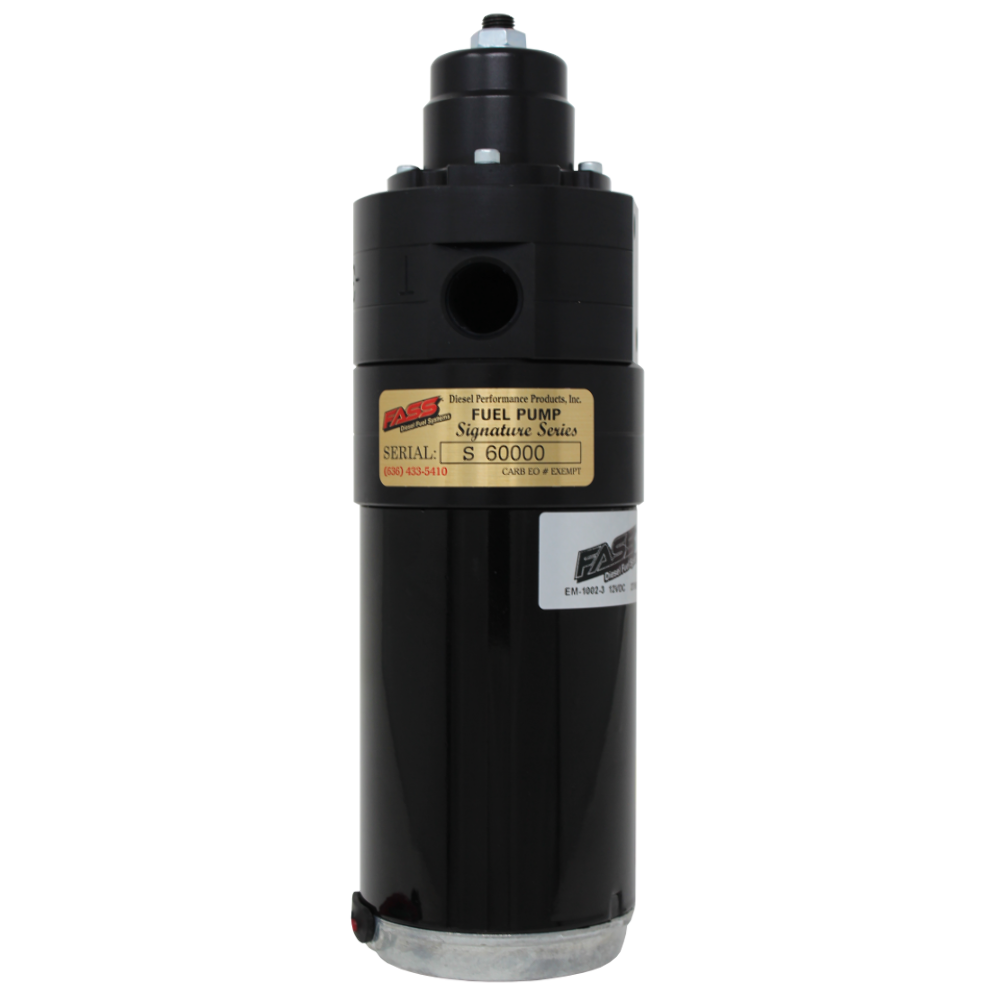

FASS Adjustable Diesel Fuel Lift Pump 250F 220GPH at 55PSI Ford Powerstroke 1999-2007
Whisper Technology;Adjustable Fuel Pressure 1-75 PSI;High Performance 220GPH;Improves Fuel Flow;Boost Compensation Port;Built In Fuel Pressure Gauge Port;All Mounting Hardware Included;This is a fuel System only and must be used with your factory fuel filter. It is suggested that all Systems be adjusted only if you have installed a fuel pressure gauge.
FASS Fuel Systems Signature Series Adjustable Diesel Fuel System 220GPH Ford Powerstroke 7.3L and 6.0L 1999-2003 (FASF15250F220G) Part No: FASF15250F220GOur FASS Adjustable Diesel Fuel Systems are designed to be the most versatile high performance fuel System on the market that allows for adjustable fuel pressures to meet the demand of high performance Ford Powerstroke applications.Manufactured with the same motor used in our Titanium Signature Series Systems, this adjustable fuel System is rated at 220 gallons of diesel fuel per hour and offers adjustable fuel pressure from 1-75 PSI to customize fuel delivery for race or competition diesel engines.To aid in proper performance we built in a boost compensation port, air pressure from your intake manifold raises fuel pressures while under full throttle, maintaining fuel pressure when it matters most. This kit includes a Bulkhead Fitting and Suction Tube.Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return and features a 5/8 inch Suction Tube along with a 1/2 inch Fuel Return Port. This new and improved version from our previous Suction Tube allows the user to plum their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process.The pickup tube is fabricated of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.Powerstroke Adjustable High Performance System Features:Whisper TechnologyAdjustable Fuel Pressure 1-75 PSIHigh Performance 220GPHImproves Fuel FlowBoost Compensation PortBuilt In Fuel Pressure Gauge PortAll Mounting Hardware IncludedThis is a fuel System only and must be used with your factory fuel filter. It is suggested that all Systems be adjusted only if you have installed a fuel pressure gauge.
