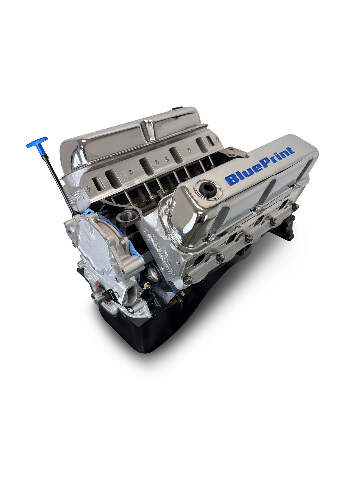

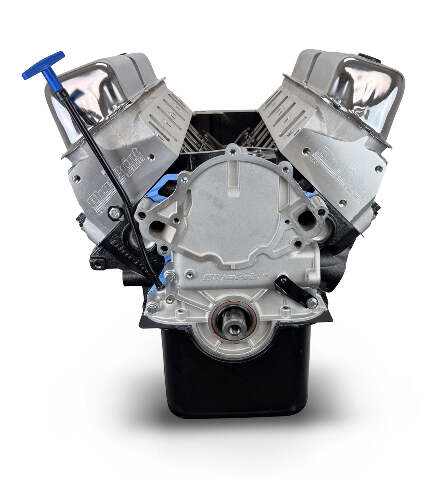

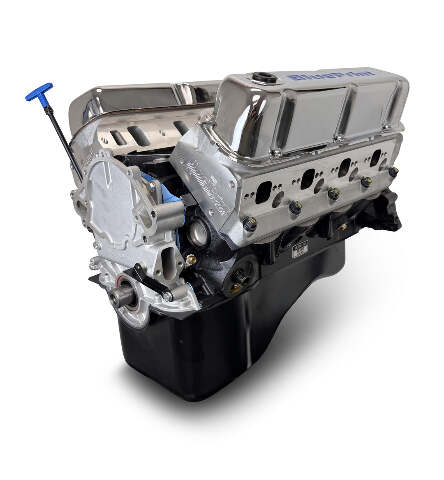

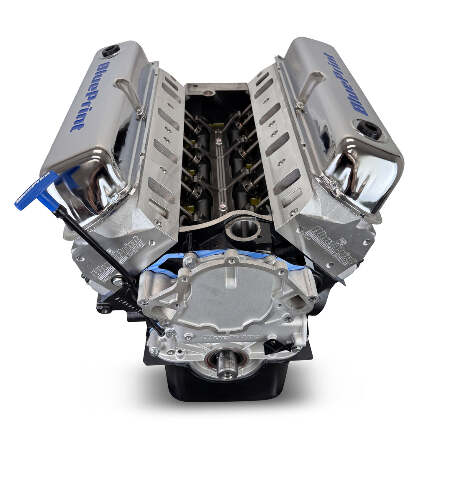

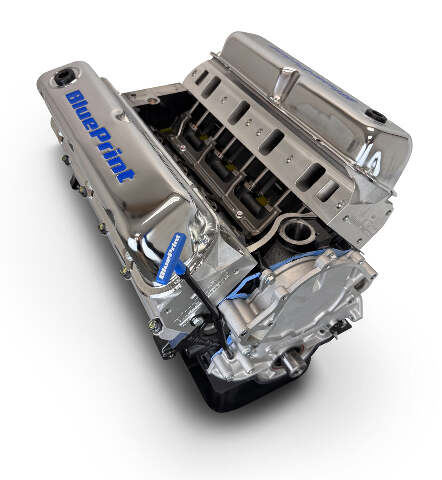

BluePrint Engines 302 ci Small Block Ford Cruiser Style Engine - Long Block

PN. BP302CT

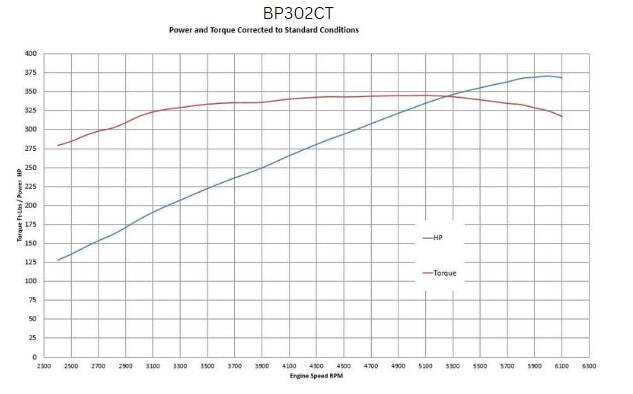

Horsepower & Torque: 361 Horsepower / 334 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 9.4:1

Camshaft: Hydraulic Roller Cam - .533 Intake / .544 Exhaust Lift and 215 Intake / 220 Exhaust Duration @ .050 - 114° LSA

Pistons: Hypereutectic

Crankshaft: Cast Crank - 3.000" Stroke and 5.090" Rods

Fuel Recommendation: 87+ Octane

Description:

• Horsepower & Torque: 361 Horsepower / 334 ft. lbs. Torque
• Compression Ratio: 9.4:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Cast Crank
• BluePrint Engines Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Cast Crank
• 3.000" Stroke
• OEM Type 5.090" Connecting Rods
• Hypereutectic Pistons
• 50oz Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam
• .533 Intake / .544 Exhaust Lift
• 215 Intake / 220 Exhaust Duration
• @.050-114 Degree Lobe Separation

Ignition Timing:

• 10-16 Degrees Initial, 32-34 Total

Also Includes:

• Front Sump Oil Pan
• Valve Covers
• Timing Cover
• Dipstick

Notes:

• This engine is an excellent cruiser and daily driver engine. This engine makes up to 13 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
