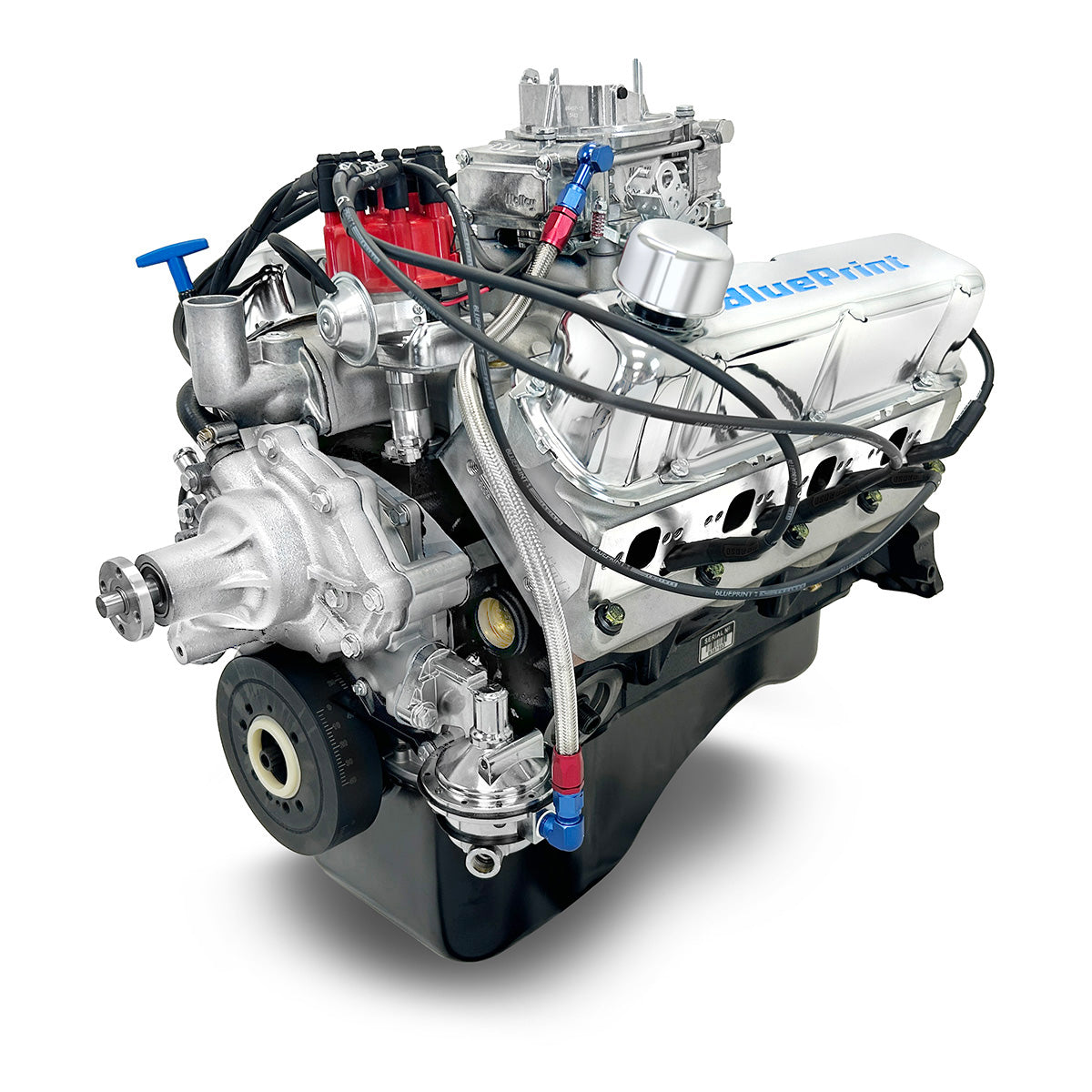

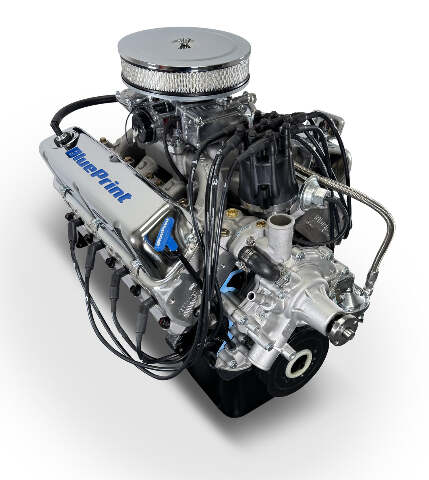

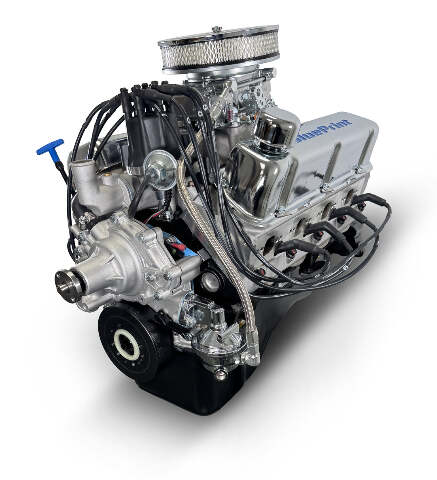

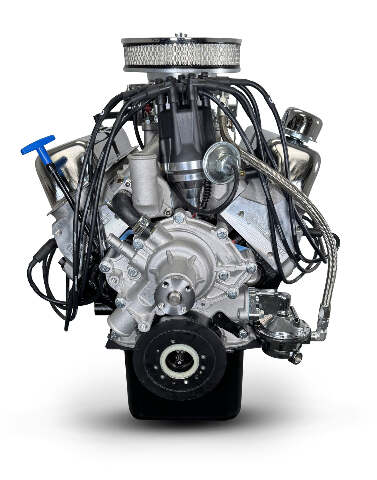

BluePrint Engines 302 ci Small Block Ford style engine - dressed longblock w/ carb
PN. BP302CTCD

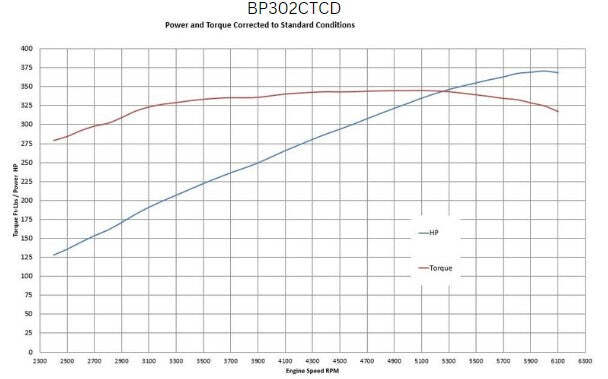

Horsepower & Torque: 361 Horsepower / 334 FT. LBS. Troque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 9.4:1
Camshaft: Hydraulic Roller Cam - .533 Intake / .544 Exhaust Lift and 215 Intake / 220 Exhaust Duration @ .050 - 114° LSA
Pistons: Hypereutectic
Crankshaft: Cast Crank - 3.000" Stroke and 5.090" Rods
Fuel Recommendation: 87+ Octane
Description:
- Horsepower & Torque: 361 Horsepower / 334 FT. LBS. Torque
- Compression Ratio: 9.4:1
- BluePrint Engines Aluminum Heads
- BluePrint Hydraulic Roller Cam
- BluePrint Engines Cast Crank
- BluePrint Engines Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4.000" Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Cast Crank
- 3.000" Stroke
- OEM Type 5.090" Connecting Rods
- Hypereutectic Pistons
- 50oz Externally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads
- 60cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .533 Intake / .544 Exhaust Lift
- 215 Intake / 220 Exhaust Duration
- @.050–114 Degree Lobe Separation
Ignition Timing:
- 10-16 Degrees Initial, 32-34 Total
Also Includes:
- Holley 600 CFM Street Warrior Carburetor
- Thermostat and Thermostat Housing
- Standard Rotation Water Pump
- Spark Plugs and Wires
- Front Sump Oil Pan
- Harmonic Balancer
- Timing Cover
- Valve Covers
- Distributor
- Air Cleaner
- Intake
Notes:
- This engine is an excellent cruiser and daily driver engine. This engine makes up to 13 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
