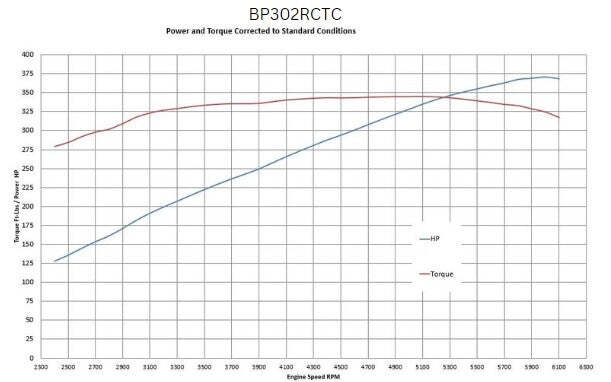

Horsepower & Torque: 361 Horsepower / 334 FT. LBS. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 9.4:1
Camshaft: Hydraulic Roller Cam - .533 Intake / .544 Exhaust Lift and 215 Intake / 220 Exhaust Duration @ .050 - 114° LSA
Pistons: Hypereutectic
Crankshaft: Cast Crank - 3.000" Stroke and 5.090" Rods
Fuel Recommendation: 87+ Octane
Description:
- Horsepower & Torque: 361 Horsepower / 334 FT. LBS. Torque
- Compression Ratio: 9.4:1
- Aluminum Heads
- Hydraulic Roller Cam
- Cast Crank
- Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4.000" Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Cask Crankshaft
- 3.000" Stroke
- OEM Type 5.090" Connecting Rods
- Hypereutectic Pistons
- 50oz Externally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads
- 60cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .533 Intake / .544 Exhaust Lift
- 215 Intake / 220 Exhaust Duration
- @.050–114 Degree Lobe Separation
Ignition Timing:
- 10-16 Degrees Initial, 32-34 Total
Also Includes:
- Holley 600 CFM Street Warrior Carburetor
- Dual/Rear Sump Oil Pan
- Intake Manifold
- Distributor
- Harmonic Balancer
- Valve Covers
- Timing Cover
Notes:
- Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
- This engine is an excellent cruiser and daily driver engine. This engine makes up to 13 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
