Description

Ford Small Block Compatible 347 c.i. Engine - 415 Horsepower - Base Dressed - Carbureted

SKU: BP3479CTC

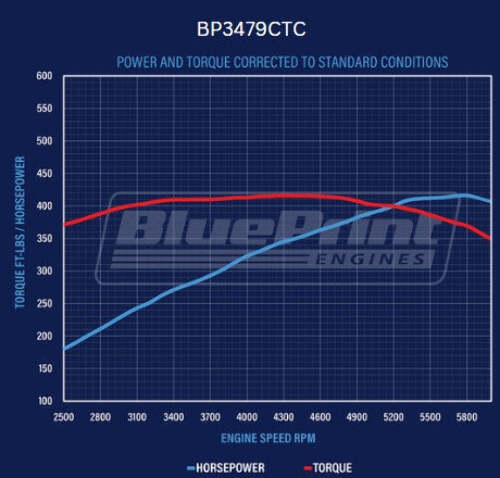

Horsepower & Torque: 415 Horsepower / 415 FT. LBS. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller Cam - .543 Intake / .554 Exhaust Lift and 218 Intake / 226 Exhaust Duration @ .050 - 112° LSA

Pistons: Forged

Crankshaft: Cast Crank - 3.400" Stroke and Forged 5.400" Rods

Fuel Recommendation: 91+ Octane Approved

Description:

  • Horsepower & Torque: 415 Horsepower / 415 FT. LBS. Torque
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Cast Crankshaft
  • Hydraulic Roller Cam

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Increased Deck Thickness and Strength Webbing
  • Priority Main Oiling
  • 4.000" Bore
  • 4-Bolt Main
  • 1-Piece Rear Main Seal
  • Improved Water Jacket Design

    Rotating Assembly:

    • Cast Crankshaft
    • 3.400" Stroke
    • Forged 5.400" Connecting Rods
    • Forged Pistons
    • 28oz Externally Balanced Front and Rear

    Cylinder Heads:

    • BluePrint Aluminum Cylinder Heads
    • 60cc Chamber
    • 2.02" Intake / 1.60" Exhaust Valves
    • 190cc Intake / 60cc Exhaust Runners

    Cam Specs:

    • Hydraulic Roller Cam
    • .543 Intake / .554 Exhaust Lift
    • 218 Intake / 226 Exhaust Duration
    • @.050-112 Degree Lobe Separation

    Ignition Timing:

    • 10-16 Degrees Initial, 32-34 Total

    Also Includes:

    • Holley Brawler 670cfm Vacuum Secondary Carburetor w/ Electric Choke
    • Front Sump Oil Pan
    • Intake Manifold
    • Distributor
    • Harmonic Balancer
    • Valve Covers
    • Timing Cover

    Notes:

    • Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
