Description

GM Small Block Compatible 350 c.i. Engine - 390 Horsepower - Base Dressed - Carbureted

SKU: BP3505CTC

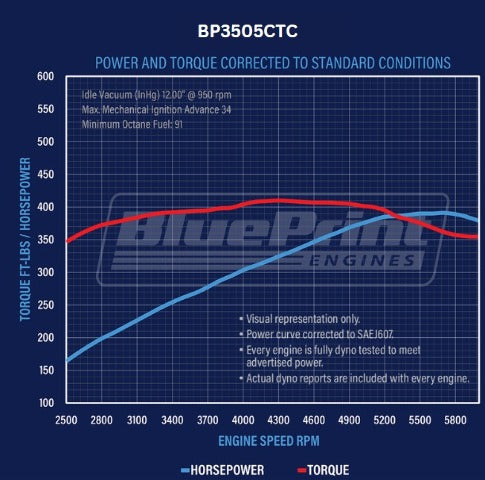

Horsepower & Torque: 390 Horsepower / 410 FT. LBS. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 9.2:1

Camshaft: Hydraulic Roller Cam - .495 Intake / .502 Exhaust Lift and 220 Intake / 224 Exhaust Duration @ .050-114° LSA

Pistons: Hypereutectic

Crankshaft: Cast Crank - 3.480" Stroke and 5.700" Rods

Fuel Recommendation: 87+ Octane

Description:

  • Horsepower & Torque: 390 Horsepower / 410 FT. LBS. Torque
  • Compression Ratio: 9.2:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Cast Crankshaft
  • Hypereutectic Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Manufactured and Machined in the USA!
  • 4-Bolt Main
  • 4.000" Bore
  • 1-Piece Rear Main Seal
  • Mech Fuel Pump Provision: Yes
  • Passenger Side Dipstick
  • Drilled and Tapped for Clutch Linkage

Rotating Assembly:

  • Cast Crankshaft
  • 3.480" Stroke
  • Forged 5.700" Connecting Rods
  • Hypereutectic Pistons
  • Internally Balanced Front - External Balanced Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads
  • 64cc Chamber
  • 2.02" Intake / 1.60" Exhaust Valves
  • 195cc Intake / 75cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .495 Intake / .502 Exhaust Lift
  • 220 Intake / 224 Exhaust Duration
  • @ .050-114 Degree Lobe Separation

Ignition Timing:

  • 32 Degrees Total at 3500 RPM

Also Includes:

  • Holley 670 CFM Brawler Carburetor
  • Valve Covers
  • Rear Sump Oil Pan
  • Timing Cover
  • Aluminum Intake
  • HEI Distributor

Notes:

  • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
