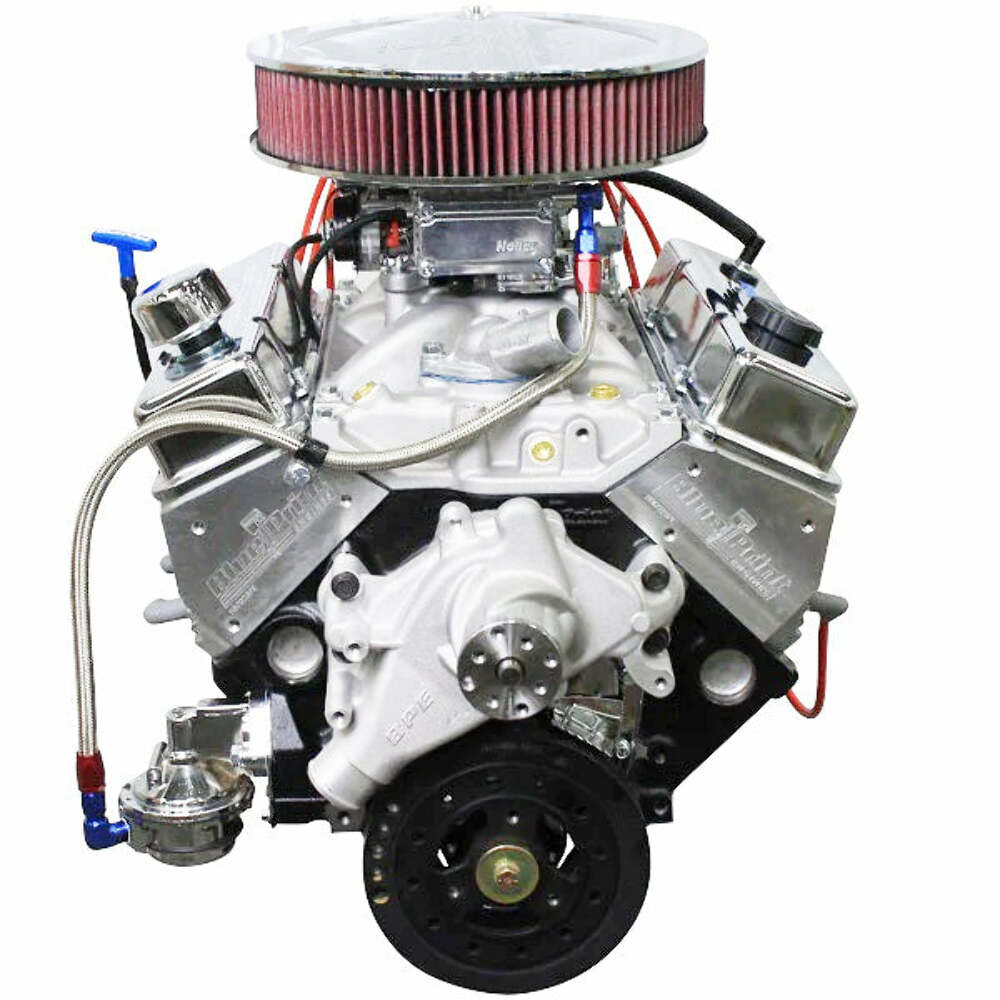

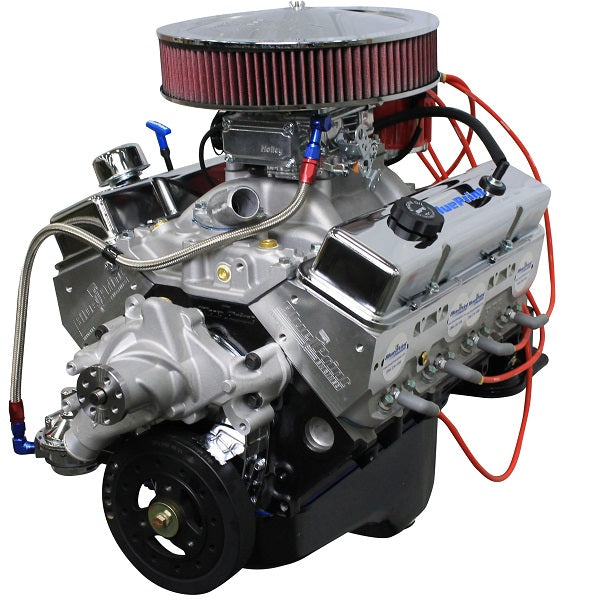

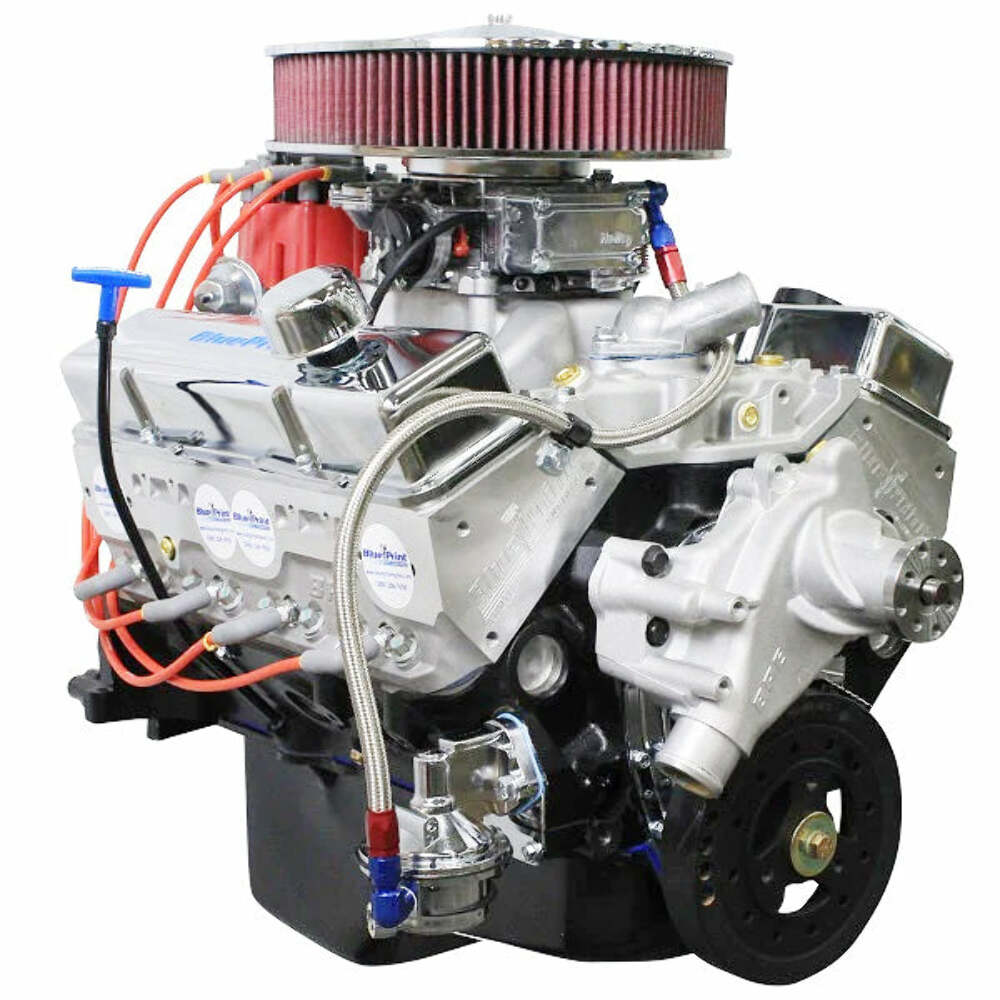

BluePrint Engines 350 ci Small Block GM Style Crate Engine - Dressed - 341 Horsepower - Long Block w/ Carb
SKU: BPEBP350CTCD
Horsepower & Torque: 341 Horsepower / 371 FT. LBS. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 9.2:1
Camshaft: Hydraulic Roller Cam - .477 Intake / .471 Exhaust Lift and 202 Intake / 212 Exhaust Duration @ .050-115° LSA
Pistons: Hypereutectic
Crankshaft: Cast Crank - 3.480" Stroke and 5.700" Rods
Description:
- Horsepower & Torque: 341 Horsepower / 371 FT. LBS. Torque
- Compression Ratio: 9.2:1
- Aluminum Heads
- Hydraulic Roller Cam
- Cast Crankshaft
- Hypereutectic Pistons
Block:
- BluePrint Engine High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.000" Bore
- 1-Piece Rear Main Seal
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- Drilled and Tapped for Clutch Linkage
Rotating Assembly:
- Cast Crankshaft
- 3.480" Stroke
- Forged 5.700" Connecting Rods
- Hypereutectic Pistons
- Internally Balanced Front - Externally Balanced Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - H8002K
- 64cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .477 Intake / .471 Exhaust Lift
- 202 Intake / 212 Exhaust Duration
- @ .050-115 Degree Lobe Separation
Ignition Timing:
- 32 Degrees Total at 3500 RPM
Also Includes:
- Holley Street Warrior 600cfm Vacuum Secondary Carburetor w/ Electric Choke
- Valve Covers
- Harmonic Balancer
- Spark Plugs
- Spark Plug Wires
- Standard Rotation Long Style Water Pump
- Water Neck
- Thermostat and Thermostat Housing
- Fuel Pump
- Rear Sump Oil Pan
- Timing Cover
- Aluminum Intake
- HEI Distributor
Recommended Break-in Oil: BPP710
Recommended Service Oil: BPP10W30
Recommended Oil Filter: BPP51061
Notes:
- This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum and is designed to work excellent with power brakes, stock torque converter, and stock gearing, and runs on 87 octane fuel
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
ENGINE ACCESSORY SPECIFICATIONS:

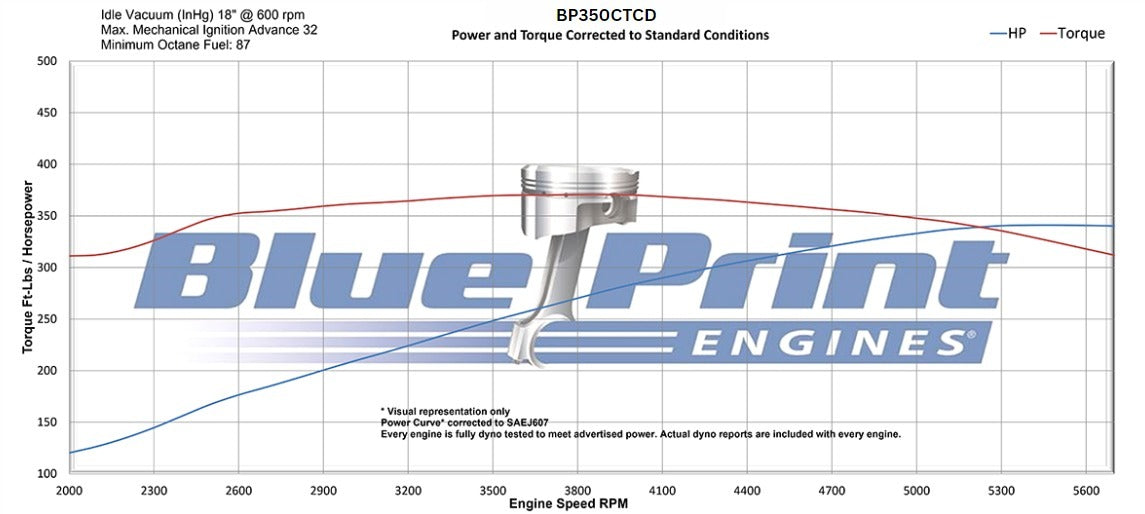

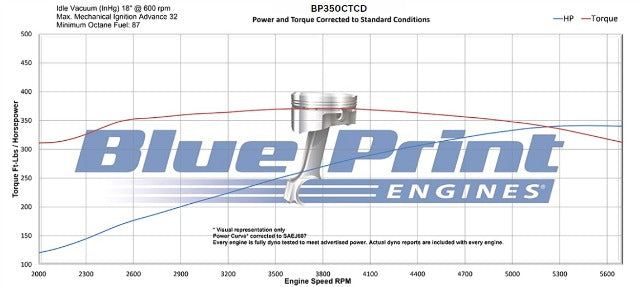

Your BluePrint engine was dyno-tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Part Number: BP350CTCD
Fuel Delivery Type: Carbureted
Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)
Spark Plug Gap: .035"
Harmonic Balancer: BPP350-Non-Weighted, 8" Diameter
Flexplate/Flywheel: (Not included) Recommend Late 350 Weighted BPP871006
Stall Converter: Stock
Intake Manifold: Dual Plane, Satin Aluminum BPP350VINT
Fuel Recommendation: 87 Octane
Timing (Initial/Total Advance): Initial Timing 10-16° and Total Timing 32°
Firing Order: 1,8,4,3,6,5,7,2
Recommended Break-in Oil: BPP710
Recommended Service Oil: BPP10W30
Recommended Oil Filter: BPP51061
Total Oil Capacity with Production Oil Pan, and Correct: BPP51061 Filter - 5 Quarts
Click here to download a copy of the Installation Guide that came with your BluePrint engine
WARRANTY:
BETTER THAN THE REST.
The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.
We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.
For a detailed overview of our warranty, click here.
DYNO PROMISE:
IT ALL COMES DOWN TO RESULTS.
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.
BRAGGING RIGHTS INCLUDED!
A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!
