Description

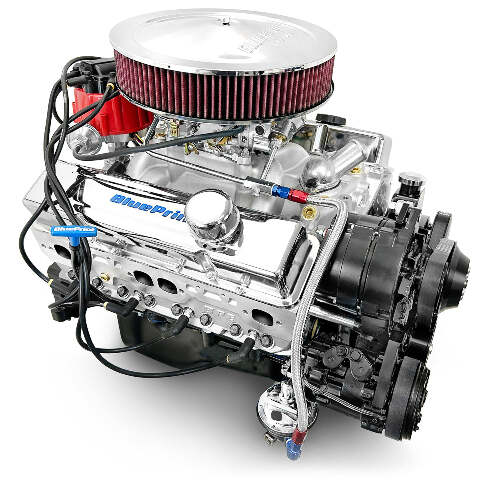

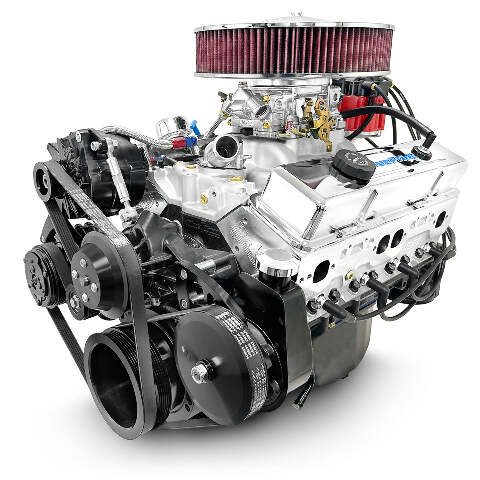

BluePrint Engines 383 Crate Engine 436 HP GM Small Block

SKU: BP38318CTC1DK

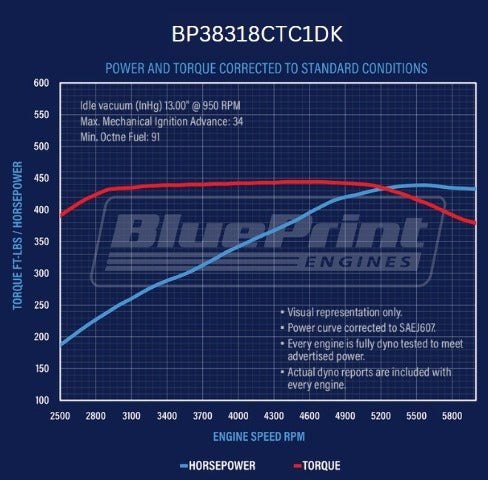

Horsepower & Torque: 436 Horsepower / 443 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller Cam - .544 Intake / .555 Exhaust Lift and 230 Intake / 236 Exhaust Duration @ .050 - 110° LSA

Pistons: Hypereutectic

Crankshaft: Cast Crank - 3.750" Stroke and 5.700" Rods

Fuel Recommendation: 91+ Octane

Description:

  • Horsepower & Torque: 436 Horsepower / 443 ft. lbs. Torque
  • Compression Ratio: 10.0:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Cast Crankshaft
  • BluePrint Engines Hypereutectic Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Manufactured and Machined in the USA!
  • Drilled and Tapped for Clutch Linkage
  • Mech Fuel Pump Provision: Yes
  • Passenger Side Dipstick
  • 1-Piece Rear Main Seal
  • 4-Bolt Main
  • 4.000" Bore

Rotating Assembly:

  • Cast Crankshaft
  • 3.750" Stroke
  • OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
  • Hypereutectic Pistons
  • Externally Balanced Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads
  • 64cc Chamber
  • 2.02" Intake / 1.60" Exhaust Valves
  • 195cc Intake / 75cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .544 Intake / .555 Exhaust Lift
  • 230 Intake / 236 Exhaust Duration
  • @ .050-110 Degree Lobe Separation

Ignition Timing:

  • 34 Degrees Total at 3500 RPM

Also Includes:

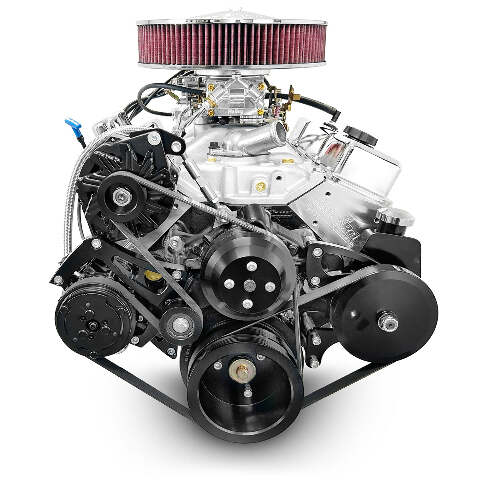

  • Black Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
  • Holley Classic 750cfm Vacuum Secondary Carburetor w/ Manual Choke
  • Aluminum Intake Manifold
  • Thermostat and Thermostat Housing
  • Mechanical Fuel Pump
  • HEI Distributor
  • Valve Covers
  • Spark Plugs and Wires
  • Harmonic Balancer
  • Timing Cover
  • Oil Pan

Notes:

  • This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
  • Front Accessory Drive does NOT fit Corvette
  • The front accessory drive on this engine fits many vehicles; however, it is the customer's responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
  • Not for use in pollution-controlled vehicles.
  • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
