Description

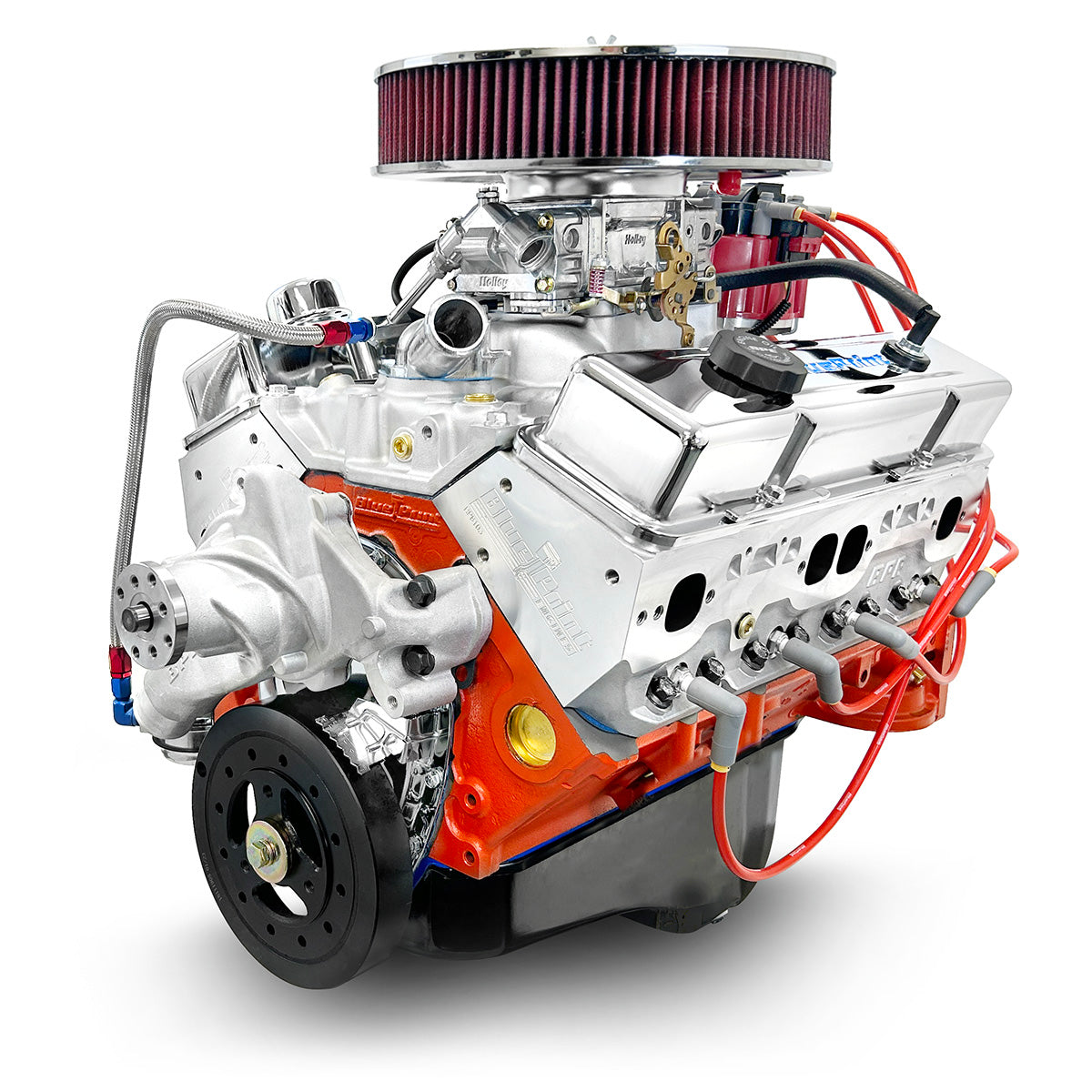

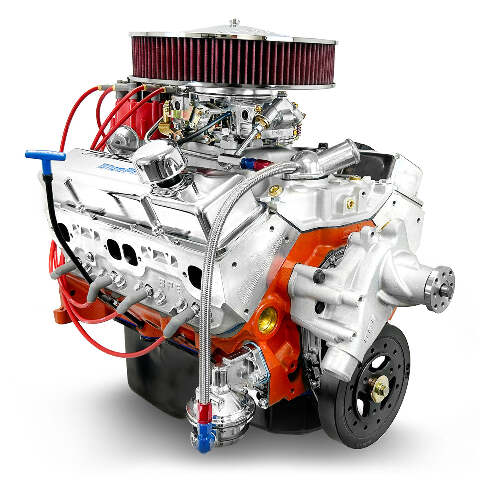

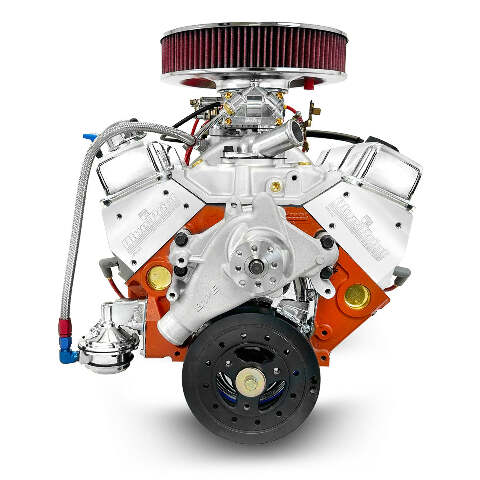

GM Small Block Compatible 400 c.i. Engine - 500 Horsepower - Deluxe Dressed - Carbureted

SKU: BP4002CTC1D

Horsepower & Torque: 500 Horsepower / 510 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10.3:1

Camshaft: Hydraulic Roller Cam - .553 Intake / .576 Exhaust Lift and 236 Intake / 242 Exhaust Duration @ .050 - 110° LSA

Pistons: Forged

Crankshaft: Steel Crank - 3.750" Stroke and 5.700" Rods

Fuel Recommendation: 91+ Octane

Description:

  • Horsepower & Torque: 500 Horsepower / 510 ft. lbs. Torque
  • Compression Ratio: 10.3:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Forged Crank
  • BluePrint Engines Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Manufactured and Machined in the USA!
  • Drilled and Tapped for Clutch Linkage
  • Mech Fuel Pump Provision: Yes
  • Passenger Side Dipstick
  • 1-Piece Rear Main Seal
  • 4-Bolt Main
  • 4.125" Bore

Rotating Assembly:

  • BluePrint Forged Steel Crankshaft
  • 3.750" Stroke
  • 5.700" Connecting Rods w/ 150,000 PSI Bolts
  • Forged Pistons
  • Internally Balanced Front - Externally Balanced Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads
  • 64cc Chamber
  • 2.08" Intake / 1.60" Exhaust Valves
  • 220cc Intake / 67cc Exhaust Runners

Cam Specs:

  • Hydraulic Roller
  • .553 Intake / .576 Exhaust Lift
  • 236 Intake / 242 Exhaust Duration
  • @ .050-110 Degree Lobe Separation

Ignition Timing:

  • 10-16° Initial and Total Timing 32-34° at 3500 RPM

Also Includes:

  • Holley 850cfm Double Pumper Carburetor
  • Satin Aluminum Intake Manifold
  • HEI Ready Run Distributor
  • Thermostat and Thermostat Housing
  • Long Style Water Pump
  • Mechanical Fuel Pump
  • Valve Covers
  • Spark Plugs and Wires
  • Harmonic Balancer
  • Timing Cover
  • Oil Pan

Notes:

  • Not for EGR
  • The Aftermarket intake manifold and heads installed on this engine may not be compatible with OEM accessory brackets that use intake or exhaust mounted bosses.
  • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
