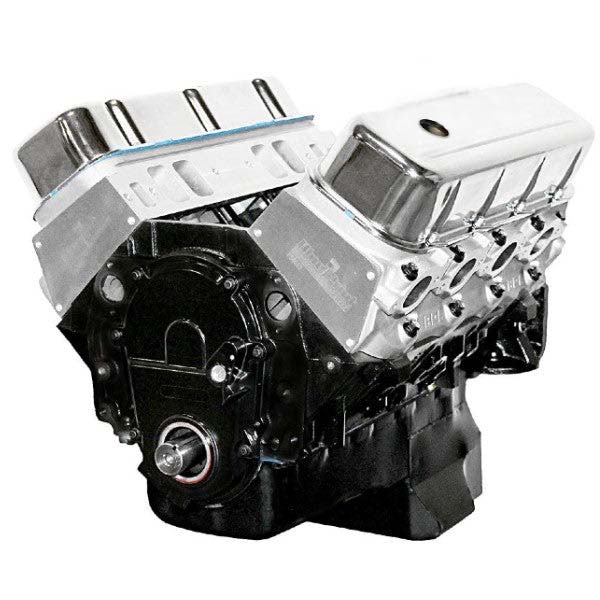

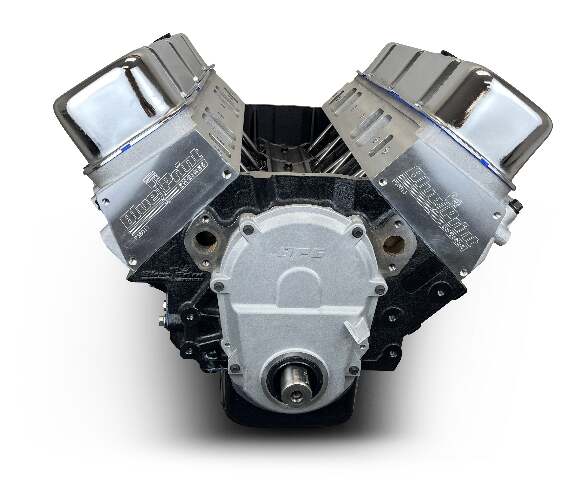

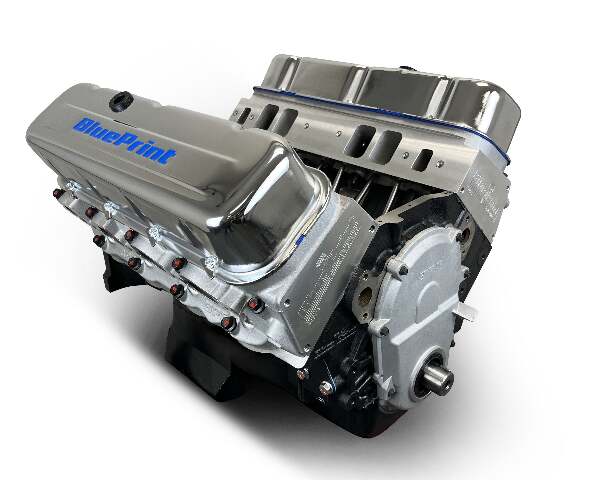

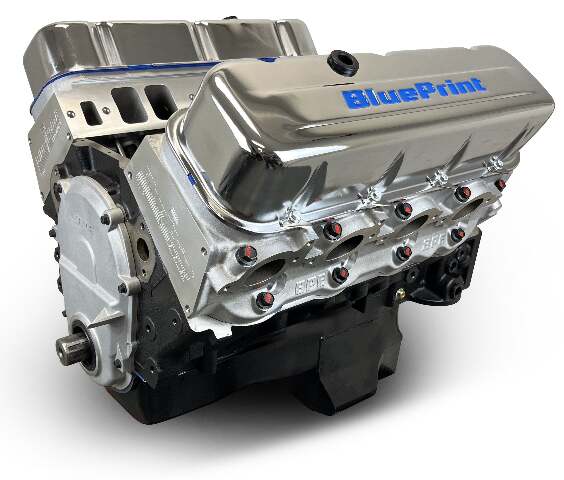

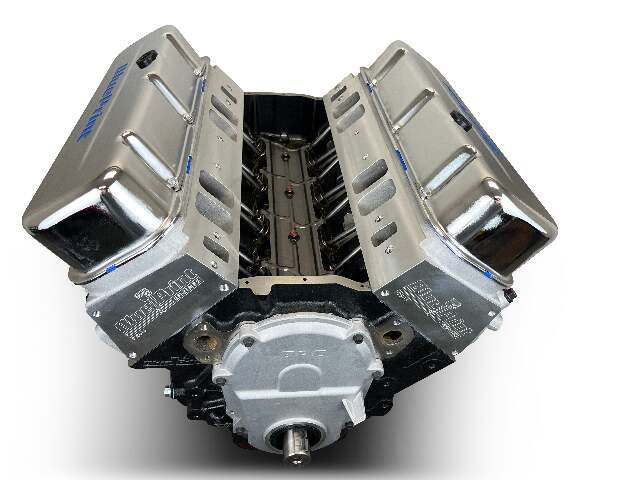

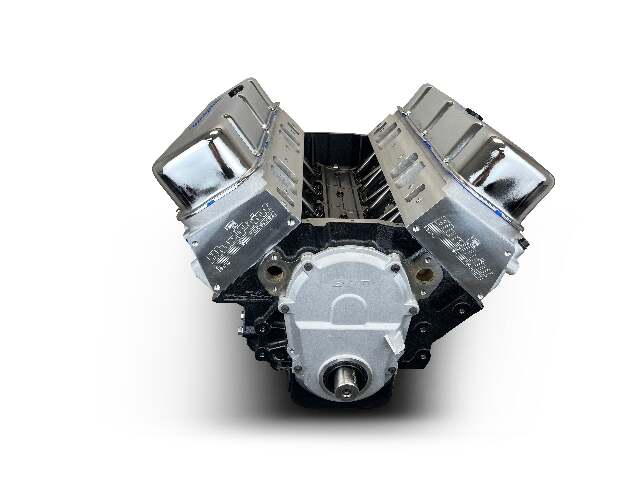

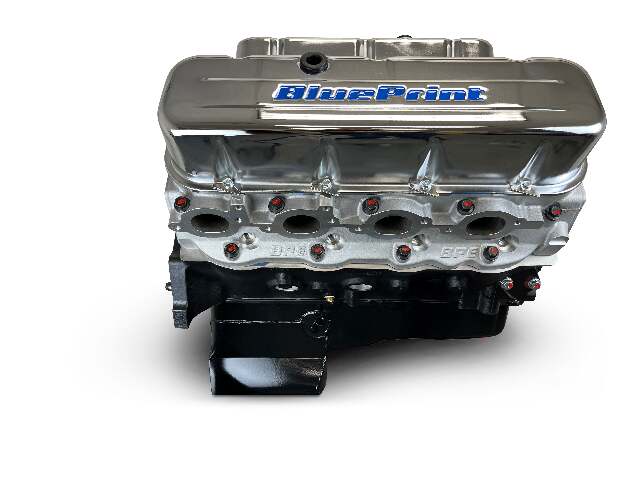

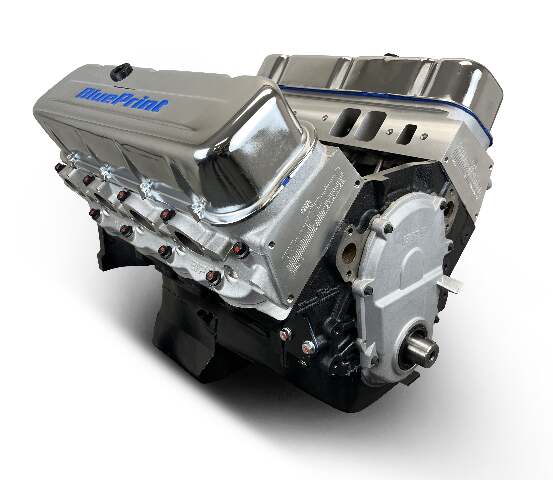

BluePrint Engines 496 ci Big Block GM Style Crate Engine - 600 HORSEPOWER - Long Block
SKU: BPEBP4967CT
Horsepower & Torque: 600 Horsepower / 568 FT. LBS. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10.1:1
Camshaft: Hydraulic Roller Cam - .647 Intake / .647 Exhaust Lift and 248 Intake / 254 Exhaust Duration @ .050 - 112° LSA
Pistons: Hypereutectic
Crankshaft: Steel Crank - 4.250" Stroke and Forged 6.135" Rods
Description:
- Horsepower & Torque: 600 Horsepower / 568 FT. LBS. Torque
- Compression Ratio: 10.1:1
- Aluminum Heads
- Hydraulic Roller Cam
- Forged Crank
- Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block, 454 BBC
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.310" Bore
- 1-Piece Rear Main Seal
- Mech Fuel Pump Provision: Yes
- Standard Deck
Rotating Assembly:
- New BluePrint Forged Crankshaft
- 4.250" Stroke
- OEM Type 6.135" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Externally Balanced
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8013
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 316cc Intake / 124cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting.
- Must Verify Header / Exhaust Clearance
Cam Specs:
- Cam Type: Roller
- .647 Intake / .647 Exhaust Lift
- 248 Intake / 254 Exhaust Duration
- @ .050-112 Degree Lobe Separation
Ignition Timing:
- 10-16° and Total Timing 32-34° at 3500rpm
Also Includes:
- Valve Covers
- Oil Pan
- Timing Cover
Notes:
- Not for EGR.
- Features External 42.5 oz. imbalance. Recommend GM flywheel 14096987, or TCI flex plate 399973.
*A bronze distributor gear is NOT recommended on this engine.
ENGINE ACCESSORY SPECIFICATIONS:

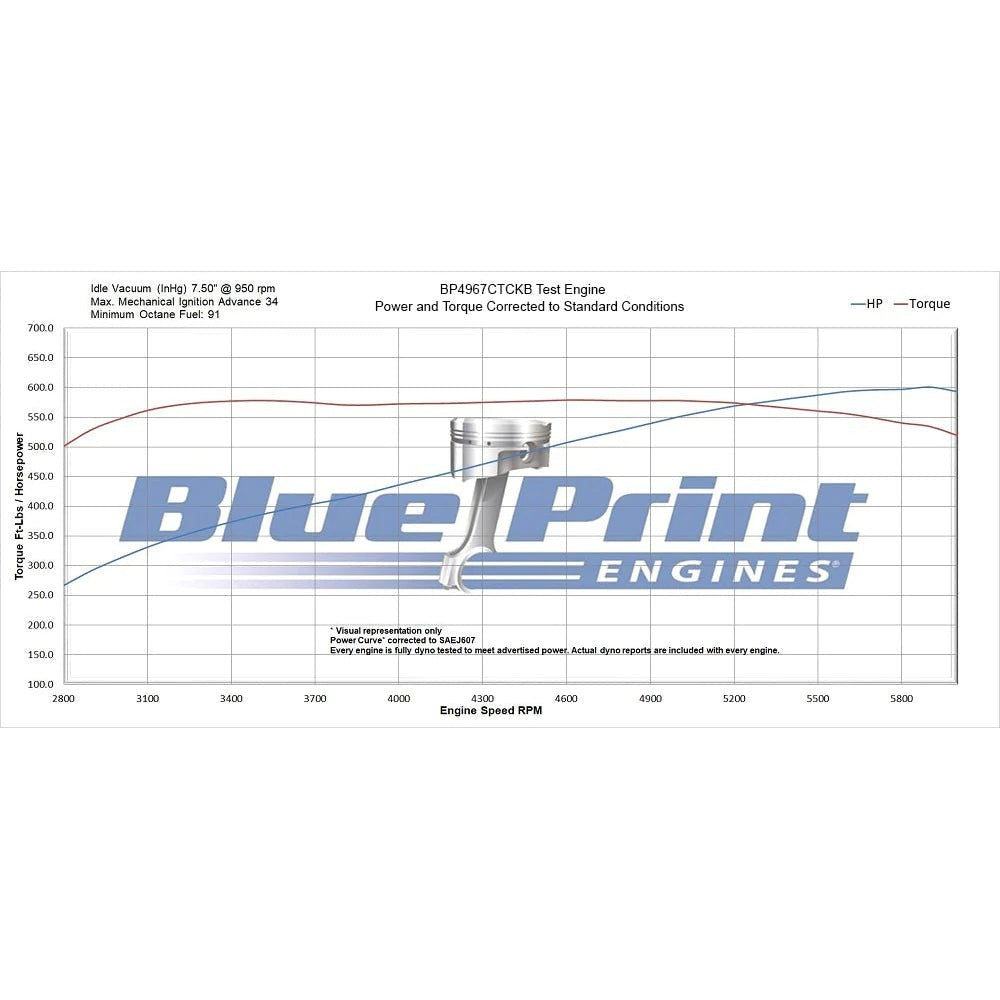

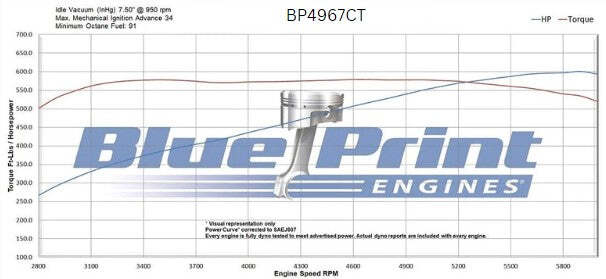

Your BluePrint engine was dyno-tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Part Number: BP4967CT
Fuel Delivery Type: Carbureted, 850 cfm **Not included**
Spark Plug: BPP7938 NGK 7938 BKR5E (.750 inch reach, 14mm thread, 5/8 hex, plug)
Spark Plug Gap: .035"
Harmonic Balancer: Weighted, 8" diameter
Flexplate/Flywheel: Weighted
Stall Converter: 2000-2400 rpm
Intake Manifold: Single plane, satin aluminum **Not Included**
Fuel Recommendation: 91 Octane
Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
Firing Order: 1,8,4,3,6,5,7,2
Recommended Break-in Oil: BPP710
Recommended Service Oil: BPP10W30
Recommended Oil Filter: BPP51061
Total Oil capacity with production oil pan and Correct BPP51061 Filter: 8 Quarts
Notes: New BluePrint block manufactured and machined in the USA
Click here to download a copy of the Installation Guide that came with your BluePrint engine.
WARRANTY:
BETTER THAN THE REST.
The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.
We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.
For a detailed overview of our warranty, click here.
DYNO PROMISE:
IT ALL COMES DOWN TO RESULTS.
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.
BRAGGING RIGHTS INCLUDED!
A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!
