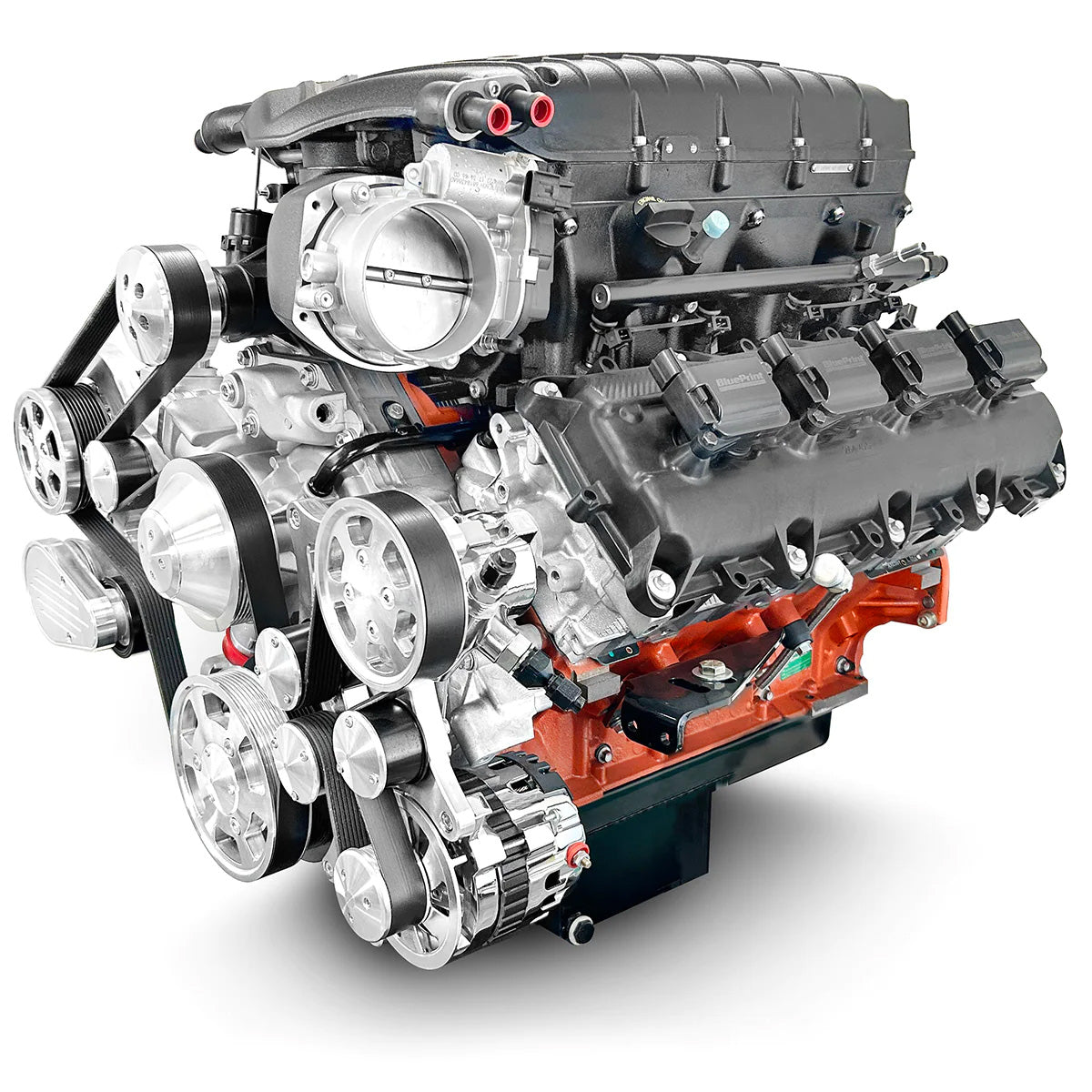

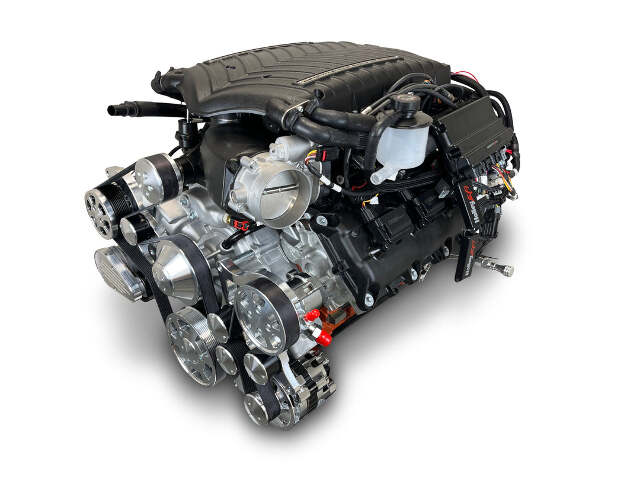

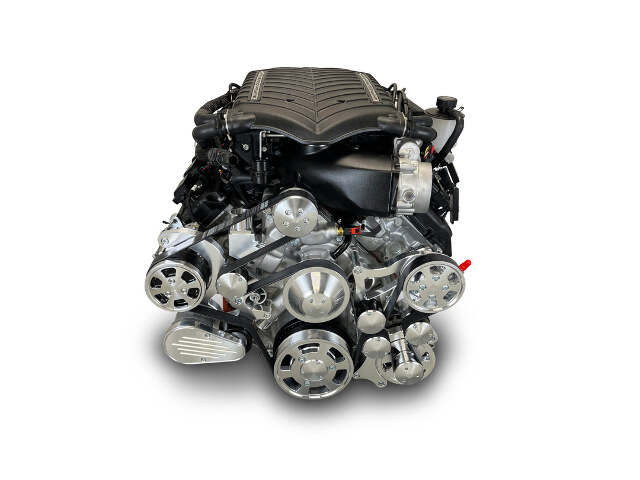

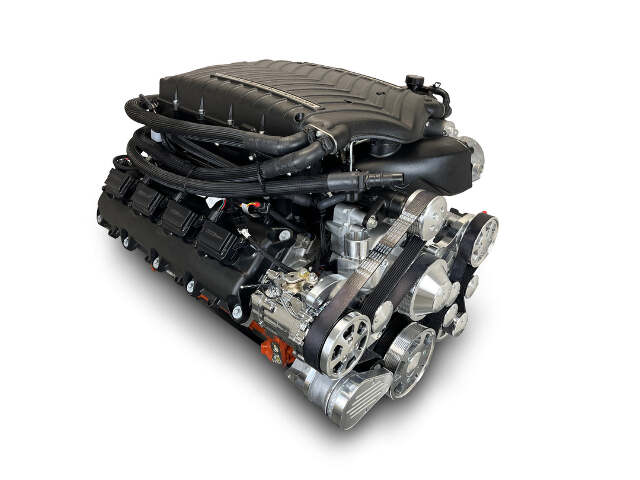

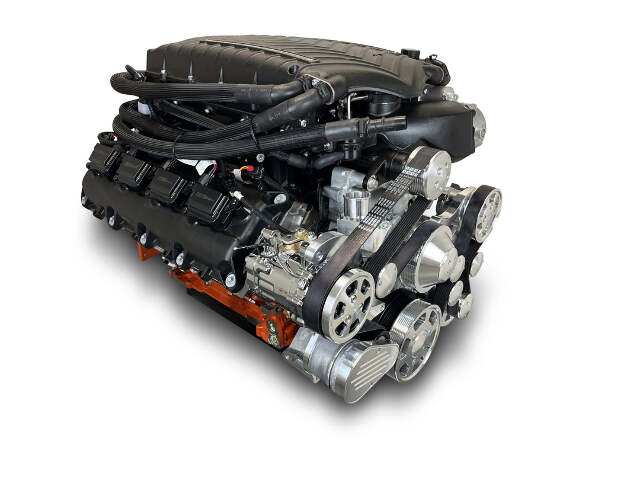

BluePrint Engines 426 ci Mopar Hemi Pro Series Engine Deluxe Dressed Supercharged w/ Pulleys and EFI PS426SCTK

BluePrint Engines 426 CI Mopar Hemi Supercharged EFI Engine

SKU: BPEPS426SCTK

Horsepower & Torque: 872 Horsepower / 764 FT. LBS. Torque

Cylinder Heads: Gen III Hemi Apache Aluminum Cylinder Heads

Compression Ratio: 10.48:1

Camshaft: Hydraulic Roller Cam - .610 Intake/ .611 Exhaust Lift and 231 Intake / 255 Exhaust Duration @.050-113° LSA

Pistons: Forged

Crankshaft: Forged Steel Crank - 4.050" Stroke and Forged 6.125" Connecting Rods

Fuel Recommendation: 91+ Octane

Overview:

This BluePrint Engines supercharged Gen III HEMI crate engine is a complete, high-performance package delivering an impressive 872 horsepower and 764 ft-lbs. of torque, built on a foundation of premium internals including a forged crank, forged pistons, and a hydraulic roller cam. Featuring Gen III HEMI Apache aluminum cylinder heads and topped with a Whipple 3.0L supercharger and Hellcat throttle body, this setup delivers instant boost and massive power with streetable manners. A Holley Terminator ECU controller kit with wiring harness manages the fuel and ignition systems for precise tuning and reliable operation. Supporting components like the supercharger coolant reservoir, harmonic balancer, spark plugs, coils, timing cover, valve covers, and muscle car-style mid-sump oil pan ensure the engine is ready for swap applications. A black front accessory drive system rounds out the build, featuring a water pump, Type II power steering pump with remote reservoir, 140-amp 1-wire alternator, and 7B10 peanut-style A/C compressor, making this a true turnkey solution for enthusiasts seeking modern supercharged HEMI performance in a clean, ready-to-install package.

Description:

• Horsepower and Torque: 872 Horsepower / 764 ft. lbs. Torque
• Compression Ratio: 10.48:1
• Gen III Hemi Apache Aluminum Cylinder Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• Engine Manufactured and Machined in the USA!
• NEW “BGE” Hellcat Engine Block
• 4-Bolt Main
• 4.090" Bore
• 1-Piece Rear Main Seal

Rotating Assembly:

• Forged Steel Crank
• 4.050" Stroke
• 6.125" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• Gen III Hemi Apache Aluminum Cylinder Heads
• 73cc Chamber
• 2.140" Intake / 1.650" Exhaust Valves

Cam Specs:

• Hydraulic Roller Cam
• .610 Intake / .611 Exhaust Lift
• 231 Intake / 255 Exhaust Duration
• @.050-113 Degree Lobe Separation

Ignition Timing:

• Controlled by ECU

Also Includes:

• Whipple 3.0L supercharger
• Supercharger Coolant Reservoir
• Hellcat Throttle Body
• Harmonic Balancer
• Muscle Car Style - Mid Sump Swap Oil Pan
• Spark plugs
• Coil
• Timing Cover
• Valve Covers

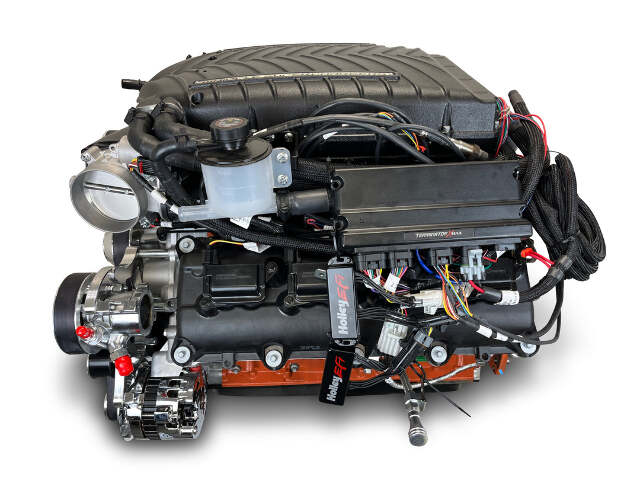

• Holley Terminator ECU Controller Kit and Wiring Harness

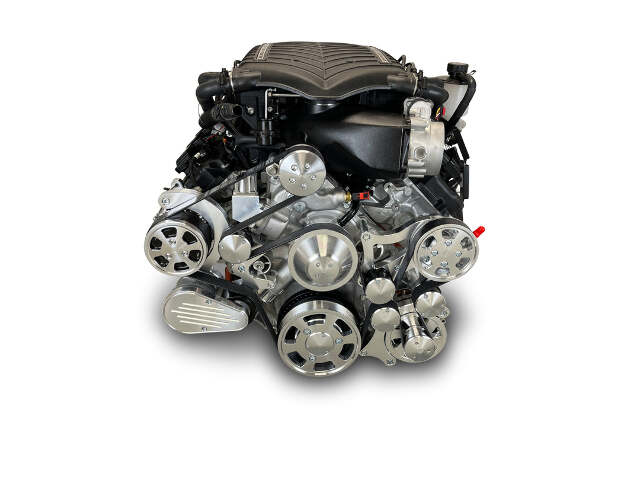

• Polished Front Accessory Drive
  • Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Style Air Conditioning Compressor

Notes:

• Features 2013+ 58X reluctor wheel
• 2009+ crankshaft spacing
• 2009+ car timing cover
• VVT locked out
• MDS – eliminated
