Description

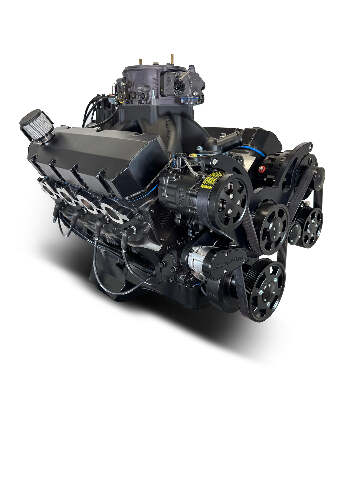

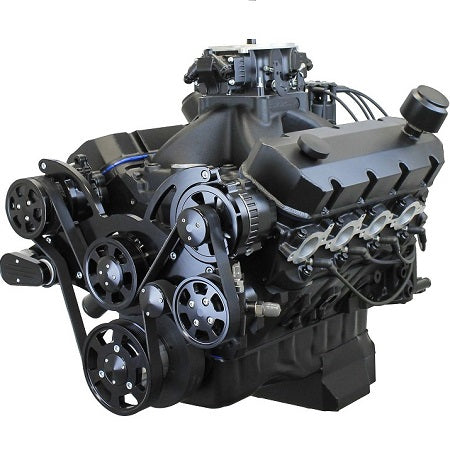

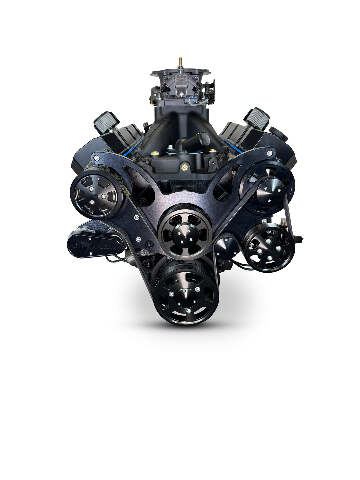

BluePrint Engines Blackout 632 ci Big Block GM Pro Series Engine - Dressed Long Block w/ carb and Black pulley kit

PN. PS6320CTCKB

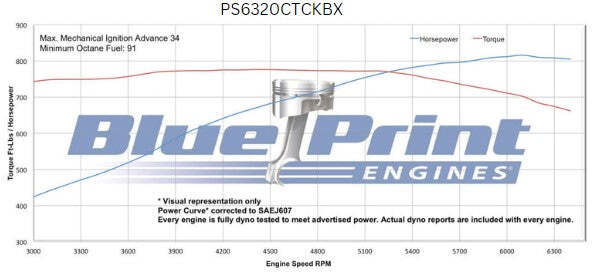

Horsepower & Torque: 815 Horsepower / 775 FT. LBS. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 11:1

Camshaft: Hydraulic Roller Cam - .698 Intake / .698 Exhaust Lift and 272 Intake / 282 Exhaust Duration @ .050 - 110° LSA

Pistons: Forged

Crankshaft: Steel Crank - 4.750" Stroke and Forged 6.635" Rods

Fuel Recommendation: 91+ Octane Approved

Description:

  • Horsepower & Torque: 815 Horsepower / 775 FT LBS
  • Compression Ratio: 11.0:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Forged Crank
  • BluePrint Engines Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Manufactured and Machined in the USA!
  • Tall Deck (Cylinder Deck is Approx .400 taller / Wider than OEM Block)
  • Mech Fuel Pump Provision: Yes
  • 1-Piece Rear Main Seal
  • 4-Bolt Main
  • 4.600" Bore

Rotating Assembly:

  • BluePrint Forged Crankshaft
  • 4.750" Stroke
  • Forged H-beam 6.635" Connecting Rods
  • Forged Pistons
  • Internally Balanced Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads
  • 119cc Chamber
  • 2.30" Intake / 1.88" Exhaust Valves
  • 358cc Intake / 125cc Exhaust Runners
  • Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting.

Cam Specs:

  • Hydraulic Roller
  • .698 Intake / .698 Exhaust Lift
  • 272 Intake / 282 Exhaust Duration
  • @.050-110 Degree Lobe Separation

Also Includes:

  • Front Accessory Drive with Alternator, Power Steering Pump, A/C Compressor, and Water Pump
  • Pro Series Ready Run Distributor
  • Holley GEN III Ultra Dominator Carburetor
  • Harmonic Balancer
  • Spark Plugs
  • Spark Plug Wires
  • Intake Manifold
  • Timing Cover
  • Valve Covers
  • Oil Pan

Notes:

  • Not for use in pollution-controlled vehicles.
  • This engine features .300 raised exhaust ports and .400 deck height increase over OEM.
  • Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.

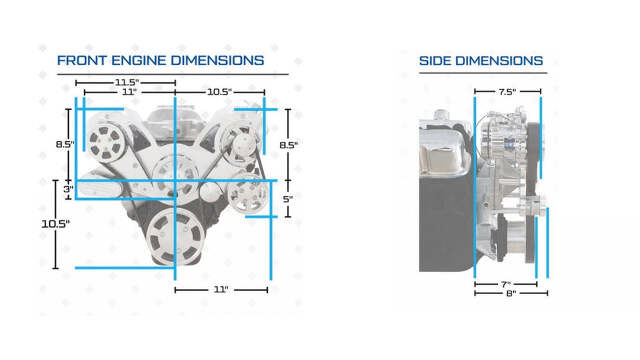

  • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
