Description

BluePrint Motorsports GM Big Block Compatible 632 c.i. Pro Series Engine - 815 Horsepower - Blackout Reaper Edition Base Dressed - Fuel Injected

SKU: PS6320CTFX

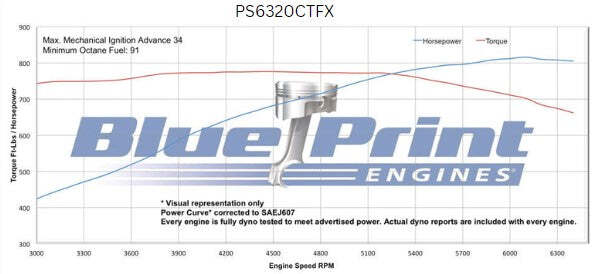

Horsepower & Torque: 815 Horsepower / 800 ft. lbs. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 11:1

Camshaft: Hydraulic Roller Cam - .698 Intake / .698 Exhaust Lift and 272 Intake / 282 Exhaust Duration @ .050 - 110° LSA

Pistons: Forged

Crankshaft: Steel Crank - 4.750" Stroke and Forged 6.635" Rods

Requires Race Fuel of 100+ Octane

**BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty race applications. If this engine is used in a street application our normal 30 month, 50,000-mile warranty applies, if used in sanctioned racing no warranty, expressed, or implied.

*   Blackout Edition

Overview:

Meet the monster that’s powerful enough to dominate the track yet tame enough to rule the streets. Packing a jaw-dropping 815 horsepower and 800 ft-lbs of torque, this 632 cubic inch Pro Series BBC compatible engine is the ultimate blend of raw performance and street-friendly manners. It features a streetable hydraulic roller camshaft, forged pistons, H-beam rods, and a steel crankshaft all anchored in a BluePrint high-strength cast iron block, proudly manufactured and machined in the USA. Topped off with BluePrint aluminum cylinder heads, this is the heart your street beast deserves.

Description:

  • Horsepower & Torque: 815 Horsepower / 775 FT. LBS. Torque
  • Compression Ratio: 11.0:1
  • BluePrint Engines Aluminum Heads
  • BluePrint Engines Hydraulic Roller Cam
  • BluePrint Engines Forged Crank
  • BluePrint Engines Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Manufactured and Machined in the USA!
  • Tall Deck (Cylinder Deck is Approx .400 taller / Wider than OEM Block)
  • Mech Fuel Pump Provision: Yes
  • 1-Piece Rear Main Seal
  • 4-Bolt Main
  • 4.600" Bore

Rotating Assembly:

  • BluePrint Forged Crankshaft
  • 4.750" Stroke
  • Forged H-beam 6.635" Connecting Rods
  • Forged Pistons
  • Internally Balanced Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads
  • 119cc Chamber
  • 2.30" Intake / 1.88" Exhaust Valves
  • 358cc Intake / 125cc Exhaust Runners
  • Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting

Cam Specs:

  • Hydraulic Roller
  • .698 Intake / .698 Exhaust Lift
  • 272 Intake / 282 Exhaust Duration
  • @.050-110 Degree Lobe Separation

Also Includes:

  • Thermostat and Thermostat Housing
  • Pro Billet Distributor
  • Holley Sniper 4500 EFI System
  • Harmonic Balancer
  • Spark Plugs
  • Spark Plug Wires
  • Intake Manifold
  • Timing Cover
  • Valve Covers
  • Oil Pan

Notes:

  • This engine is built and designed to run on 92 octane pump gas for street use only. For racing or extended wide-open throttle use, race fuel (100+ octane) is required.

  • BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied.
