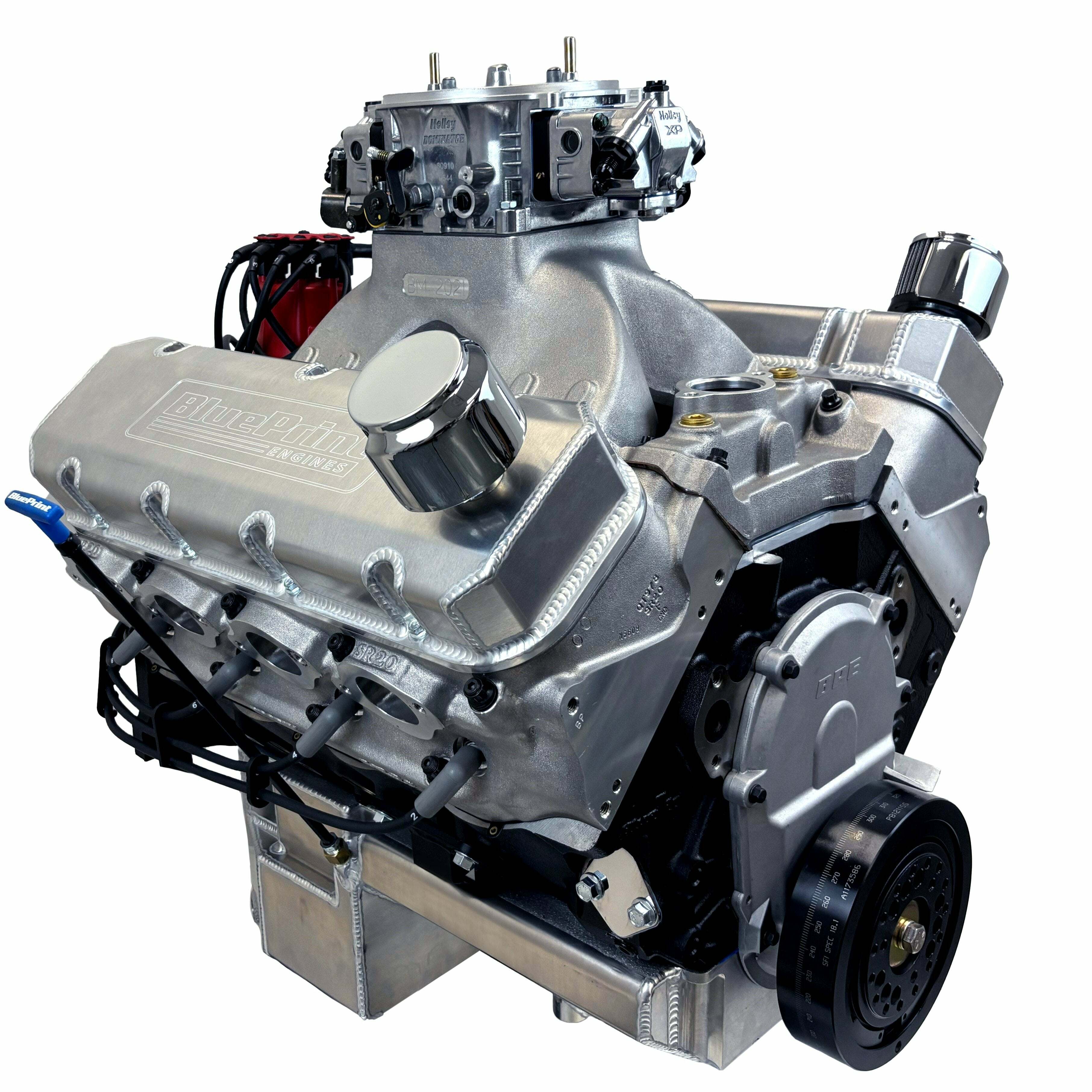

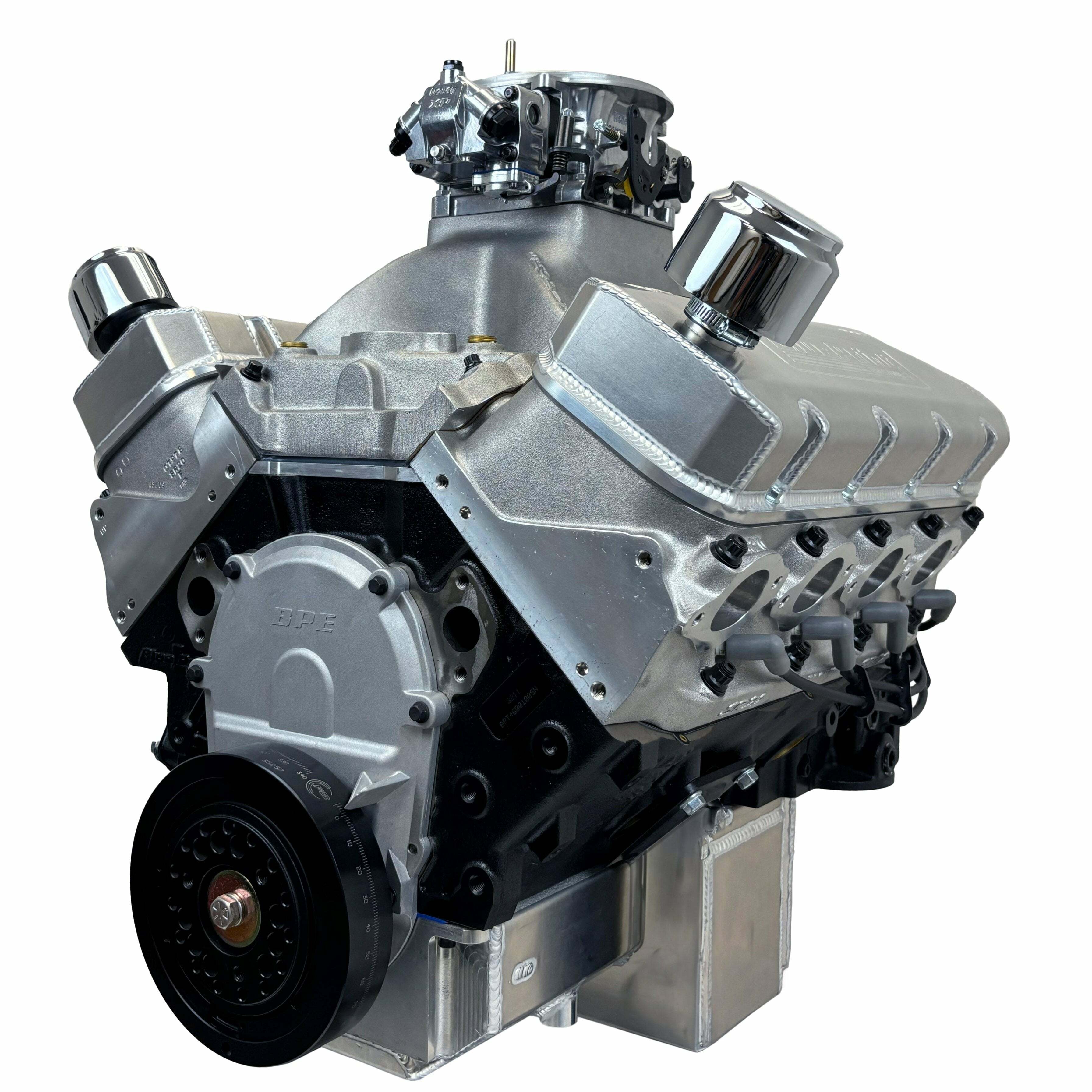

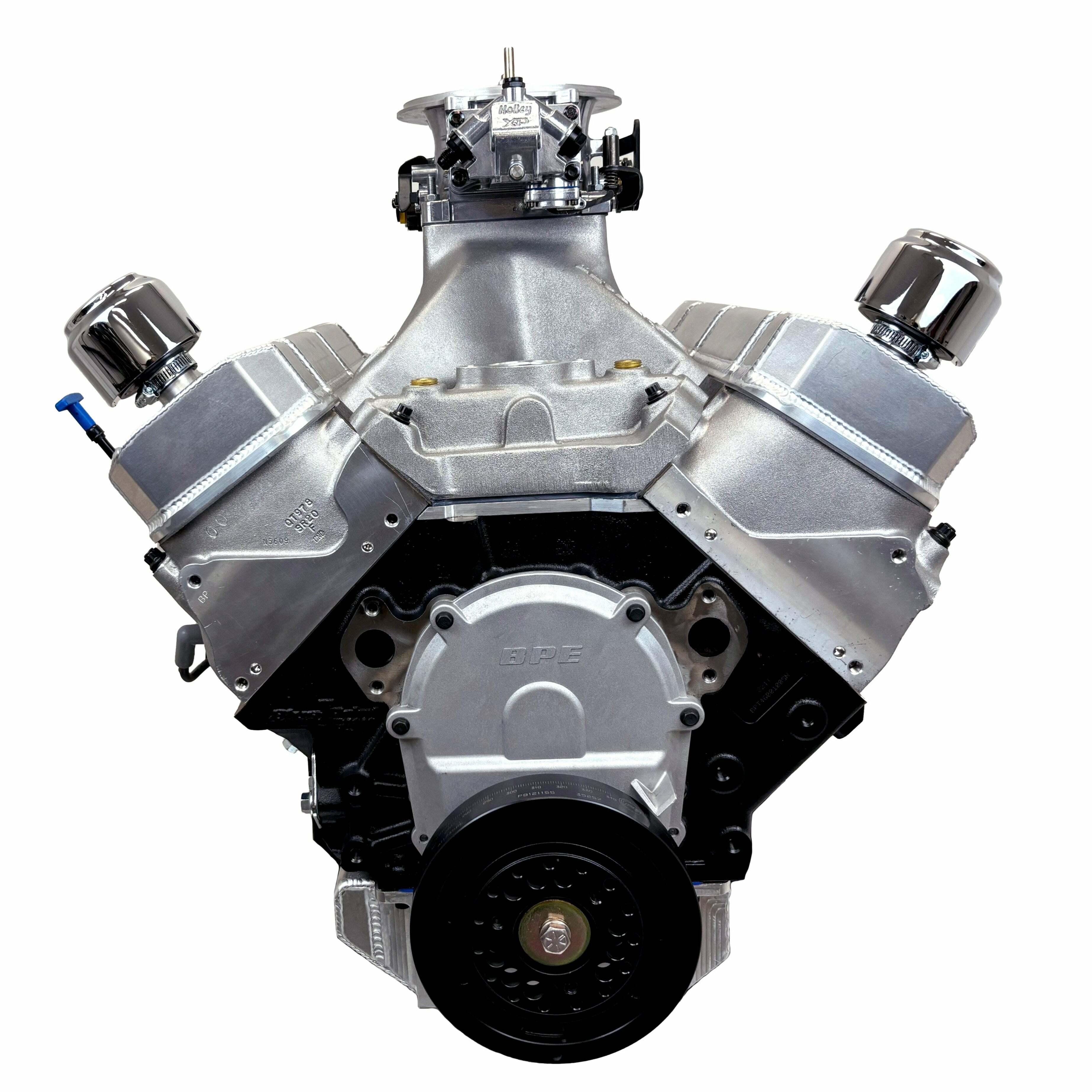

BluePrint Engines 632 ci Big Block GM Style Proseries Engine - Dressed 1015 HP Long Block w/ Carb
SKU: BPEPS6321CTC
Horsepower & Torque: 1015 Horsepower / 830 FT. LBS. Torque
Cylinder Heads: Brodix SR20 CNC Ported Heads
Compression Ratio: 10.65:1
Camshaft: Solid Roller Cam - .873 Intake / .861 Exhaust Lift - .293 Intake / .304 Exhaust Duration- @.050-115 Degree Lobe Separation
Pistons: Forged
Crankshaft: Forged Steel Crank - 4.750" Stroke and Forged 6.635" Connecting Rods
Description:
- Horsepower & Torque: 1015 Horsepower / 830 FT. LBS. Torque
- Brodix SR20 CNC Ported Heads
- Compression Ratio: 10.65:1
- Solid Roller Cam
- Pistons: Forged
- Forged Steel Crank
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.600" Bore
-
1-Piece Rear Main Seal
Rotating Assembly:
- Forged Steel Crank
- 4.750" Stroke
- 6.635" Connecting Rods
- Forged Pistons
- Internally Balanced Font and Rear
Cylinder Heads:
- Brodix SR20 CNC Ported Heads
- 95cc Chamber
- 440 Intake Runner
- 2.400" Intake / 1.800" Exhaust Valves
Cam Specs:
- Solid Roller Cam
- .873 Intake / .861 Exhaust Lift
- .293 Intake / .304 Exhaust Duration
- @.050-115 Degree Lobe Separation
Ignition Timing:
Also Includes:
- SR20 Head Super Victor II Intake Manifold
- 1475cfm Holley Dominator Carburetor
- MSD Pro Billet Distributor
-
SFI Harmonic Balancer
- Spark Plugs & Wires
- Timing Cover
- Moroso Aluminum Oil Pan
Notes:
- Not for use in pollution-controlled vehicles.
ENGINE ACCESSORY SPECIFICATIONS:
Your BluePrint engine was dyno-tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
Fuel Delivery Type: Carbureted
Spark Plug: NGK4644/BKR7E
Spark Plug Gap: .035"
Harmonic Balancer: Non-Weighted
Flexplate/ Flywheel: Non-Weighted
Stall Converter: 3800-4200 RPM
Intake Manifold: SR20 Head Super Victor II Intake Manifold
Fuel Recommendation: 93 Octane
Timing: Controlled by ECU
Firing Order: 1-8-7-3-6-5-4-2
Recommended Break-in Oil: BPP710
Recommended Service Oil: 20W50 Oil
Recommended Oil Filter: BPP51061
Total Oil Capacity with Production Oil Filter: 8 QT.
Click here to download a copy of the Installation Guide that came with your BluePrint engine.
WARRANTY:
BETTER THAN THE REST.
The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.
We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.
For a detailed overview of our warranty, click here.
DYNO PROMISE:
IT ALL COMES DOWN TO RESULTS.
We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.
BRAGGING RIGHTS INCLUDED!
A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!
