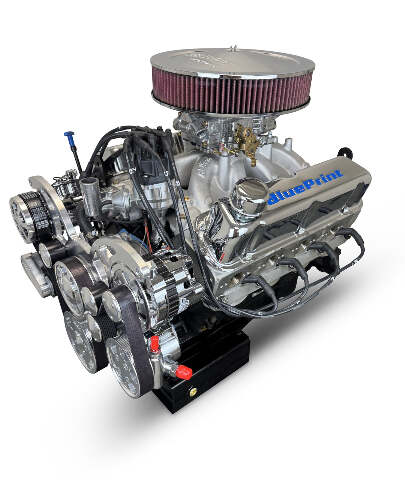

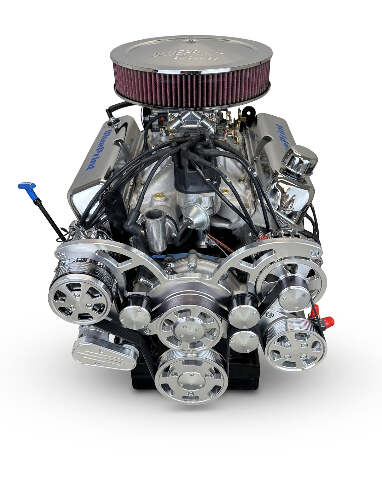

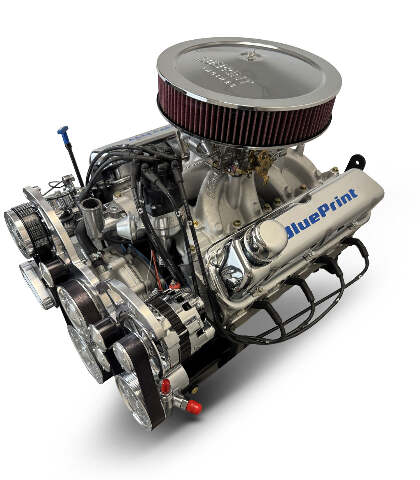

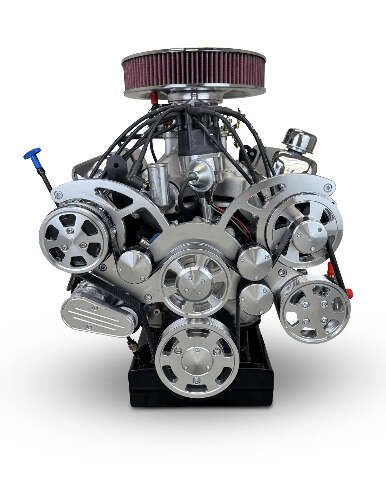

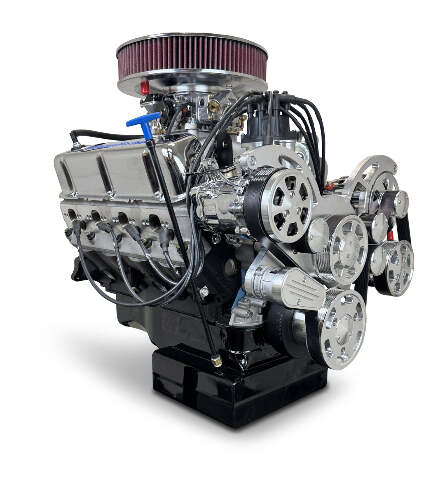

BluePrint Engines 427ci Small Block Ford Compatible Engine Deluxe Dressed
SKU: BPEPSF4271CTCK
Horsepower & Torque: 541 Horsepower / 519 FT. LBS. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10:1
Camshaft: Hydraulic Roller Cam - .608 Intake / .608 Exhaust and 248 Intake / 258 Exhaust Duration @ .050 – 114 LSA
Pistons: Forged
Crankshaft: Forged Crank - 4.000" Stroke and Forged 6.250" Rods
Fuel Recommendation: 91+ Octane
Overview:
This high-output 427 c.i. Small Block Ford–compatible BluePrint Engine delivers 541 horsepower and 519 lb-ft of torque, making it an excellent choice for aggressive street builds, restomods, and performance enthusiasts seeking a reliable powerplant with serious horsepower and torque. Built around a 9.5-inch deck height Windsor-based BluePrint high-strength cast iron block featuring a 4.125-inch bore, 4-bolt main caps, one-piece rear main seal, and a forged rotating assembly. It is topped with CNC-ported BluePrint Engines aluminum cylinder heads and a matched hydraulic roller camshaft, providing exceptional airflow and a broad, responsive powerband. With a 10.0:1 compression ratio, this engine is optimized for 91+ octane pump gas, delivering impressive performance without sacrificing drivability. Backed by BluePrint Engines’ industry-leading 30-month / 50,000-mile warranty.
The 427ci Small Block Ford achieved modern legend status through its use in the industry’s top Cobra and Cobra replica builders, where it became known for producing massive power in lightweight chassis. These engines helped redefine the capabilities of the Windsor-based platform, particularly in high-end Cobra replicas and continuation-style builds. Weighing significantly less than a traditional big block, the 427 stroker enhances front-end balance, handling, and braking, making it a proven choice for performance-focused applications.
Description:
- Horsepower & Torque: 541 Horsepower / 519 FT LBS
- Compression Ratio: 10.0:1
- Aluminum Heads
- Hydraulic Roller Cam
- Forged Crank
- Forged Pistons
Block:
- NEW BluePrint Engines' High Strength Cast Iron Block
- 4-Bolt Main
- 4.125" Bore
- 1-Piece Rear Main Seal
Rotating Assembly:
- New Forged Crankshaft
- 4.000" Stroke
- Forged 6.2" Connecting Rods
- Forged Pistons
- Internal Engine Balance
Cylinder Heads:
- Aluminum Cylinder Heads
- 2.08" Intake/1.60" Exhaust Valves
- 205cc Intake/70cc Exhaust Runners
Cam Specs:
- Cam Type: Roller
- .608 Intake .608 Exhaust
- 248 Intake / 258 Exhaust duration
- @ .050 - 114-degree lobe separation
Also Includes:
- 870cfm Carburetor
- Single Plane Intake Manifold
- Pro Series Distributor
- Valve Covers, Oil Pan and Timing Cover
- Harmonic Balancer
- Spark Plugs
- Polished Front Accessory Drive
- Driver Side Standard Rotation Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Air Conditioning Compressor
Notes:
- The Front Accessory Drive on this engine fits many vehicles; however, it is the customer's responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
