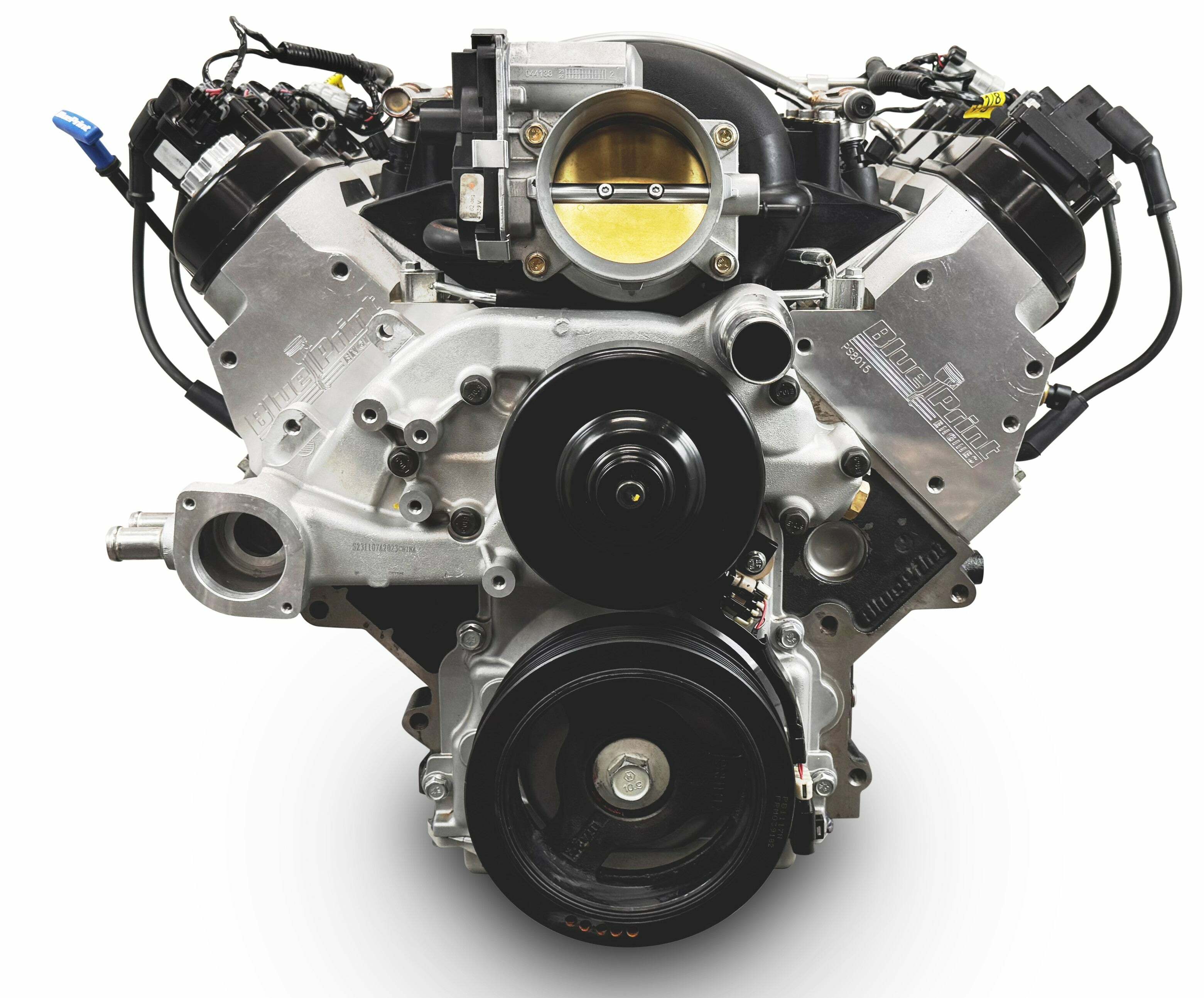

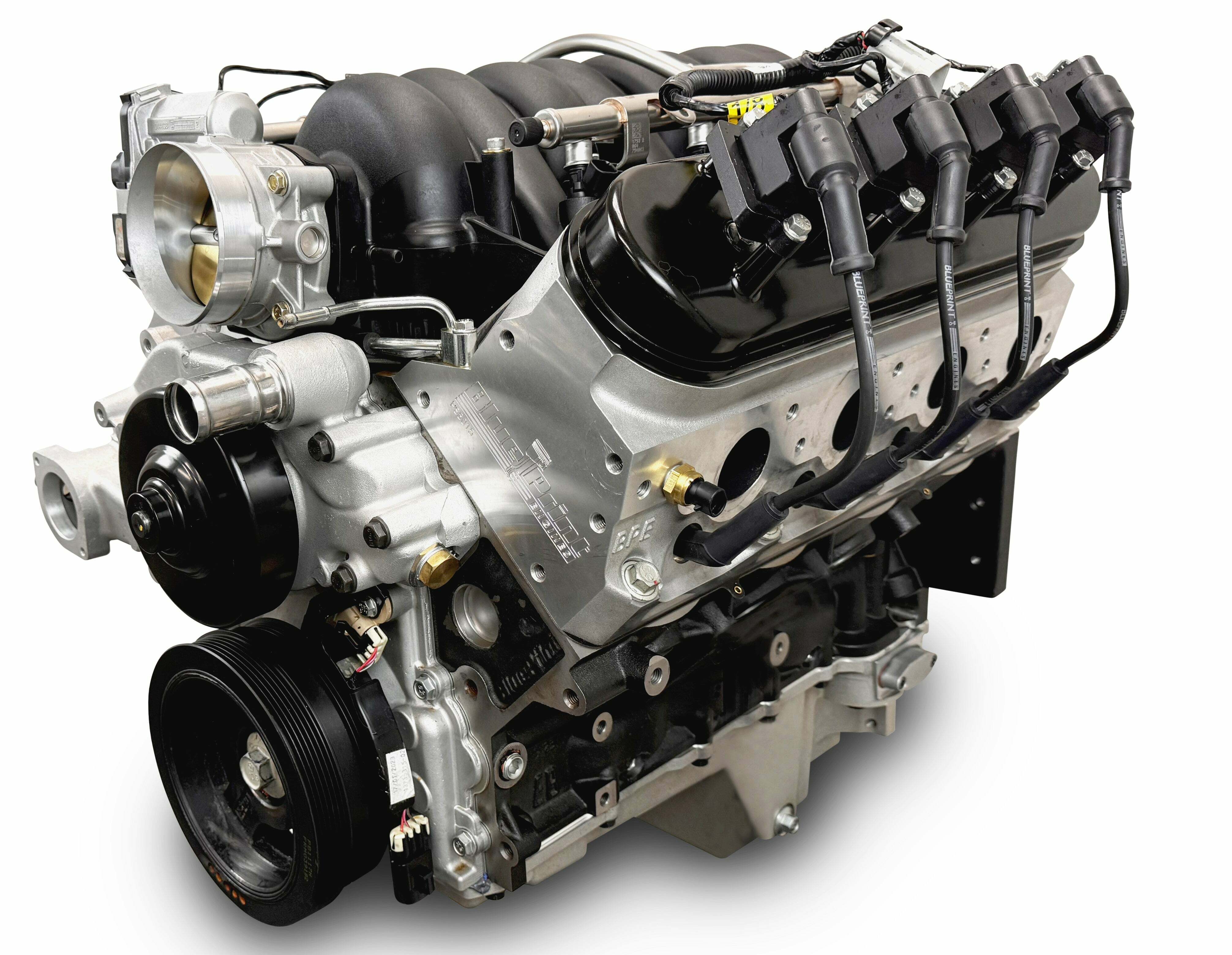

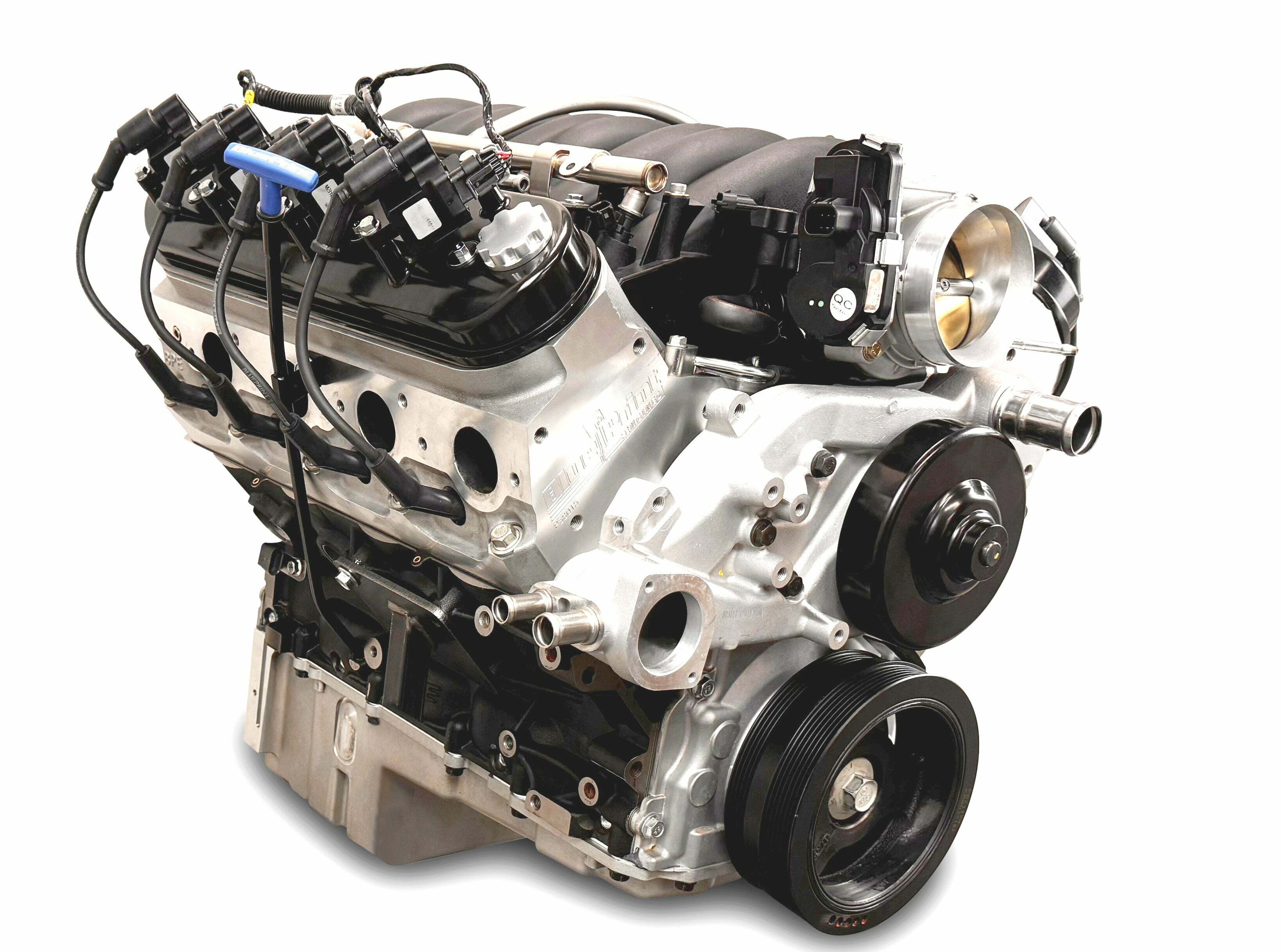

BluePrint Engines 376 ci GM LS style Proseries - 530 HORSEPOWER - Dressed Engine

PSLS37630CTF

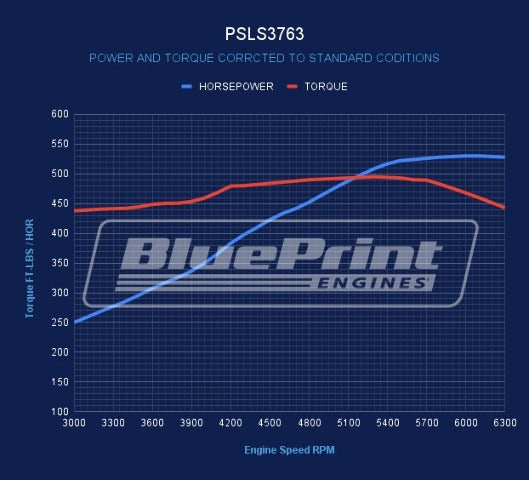

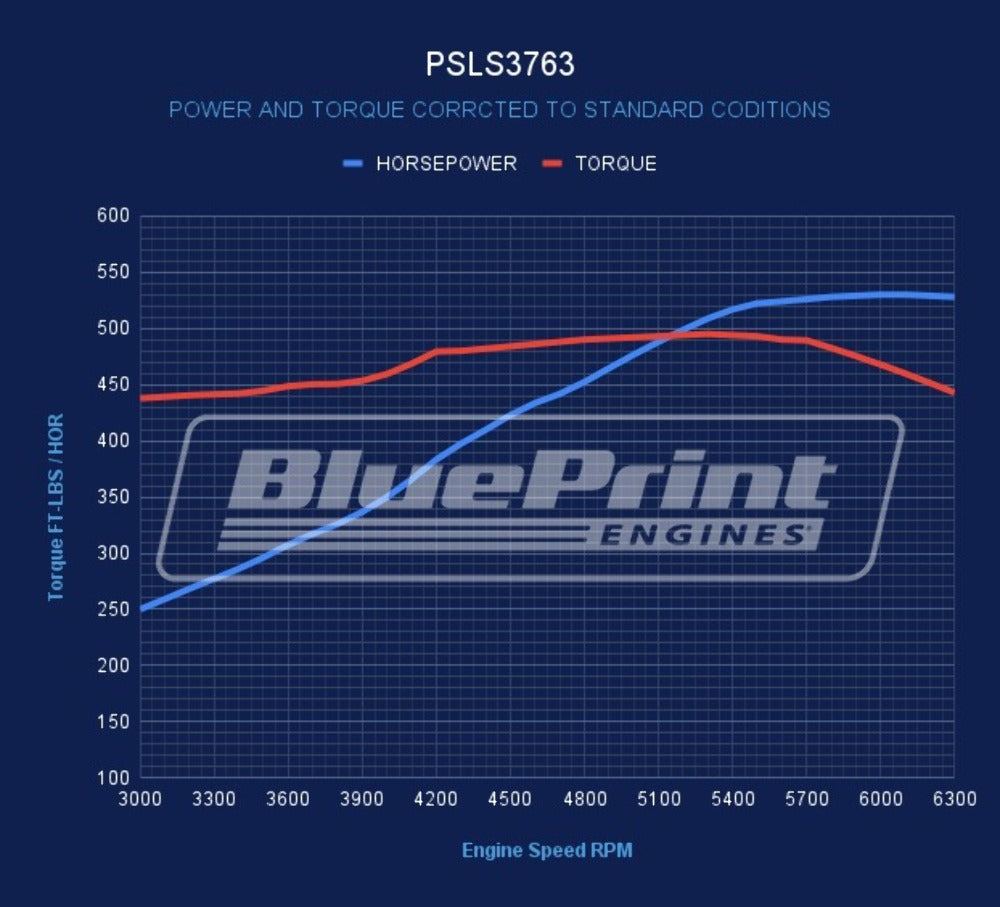

Horsepower & Torque: 530 Horsepower / 495 FT. LBS. Torque

Cylinder Heads: BluePrint Engines LS3 Aluminum Cylinder Heads

Compression Ratio: 10.7:1

Camshaft: Hydraulic Roller Cam - .612 Intake / .585 Exhaust Lift and 225 Intake / 238 Exhaust Duration @ .050 - 113° LSA - Three Bolt Cam

Pistons: Hypereutectic

Crankshaft: Nodular Iron Crank - 3.622" Stroke and Forged 6.125" Rods

Description:

• Horsepower & Torque: 530 Horsepower / 495 FT LBS
• Compression Ratio: 10.7:1
• Aluminum Heads
• Hydraulic Roller Cam
• Nodular Iron Crankshaft
• Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron 6.2L Block
• Increased Deck Thickness and Strength Webbing
• Extended Cylinder Skirt
• Priority Main Oiling
• 4.0662" Bore
• 6-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design
• Utilizes OEM LS3 Front and Rear Covers.

Rotating Assembly:

• Nodular Iron Crankshaft
• 3.622" Stroke
• 6.125" Connecting Rods w/ 150,000 PSI Bolts
• Hypereutectic Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8015
• 69cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

Cam Specs:

• Cam Type: Hydraulic Roller Cam
• .612 Intake / .585 Exhaust Lift
• 225 Intake / 238 Exhaust Duration
• @.050-113 Degree Lobe Separation

Also Includes:

• LS Swap Oil Pan
• DBW Throttle Body
• GM Plastic Intake Manifold
• Fuel Injectors and Rail
• Coil Packs
• Spark Plugs and Wires
• Water Pump
• Harmonic Balancer

Notes:

• Engine is not shipped with Engine controller kit. Must purchase separately for your application. Controller kit can be found by part number BPPLS530
• BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.

Your BluePrint engine was dyno tested with the parts and specifications listed below.  If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

Part Number: PSLS37630CTF

Fuel Delivery Type: Fuel Injection

Spark Plug: Champion 3015

Spark Plug Gap: .040"

Harmonic Balancer: Non Weighted

Flexplate/Flywheel: Non Weighted

Stall Converter: 2200+

Intake Manifold: N/A

Fuel Recommendation: 91 Octane

Timing (Initial/Total Advance):

Firing Order: 1,8,7,2,6,5,4,3

Notes: Recommended break in oil for your BluePrint Crate Engine: BPP710

Engine features a 58x reluctor wheel and 4x cam sensor. Knock sensor provision located on side of block. Cam sensor located in timing cover. utilizes EV6 type injector

Click here to download a copy of the Installation Guide that came with your BluePrint engine.

WARRANTY:
BETTER THAN THE REST.

The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.

We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.

For a detailed overview of our warranty, click here.

DYNO PROMISE:
IT ALL COMES DOWN TO RESULTS.

We make sure we hit our target horsepower and proper torque with every crate engine. We use an advanced computerized balancer to get our rotating assemblies within two grams, ensuring silky smooth power over the entire RPM range. That's precisely why our engines sound and run better than our competitors.

BRAGGING RIGHTS INCLUDED!

A comprehensive, dyno-generated printout showing these critical specs will accompany your delivered engine. No more guessing or wondering what your installed engine's real-world peak horsepower and torque ratings actually are. Any doubters in the crowd? Simply flash 'em your dyno results!
