Zone Offroad 2015-2022 Colorado/Canyon 5.5in Suspension
Suspension System PN. ZONC39N
Features:
- Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance
- Heavy-duty differential skid slate improves offroad protection
- High-strength, 1/4 steel construction crossmembers correct lower control arm geometry
- High-strength, replacement steering knuckles improve strength while correcting steering angles to maintain ESC system compliance
- Multi-point differential relocation brackets secure front differential for improved CV operating angles
- Rear lift block and longer u-bolts for easy installation and level stance

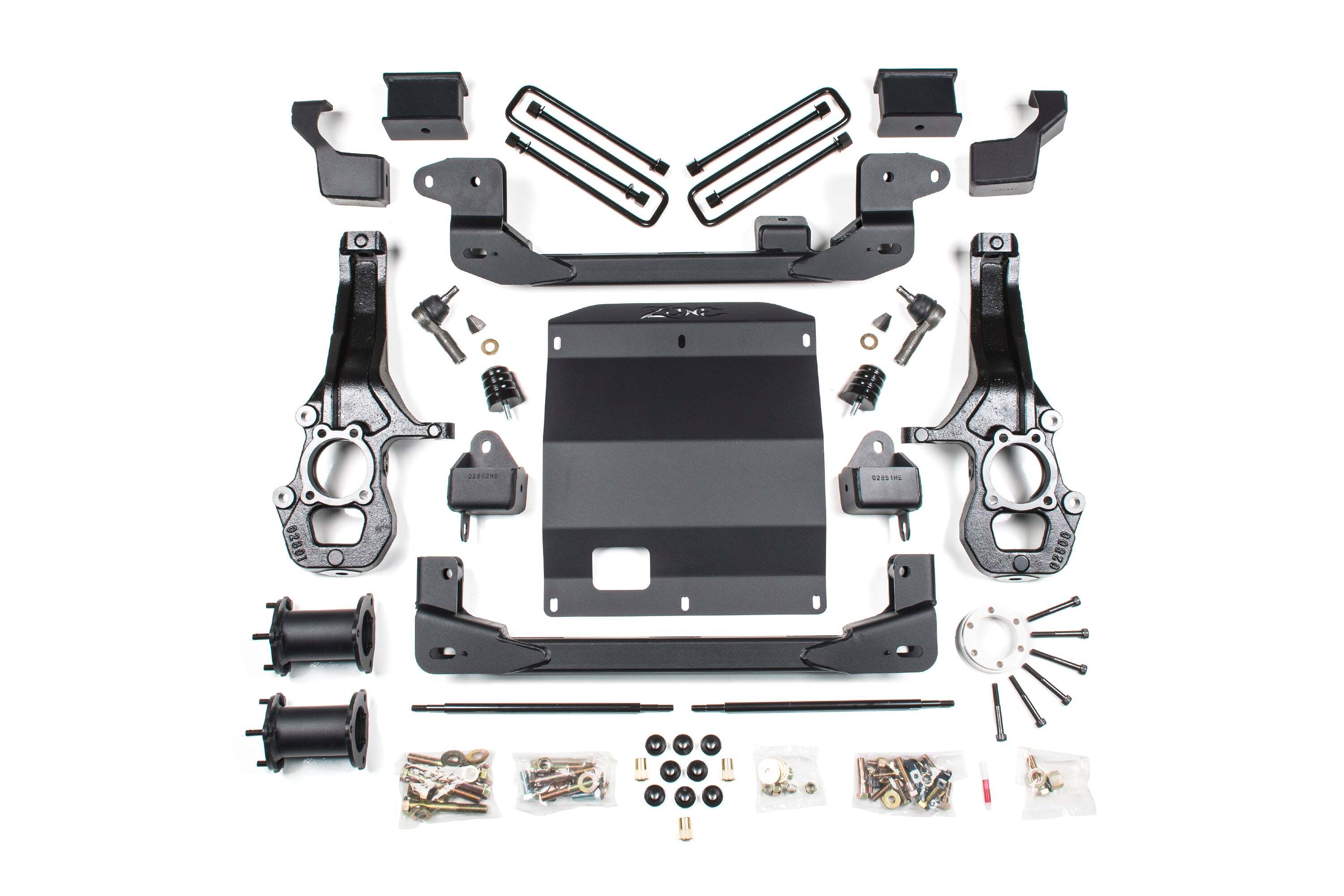

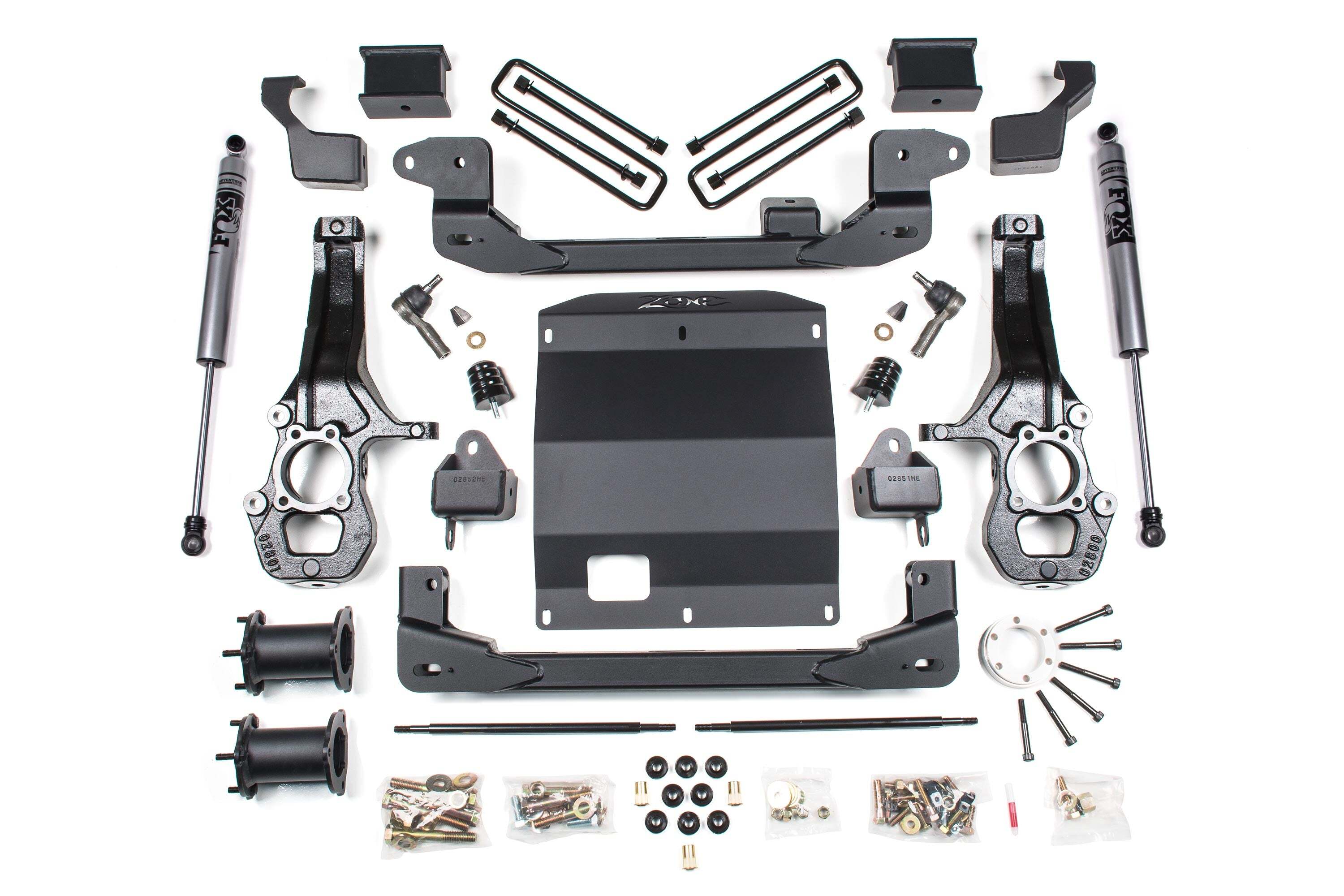

To properly lift the Colorado/Canyon suspension 5.5, we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers. Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning. A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together. Factory struts are retained and relocated with top spacers to gain a full 5.5 of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel. In the rear, a new block and U-bolt kit provided 4 of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.
