Zone Offroad Zone 3.5 Adventure Series Lift Kit

Suspension System PN. ZONC47F

• High strength UCAs are cast, ductile iron and specially designed with an indexed ball joint cup to correct ball joint operating angle for more suspension travel
• Utilizes a combination top-mount and preload strut spacers to correctly lift vehicle
• Retain factory ride quality without over extending suspension/drivelines at full suspension droop
• Maintains ride and handling characteristics with clearance for larger tires
• 2 rear lift blocks and heavy duty u-bolts to level the stance
• Nitro series gas or FOX 2.0 adventure series gas shocks to improve performance
• Optional Steering Stops included for larger wheel/tire combinations

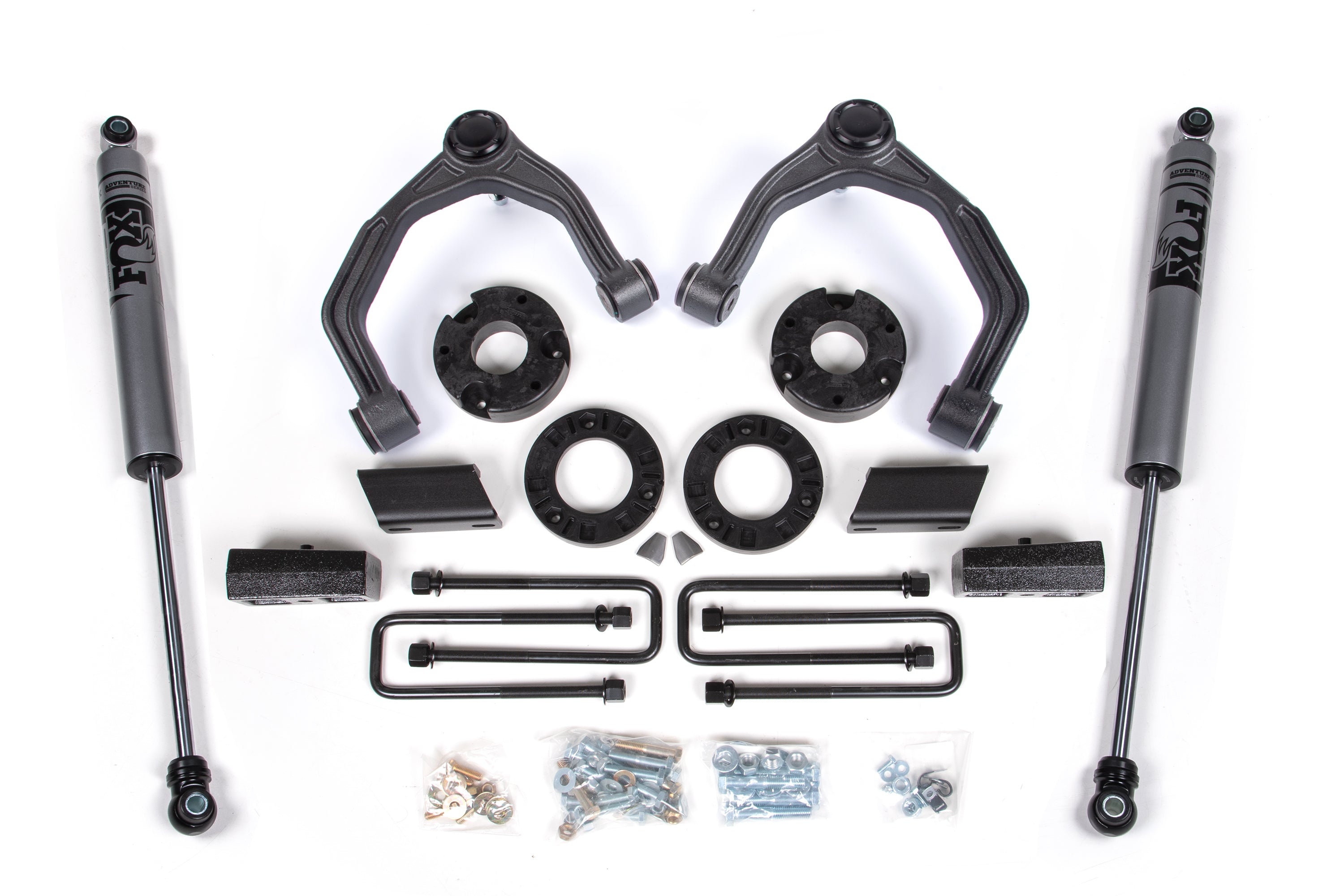

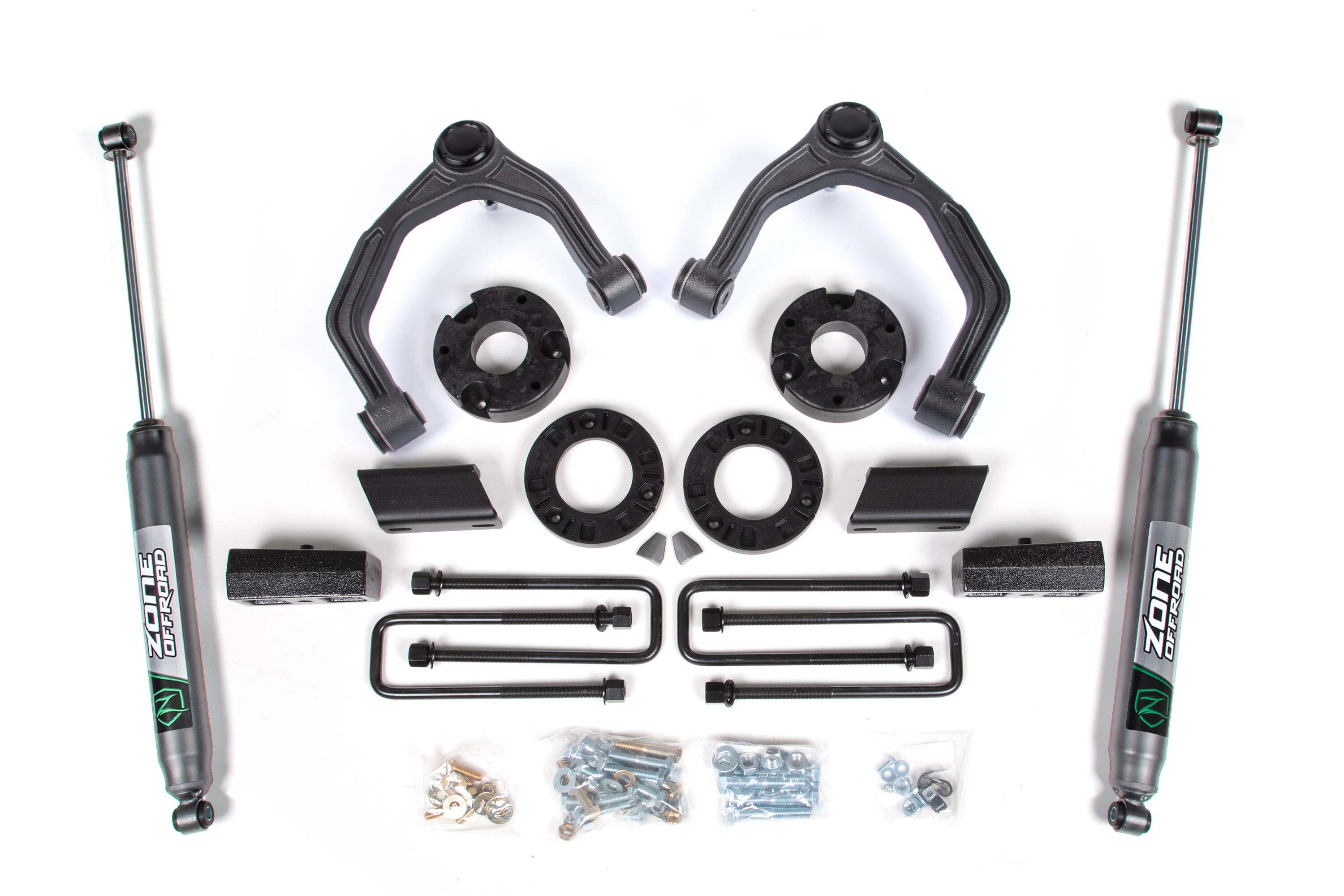

More than a leveling kit, this 3.5 Adventure Series kit takes advantage of Adventure Series upper control arms to offer improved performance and off-road capability with clearance for up to 35 tires. These high strength UCAs allow for increased suspension travel, improved strength and durability, and easy maintenance. Lift is provided by a 2-piece, combination top-mount and preload strut spacers design to provide a full 3.5 of lift without overextending the suspension at full droop (as is the case with kits using just a top mounted spacer). Optional weld-in steering stops are supplied allowing clearance for up to 35 tires. In the rear of this kit, a cast 2 lift block lifts and levels.
