Fleece Performance Auxiliary Heated Fuel Filter Kit for 2003-2018 Dodge Ram Cummins

FPE-CUMM-HFFBA-0318

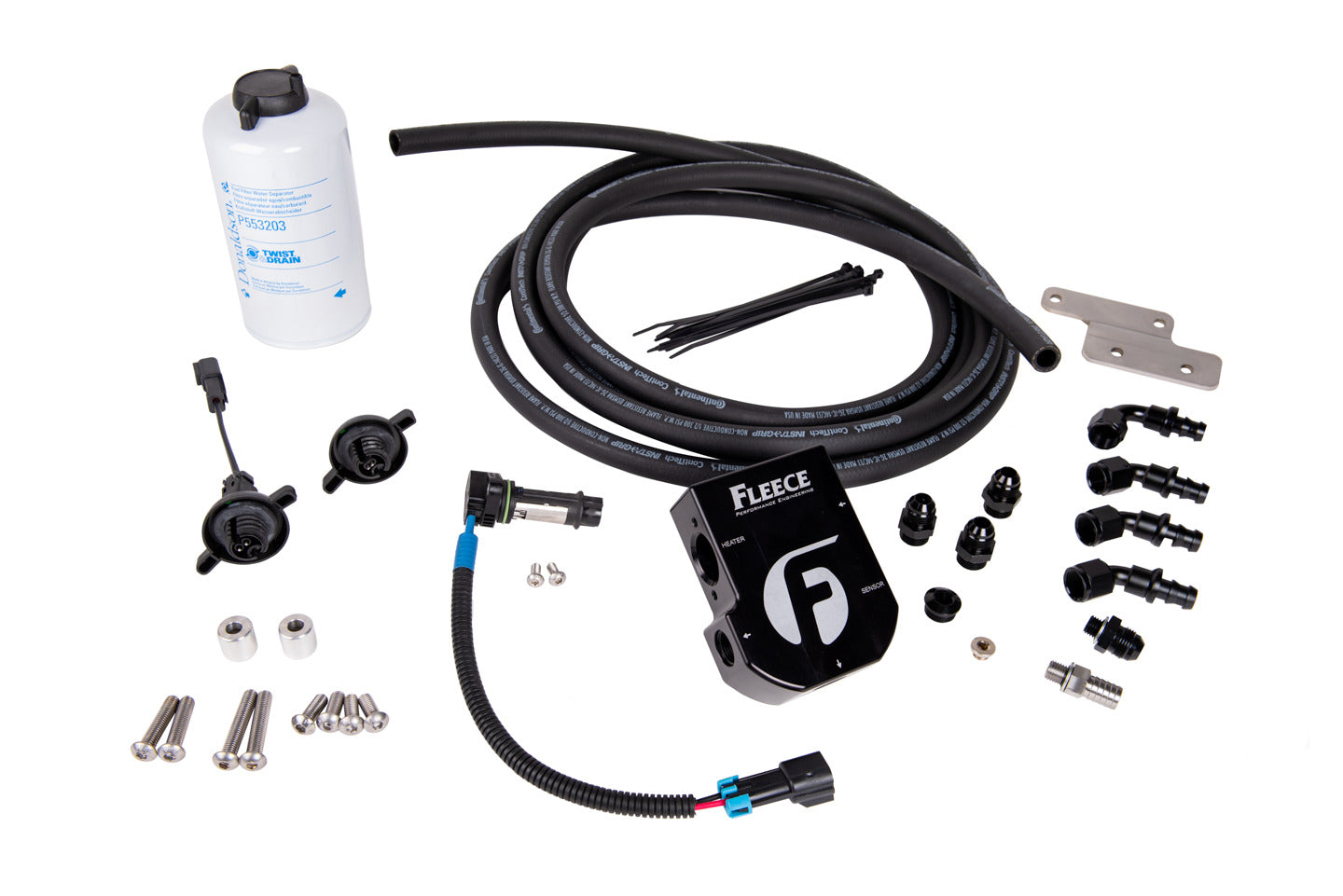

Introducing our all-new full featured auxiliary fuel filter kit for the 2003-2018 Dodge Cummins. This kit builds off our standard auxiliary kit with the addition of an integral high-flow fuel heating element and Water-In-Fuel (WIF) sensor. The kit includes everything you need to properly route, plumb and filter fuel for your Cummins engine from a Fleece Performance lift pump to the injection pump. Our kit improves accessibility to the fuel filter as well as reduces your ongoing maintenance cost with a lower cost Donaldson filter. Application notes: A Fleece Performance fuel filter delete is required for use with this product and must already be installed or purchased separately. This kit does not include a quick disconnect fitting to adapt to the OE lift pump. If you are running this kit with a stock OE sending unit on the fuel tank use P/N: FPE-QUCON-OE-38to allow for an AN connection to the stock quick disconnect style fitting. Kit includes: Fuel filter base with integral heater and mounting hardware Donaldson 3 micron fuel filter and water separator Push Lock hose and all necessary AN and barb fittings CP3 Feed fittings for 5.9L and 6.7L CP3 pumps Water-In-Fuel (WIF) sensor and adaptation harness Fuel heater specifications: Temperature switching points: ON: 28.4F +/-5.4F, OFF: 48.2F +/- 5.4F At typical fuel flow rates a temperature increase of between 4-8F will occur across the heating element.
