ICON Vehicle Dynamics 217705P .5 Performance Rear Shock217705P

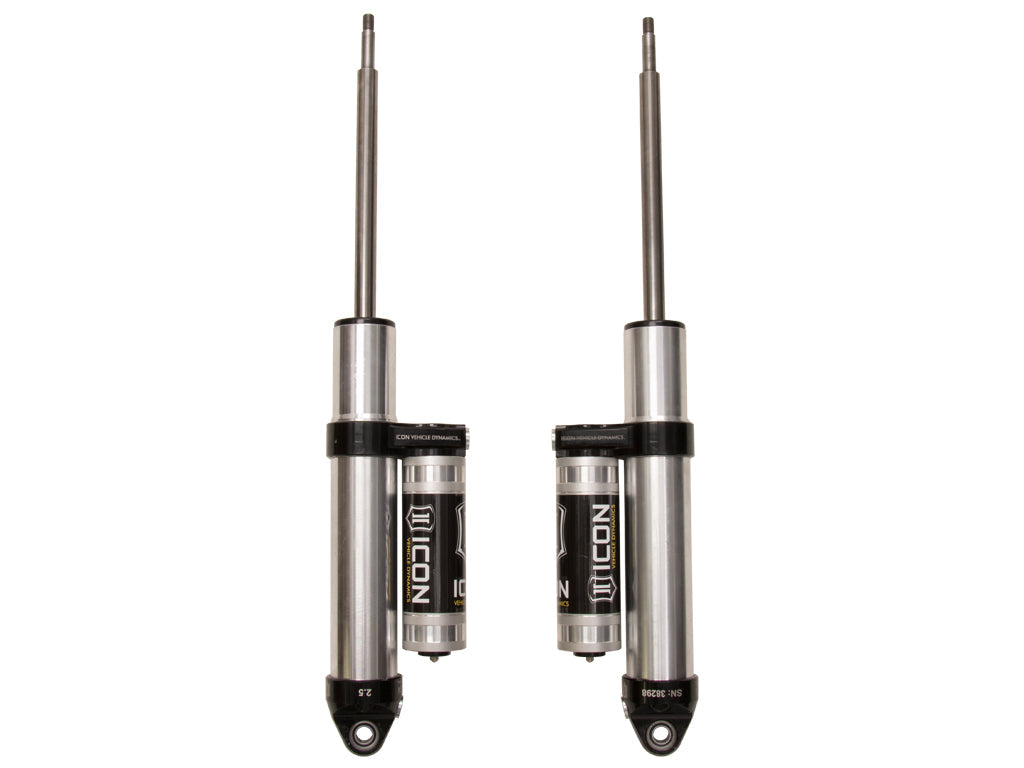

2014-UP RAM 2500 .5 inch LIFT PERFORMANCE REAR 2.5 VS PIGGYBACK SHOCK PAIR
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICONs unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone†that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
- ICONs internal “Bump Zone†increases damping by 20% to provide more control as the shock approaches full compression
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- 100% Rebuildable
- 100% Revalveable
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICONs Compression Damping Control Valve (CDCV)
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8†diameter induction hardened, chrome plated shock shaft
- Polyurethane bushings and forged steel mounting stems for OE factory type fitment
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
Information:
Tuning and length optimized for use with ICON .5 inch Lift Performance Rear Coil Springs (ICON part # 214206)
Application Summary:
| Year |
Make/Model |
| 2014-2022 |
Ram 2500 |
