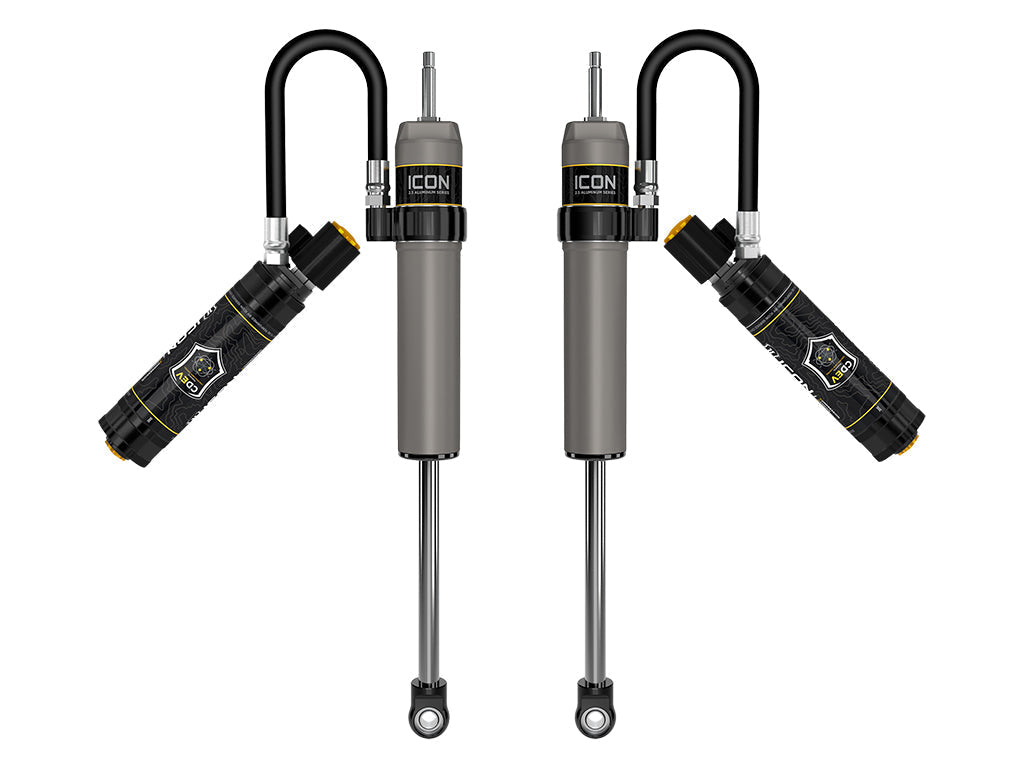

ICON Vehicle Dynamics 217803EP Front Shock Absorber

ICON Vehicle Dynamics 217803EP Front Shock Absorber

ICON Vehicle Dynamics
IVD217803EP
This is a SPECIAL ORDER part. This item can be brought in either with a stock order or on its own. Contact us today to discuss available options BEFORE ordering.
$3,211.55
$3,211.55
$3,211.55
ICON Vehicle Dynamics 217803EP Front Shock Absorber

ICON Vehicle Dynamics

ICON Vehicle Dynamics 217803EP Front Shock Absorber

$3,211.55
ICON Vehicle Dynamics 217803EP Front Shock Absorber

ICON Vehicle Dynamics

ICON Vehicle Dynamics 217803EP Front Shock Absorber

$3,211.55
Description

ICON Vehicle Dynamics 217803EP Front Shock Absorber

217803EP

2014-UP RAM 2500 4.5 inch LIFT FRONT 2.5 VS REMOTE RESERVOIR CDEV SHOCK ABSORBER PAIR

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEVs hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • 6061 aircraft grade aluminum CNC machined components
  • Fully rebuildable and re-tunable
  • ICONs internal “Bump Zone†increases damping by 20% to provide more control as the shock approaches full compression
  • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8†diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware

Information:

TECH NOTE: Also requires installation of IIC part number 213500 and CDEV rear shock part numbers 217704EP, 217706EP, or 217707EP

Application Summary:

Year Make/Model
2014-2022 Ram 2500
Fitment
