Description

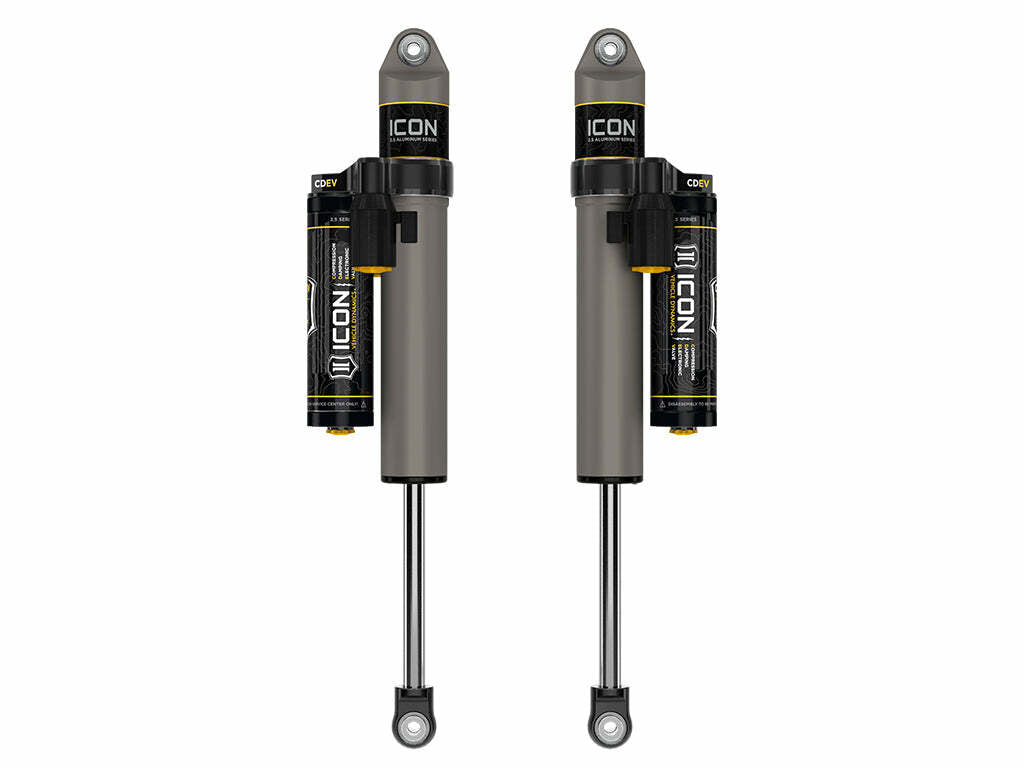

ICON Vehicle Dynamics 37701EP Rear Shock Absorber

37701EP

2017-UP FORD SUPER DUTY 4WD 3-6 inch LIFT REAR 2.5 VS PIGGYBACK CDEV SHOCK ABSORBER PAIR

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEVs hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Fully rebuildable and re-tunable
  • ICONs internal “Bump Zone†increases damping by 20% to provide more control as the shock approaches full compression
  • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8†diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components

Information:

TECH NOTE: Also requires installation of IIC part number 93500 and CDEV front shock part number 67710EP or 67720EP or CDEV front coilover kit part number 61721E

Application Summary:

Year Make/Model
2017-2022 Ford F-250 Super Duty
2017-2022 Ford F-350 Super Duty
Fitment
