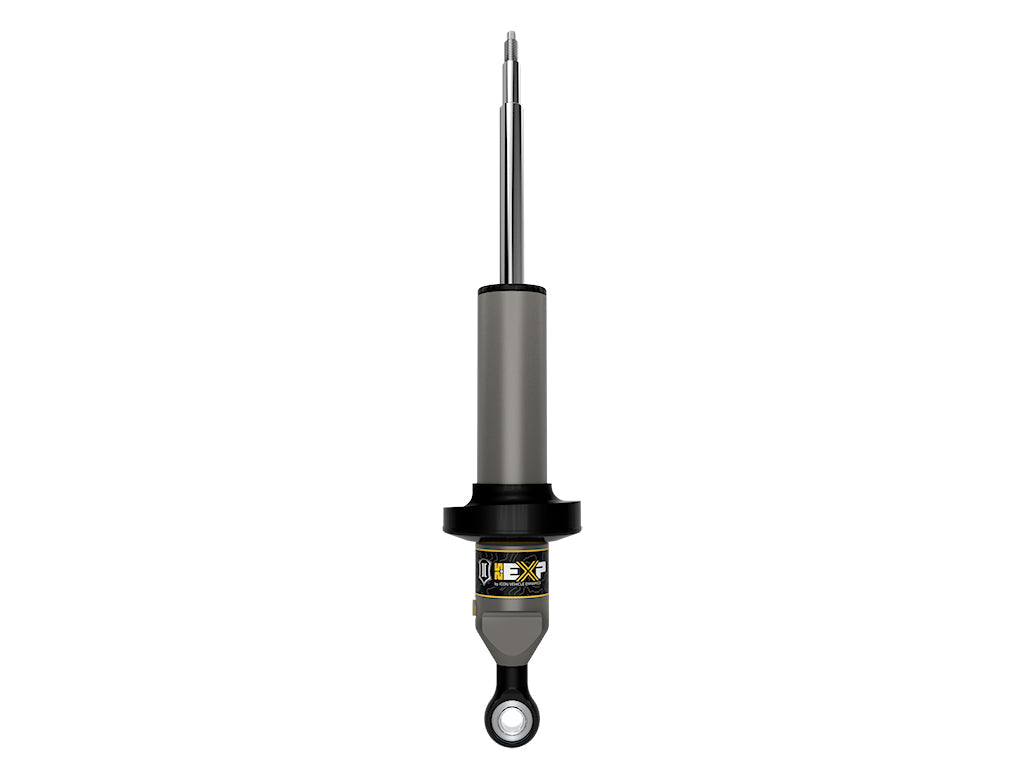

ICON Vehicle Dynamics 58671 Front 2.5 Exp Coilover58671
Based on ICONs 2.5 Series, these EXP shocks bridge the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance, and maximum travel, all in one economical package.
The 2022-2023 Toyota Tundra/2023 Toyota Sequoia EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the trucks factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. EXP Series is based on ICONs proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Tundras OE upper shock and spring mounts. The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically designed to fit the vehicles OE coil spring. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0 inch to 3†of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra/Sequoia in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
- Vehicle specific design for 2022-2023 Toyota Tundra and 2023 Sequoia
- PTFE lined spherical bearing for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- Vehicle specific tuned for superior shock damping and control
- 2.5 Aluminum Series Shock with Internal Reservoir
- Adjustable ride heights from 0-3†of front lift over stock with the use of snap ring
- Utilizes factory coil and coil hardware
- Inverted shaft up design featuring 7/8†diameter, induction hardened, chrome plated shaft
- Impact extruded, hard anodized aluminum cylinder offers excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
Information:
Recommended Aftermarket Tires: 35 inch x 12.50 inch (Minor fender trimming and modifications may be required)
Application Summary:
| Year |
Make/Model |
| 2023 |
Toyota Sequoia |
| 2022-2023 |
Toyota Tundra |
