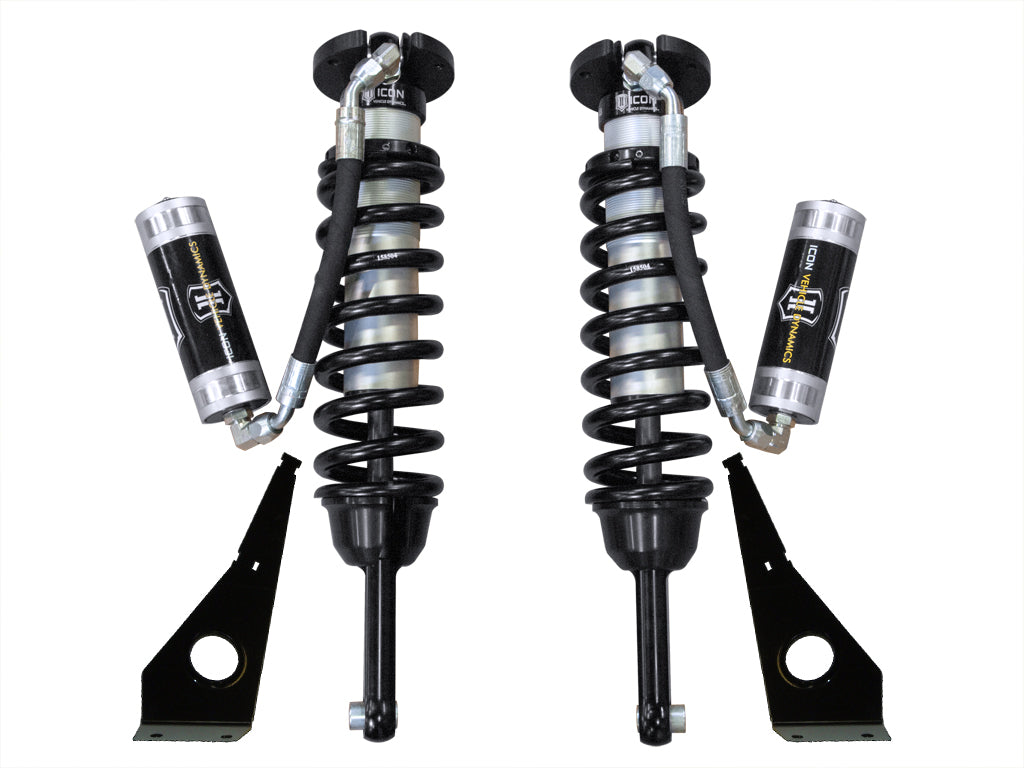

ICON Vehicle Dynamics 58730 Coilover Kit58730
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shocks larger 2.5†body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your Tacoma's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock.
- Adjustable ride height from 0 inch - 3.5 inch
- Mounting Bracket Orients Reservoir for Optimum Tire Clearance
- External Reservoir Ensures Maximum Cooling
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
- Race shock piston with flutter stack compression valving
- Kit Includes Sway bar relocation brackets
- Kit also Includes Reservoir Mounting Brackets
- Cad-plated threaded body / Extreme Weather Plating Option Available
- Billet aluminum upper mount
- 5/8 inch PTFE-lined spherical bearing
- Completely re-buildable
- Hose Length Optimized for Increased Fluid Transfer
Information:
TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25 inch over stockApplication Summary:
Year | Make/Model |
---|---|
2005-2023 | Toyota Hilux |
2005-2023 | Toyota Tacoma |
