ICON Vehicle Dynamics 64041 Radius Arm System64041

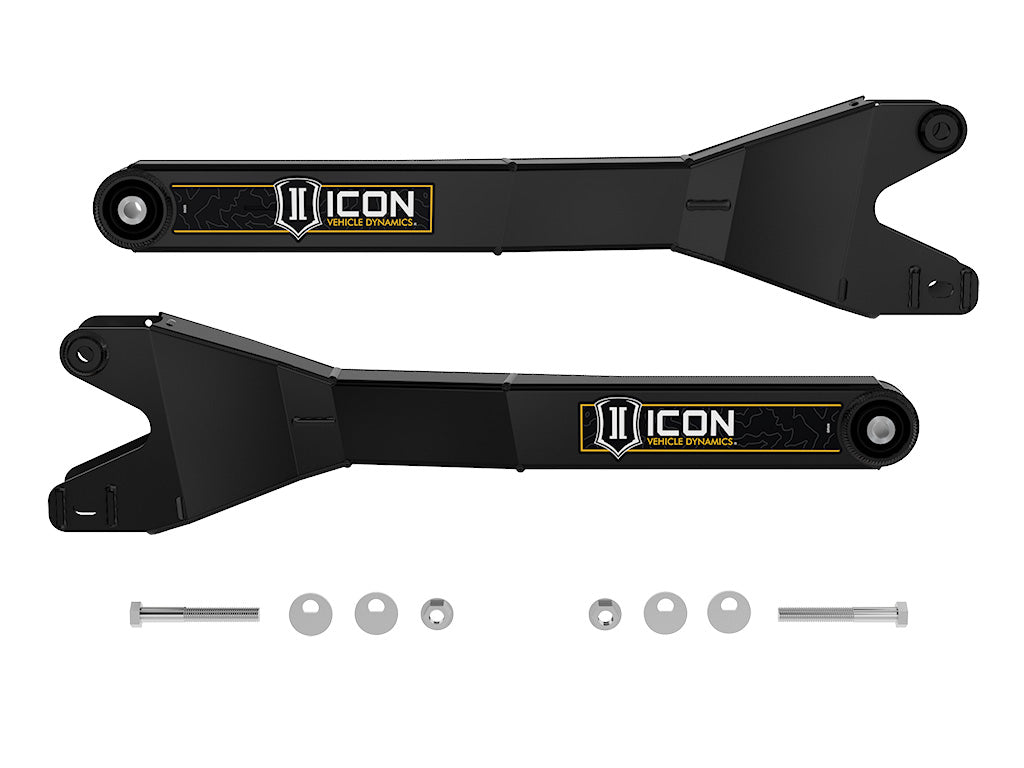

The ICON Vehicle Dynamics Ford Super Duty 4WD Radius Arm System is designed with adjustable caster cams and their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock.
The ICON Vehicle Dynamics Ford 2005-2022 F-250, F-350, and F-450 Super Duty Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3†of front lift with the radius arm installed in the factory pivot. When used in conjunction with an ICON radius arm drop bracket system, proper caster can also be maintained for 4†to 7 inch lifts, including coilover conversion systems. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37†tall tire clear without coming in contact with the radius arm.
- Fully boxed design
- Built in caster adjustment for optimized return to center
- Replaceable sealed pivot bushing provides maintenance free operation
- CNC machined and laser cut steel components
- Semi-gloss black powder coat finish
- Ability to have a 5.5†backspace wheel with 37†tires without contact with the arm at steering lock
Information:
TECH NOTE: Radius arm drop brackets required for use with 4-7†lift heights. (ICON part # 64040, 64045, or, 64055)
Application Summary:
| Year |
Make/Model |
| 2005-2022 |
Ford F-250 Super Duty |
| 2005-2022 |
Ford F-350 Super Duty |
