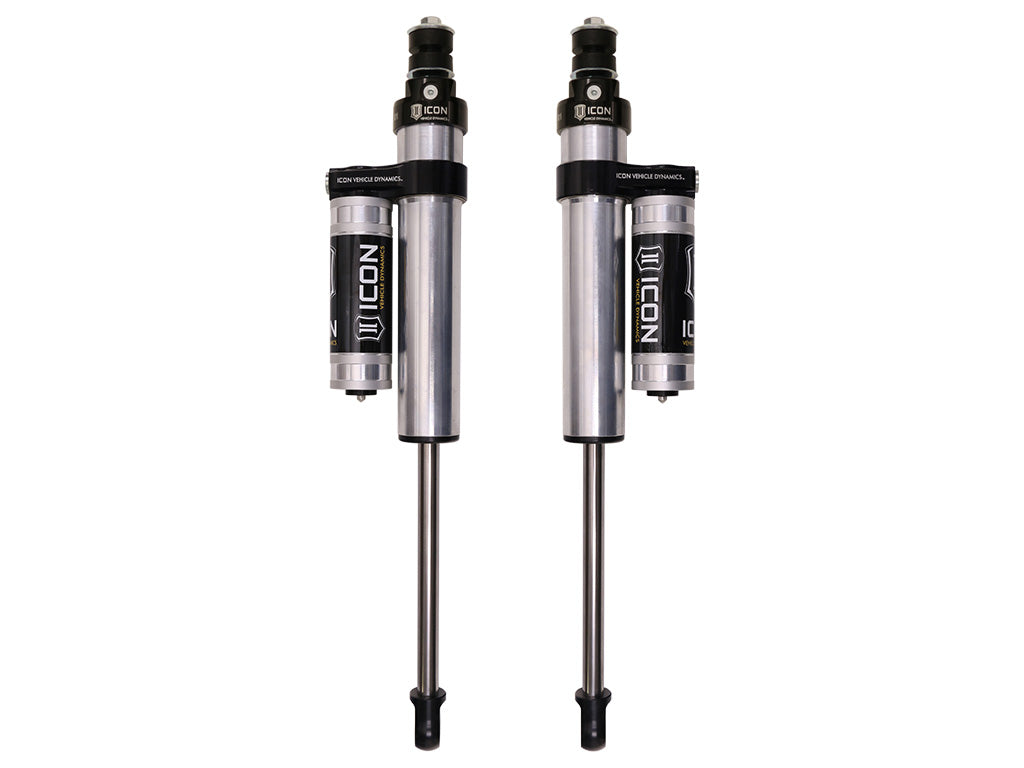

ICON Vehicle Dynamics 77725P Front Shock Absorber77725P
2001-2010 GM HD 0-2.5 inch LIFT FRONT 2.5 VS PIGGYBACK SHOCK PAIR
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
- ICONs internal “Bump Zone†increases damping by 20% to provide more control as the shock approaches full compression
- 100% Rebuildable
- 100% Revalveable
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8†diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
Application Summary:
| Year |
Make/Model |
| 2001-2010 |
Chevrolet Silverado 2500 |
| 2001-2010 |
Chevrolet Silverado 2500 HD |
| 2001-2010 |
Chevrolet Silverado 3500 |
| 2007-2010 |
Chevrolet Silverado 3500 HD |
| 2001-2004 |
GMC Sierra 2500 |
| 2001-2010 |
GMC Sierra 2500 HD |
| 2001-2006 |
GMC Sierra 3500 |
| 2007-2010 |
GMC Sierra 3500 HD |
