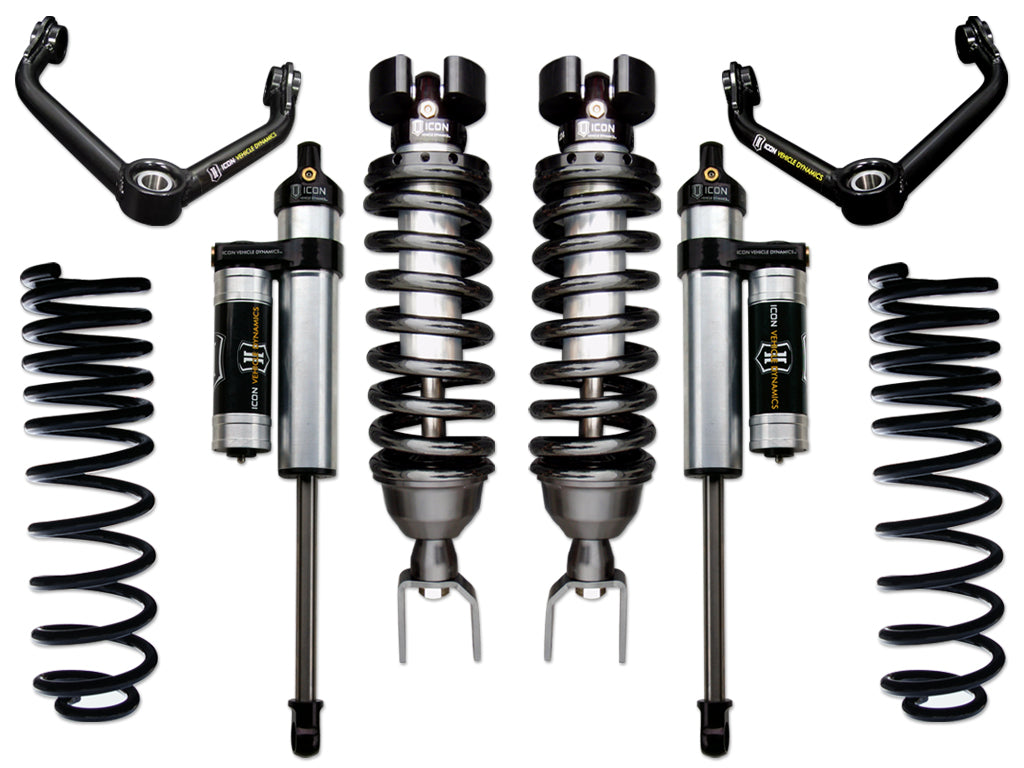

ICON Vehicle Dynamics K213004 .75-2.5 Stage 4 Suspension SystemK213004
2009-2018 RAM 1500 4WD .75-2.5 inch LIFT STAGE 4 SUSPENSION SYSTEM
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from .75-2.5 inch of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8 inch shafts
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
Information:
Ships in Multiple Boxes
Application Summary:
| Year |
Make/Model |
| 2009-2010 |
Dodge Ram 1500 |
| 2011-2018 |
Ram 1500 |
| 2019-2022 |
Ram 1500 Classic |
