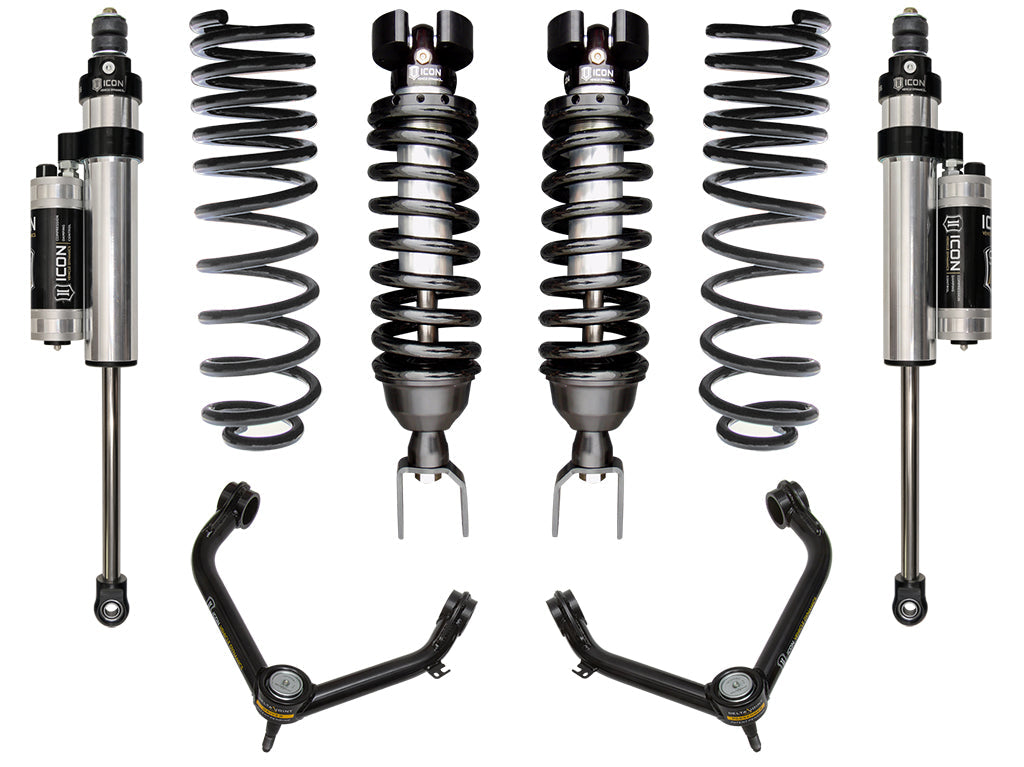

ICON Vehicle Dynamics K213105T 0-1.5 Stage 5 Suspension System with Tubular Upper Control ArmK213105T
2019-UP RAM 1500 2/4WD 0-1.5 inch LIFT STAGE 5 SUSPENSION SYSTEM WITH TUBULAR UCA
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- Adjustable coilovers from 0-1.5 inch of lift height allow for fitment of larger and more aggressive tires
- Shocks are fully rebuildable and revalvable
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
- Corrosion resistant CAD plated coilvoer shock bodies with 7/8″ shafts
- Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders and 7/8 inch shafts
- FK rod end bearings for extended longevity and minimal deflection
- ICON upper control arms improve suspension geometry for predictable handling
- Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
- 1.5 inch lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
- Fits 2WD & 4WD applications
- 6061 Aircraft grade aluminum CNC machined components
Information:
Recommended Aftermarket Tires: 33 inch x 11.50 inch (Larger tires may fit but fender trimming and modifications will be required)
Application Summary:
| Year |
Make/Model |
| 2019-2022 |
Ram 1500 |
