ICON Vehicle Dynamics K214523A 4.5 Stage 3 Suspension System, Air RideK214523A
2014-2018 RAM 2500 4WD 4.5 inch LIFT STAGE 3 SUSPENSION SYSTEM (AIR RIDE)

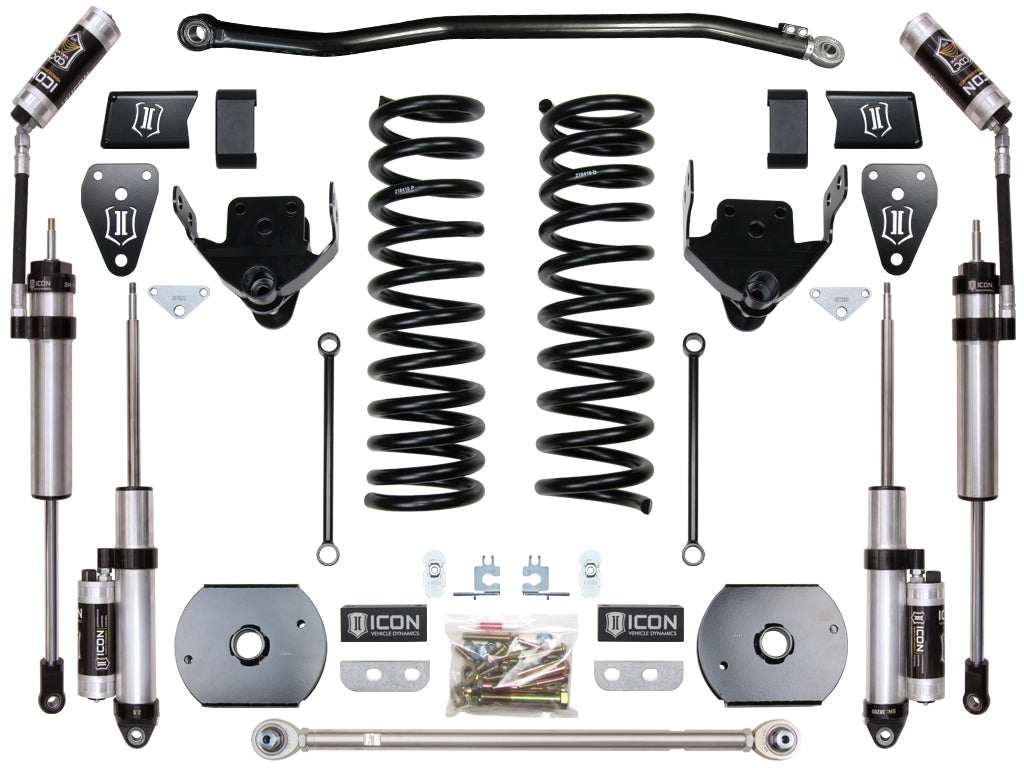

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5†dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 3 system a huge upgrade for 2014-2018 Ram 2500 4WD trucks that are not only used for daily driving and towing, but spirited off-road driving as well. This suspension system has been designed specifically by ICON engineers to retain the functionality of factory rear air ride components while also allowing for rear ride height adjustability.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- Level stance from front to rear of vehicle
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Vehicle specific tuned front and rear 2.5 Series shocks provide superior damping and ride quality
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Information:
APPLICATION NOTE #103: VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFTS REQUIRE CARRIER SHIM KIT 214211
Application Summary:
| Year |
Make/Model |
| 2014-2018 |
Ram 2500 |
