ICON Vehicle Dynamics K214553T 4.5 Stage 4 Suspension SystemK214553T
2009-2012 RAM 2500/3500 4.5 inch LIFT STAGE 4 SUSPENSION SYSTEM

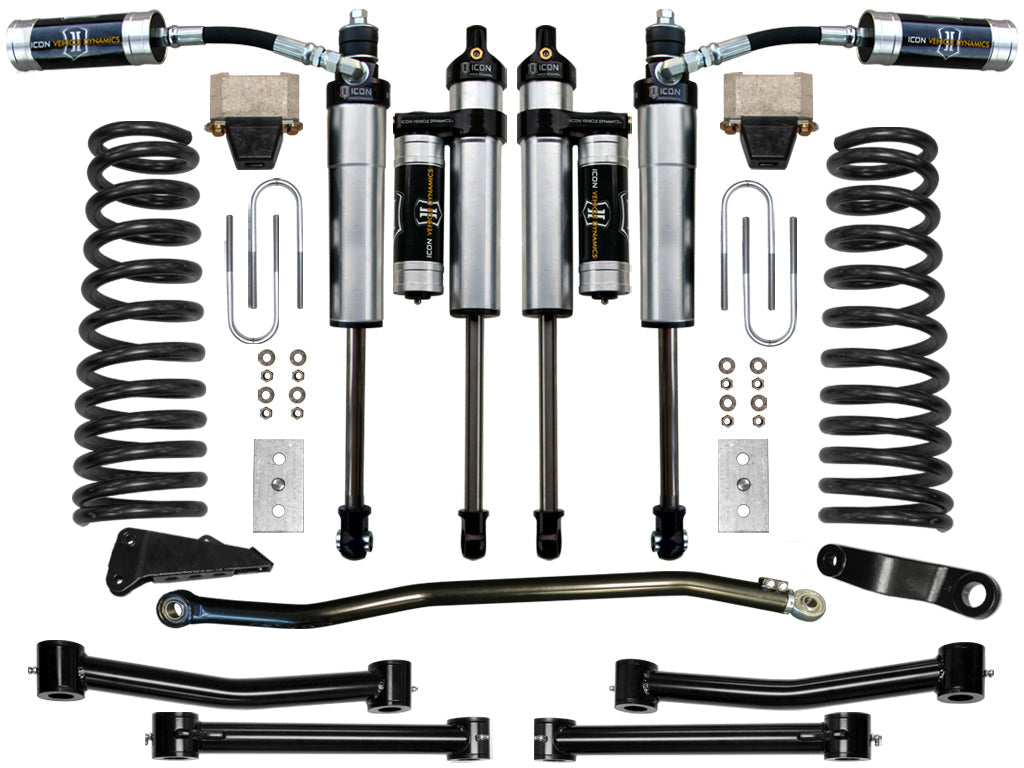

2009-2012 Ram 2500/3500 4.5 inch Stage 4 Suspension System utilizes the same technology as the 2.5 inch systems while adding lift height and ground clearance. Additional engineered front-end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 4 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bump stops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, 2.5 Aluminum Series shocks, and bearing style adjustable track bar. ICON 2.5 inch Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap & rod ends, and 7/8 inch shafts for strength. The adjustable track bar with bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This ultimate performance system with link arms offers extraordinary diversity across any terrain, all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35 inch tall tires with no modifications, and some 37 inch tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
- ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series reservoir shocks
- Adjustable track bar with PTFE lined FK bearings
- Heavy-duty steel upper and lower link bars
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Correctly positioned steering and track bar components
- Level stance front to rear
- Less body roll than stock
- No drive shaft modifications needed
Information:
Ships in Multiple Boxes
Application Summary:
| Year |
Make/Model |
| 2009-2010 |
Dodge Ram 2500 |
| 2009-2010 |
Dodge Ram 3500 |
| 2011-2012 |
Ram 2500 |
| 2011-2012 |
Ram 3500 |
