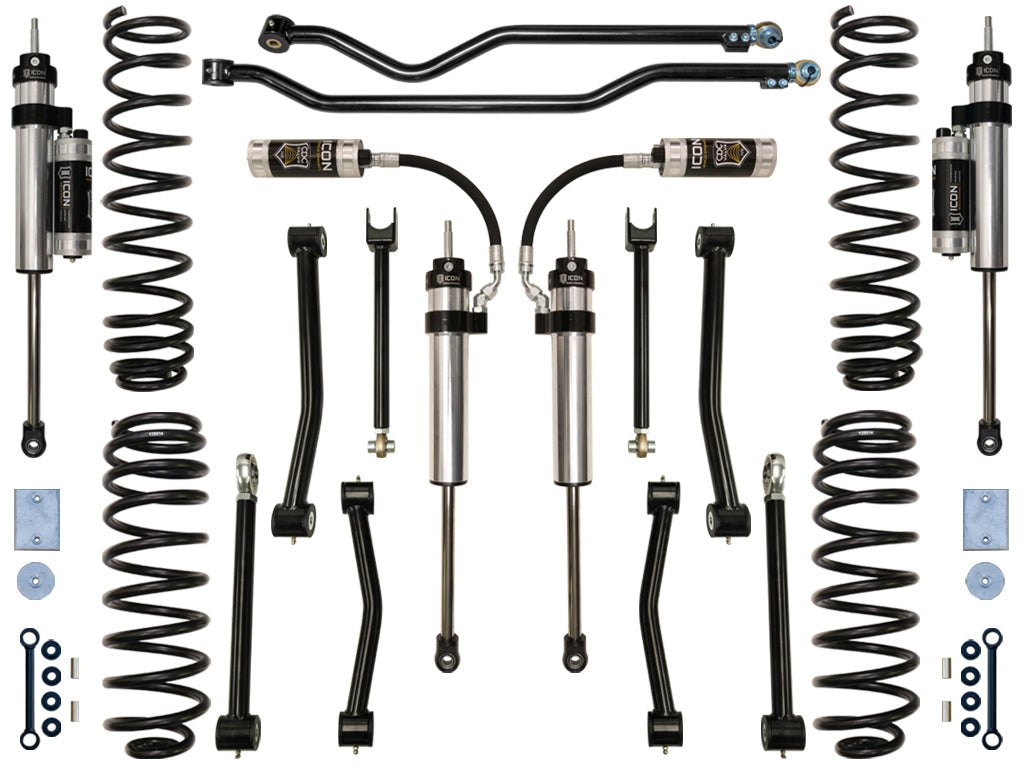

ICON Vehicle Dynamics K22005 3 Stage 5 Suspension SystemK22005
2007-2018 JEEP JK 3 inch LIFT STAGE 5 SUSPENSION SYSTEM
The ICON Vehicle Dynamics 3 inch Lift Suspension System is designed for Jeep JK owner's demanding the ultimate in performance and ride quality, without the larger stance you find in bigger lift systems on today's market. ICON's Jeep Wrangler JK 3 inch lift system is engineered with front and rear dual rate progressive wound springs which is the foundation for on and off-road performance and suspension articulation. The dual rate design gives you a softer initial rate for superb on road comfort and a firmer than stock secondary rate that increases during compression for excellent bottom out control. ICON 2.5 Aluminum Series reservoir shocks are included front and rear to ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally. Together the combination of ICON dual rate coils and 2.5 Aluminum Series shocks adds 30% more wheel travel over stock, helping you rock crawl safer or soak up larger terrain at higher speeds keeping those wheels on the ground. In this Stage 4 system adjustable track bars are included front and rear for optimizing axle position to ensure your axles are perfectly centered under the vehicle. Upgraded tubular steel upper & lower link arms are designed to add performance, strength, and improved alignment range. This ICON 3 inch JK lift system is designed from the ground up to give the Jeep Wrangler JK's the best performance, suspension handling / ride quality, and clearance for 33 inch tall tires (35 inch tall with installation of aftermarket high-clearance fenders).
- Dual Rate Coil Springs Front and Rear
- Pan Rod Bars include Dual Stage Bushing System and JM12T Rod End to minimize deflection while maximizing responsiveness
- Lifetime Guarantee that Coil Springs Wont Sag
- Adds 30% More Wheel Travel over Stock
- Vehicle can be Returned Back to Stock
- No Welding or Cutting
- Includes High Performance Rebuildable / Revalvable Reservoir 2.5 Series Shocks w/ CDCV
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders that offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders
- Out Articulates Most Long Arm Kits of Comparable Height
- Includes Adjustable Track Bars for Optimized Axle Positioning
Information:
APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
Application Summary:
| Year |
Make/Model |
| 2007-2017 |
Jeep Wrangler |
| 2018 |
Jeep Wrangler JK |
