ICON Vehicle Dynamics K22105T 2.5 Stage 5 Suspension System, TubularK22105T
2020-UP JEEP GLADIATOR JT 2.5 inch STAGE 5 SUSPENSION SYSTEM WITH TUBULAR LINKS

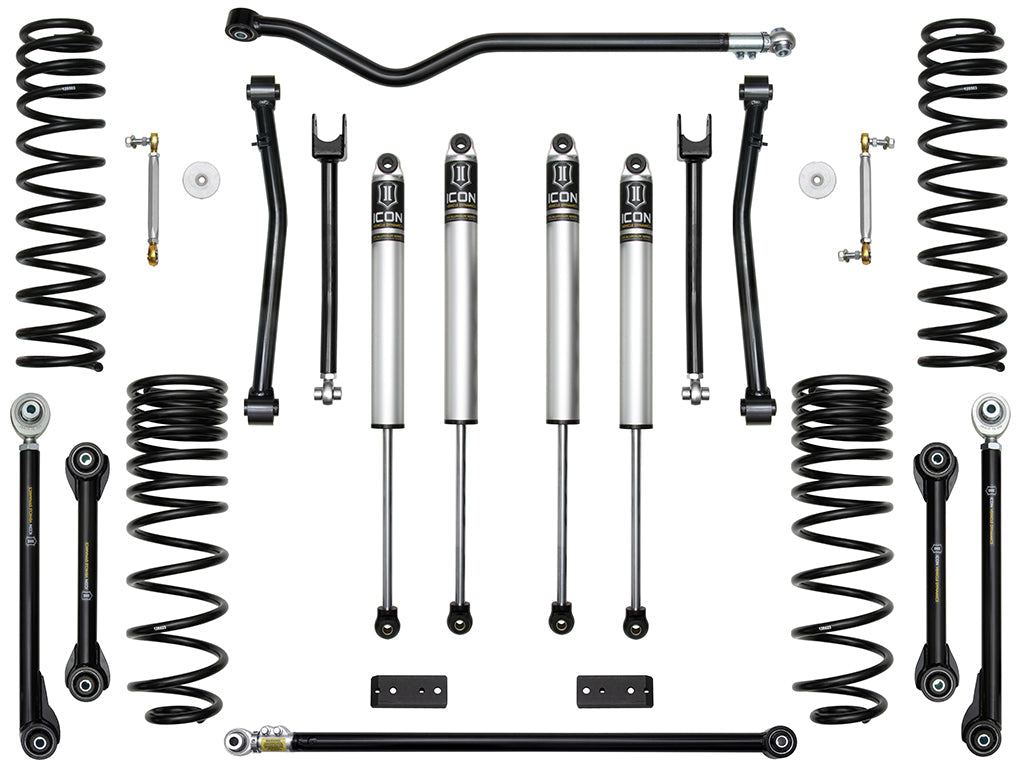

The Stage 5 ICON 2.5†Suspension System for the Jeep Gladiator is the ideal setup for significantly improving off-road performance and overall ride quality for the application that will see frequent moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5†lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35†tire. For those looking to run a 37†tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
- 2.5 inch lift height
- Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- 2.0 Aluminum Series shocks with vehicle specific valving
- Front and rear track bars ensure proper alignment and improved articulation
- Adjustable, billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
- “ICON 1K†tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Fits 35 inch tires (37 inch with extended bump stop spacer kit)
- 33% front, 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Front upper and lower links included for caster angle correction and improved front end articulation
Information:
TECH NOTE: ICONs advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
Application Summary:
| Year |
Make/Model |
| 2020-2022 |
Jeep Gladiator |
