ICON Vehicle Dynamics K22108T 2.5 Stage 8 Suspension System, TubularK22108T
2020-UP JEEP GLADIATOR JT 2.5 inch STAGE 8 SUSPENSION SYSTEM WITH TUBULAR LINKS

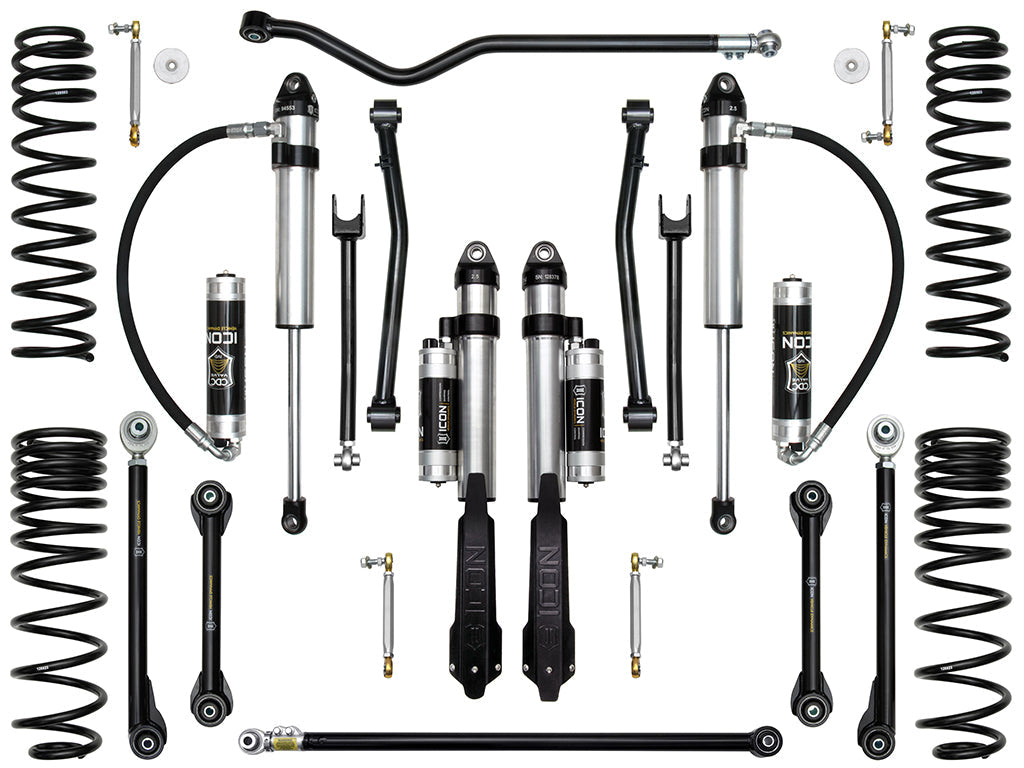

The Stage 8 ICON 2.5†Suspension System for the Jeep Gladiator is the ultimate setup for drastically improving off-road performance and providing an end-user adjustable ride quality for the application that will see heavy off-road use across a wide variety of vehicle loadouts and terrains. This complete suspension system features ICONs proven 2.5 Aluminum Series shocks with CDC Valve technology, 2.5†lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a billet rear sway bar link kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35†tire. For those looking to run a 37†tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
- 2.5 inch lift height
- Front upper and lower links included for caster angle correction and improved front end articulation
- Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
- Front and rear track bars ensure proper alignment and improved articulation
- Adjustable, billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
- “ICON 1K†tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Fits 35 inch tires (37 inch with extended bump stop spacer kit)
- 33% front, 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
Information:
Ships In Multiple Boxes
Application Summary:
| Year |
Make/Model |
| 2020-2022 |
Jeep Gladiator |
