ICON Vehicle Dynamics K24002 4.5 Stage 2 Suspension SystemK24002
2007-2018 JEEP JK 4.5 inch LIFT STAGE 2 SUSPENSION SYSTEM

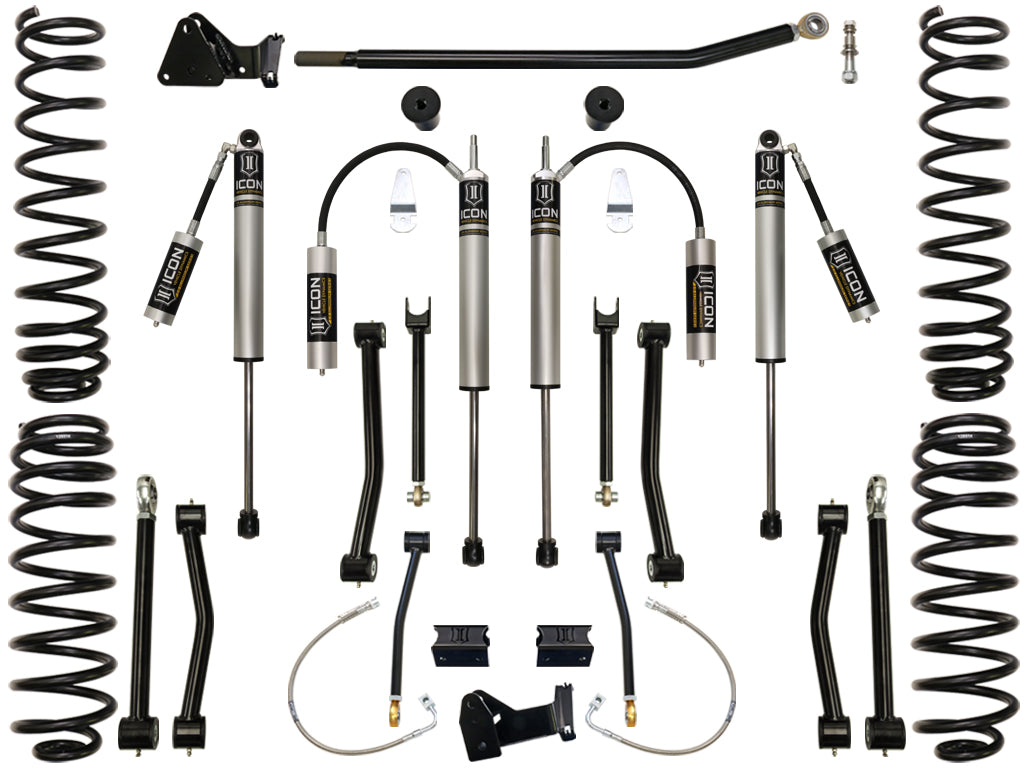

The ICON Stage 2 Jeep JK 4.5 inch suspension system includes dual-rate coil springs, track bar drop brackets, high-steering components, bump stop spacers, rear brake lines, rear sway bar links, complete set of front and rear links, and 2.0 Aluminum Series remote reservoir shocks. Tested and tuned, the ICON JK Stage 2 suspension system offers stability and drivability over a wide range of off-road terrains, while keeping a smooth on road feel for every day driving. Adding the remote reservoirs to the 2.0 shocks keeps them at a cooler operating temperature during heavy use for more consistent shock damping and overall performance. Installing this kit allows proper clearance for 35 inch tall tires with no modifications and 37 inch tires with aftermarket high clearance fenders.
- Dual-rate coil springs front and rear guaranteed never to sag
- High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
- Stainless steel high-steer taper adapter eliminates drilling the factory knuckle
- All links utilize dual-rate bushings or PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
- Includes high-performance rebuildable and revalvable remote reservoir 2.0 Aluminum Series shocks
- Increased wheel travel and articulation over stock
- No welding or cutting required
- 100% returnable to stock
Information:
APPLICATION NOTE #80: FRONT DRIVE SHAFT REQUIRED FOR PROPER FRONT DRIVELINE CLEARANCE (ICON PART #22014 [12-UP] / #22016 [07-11]
Application Summary:
| Year |
Make/Model |
| 2007-2017 |
Jeep Wrangler |
| 2018 |
Jeep Wrangler JK |
