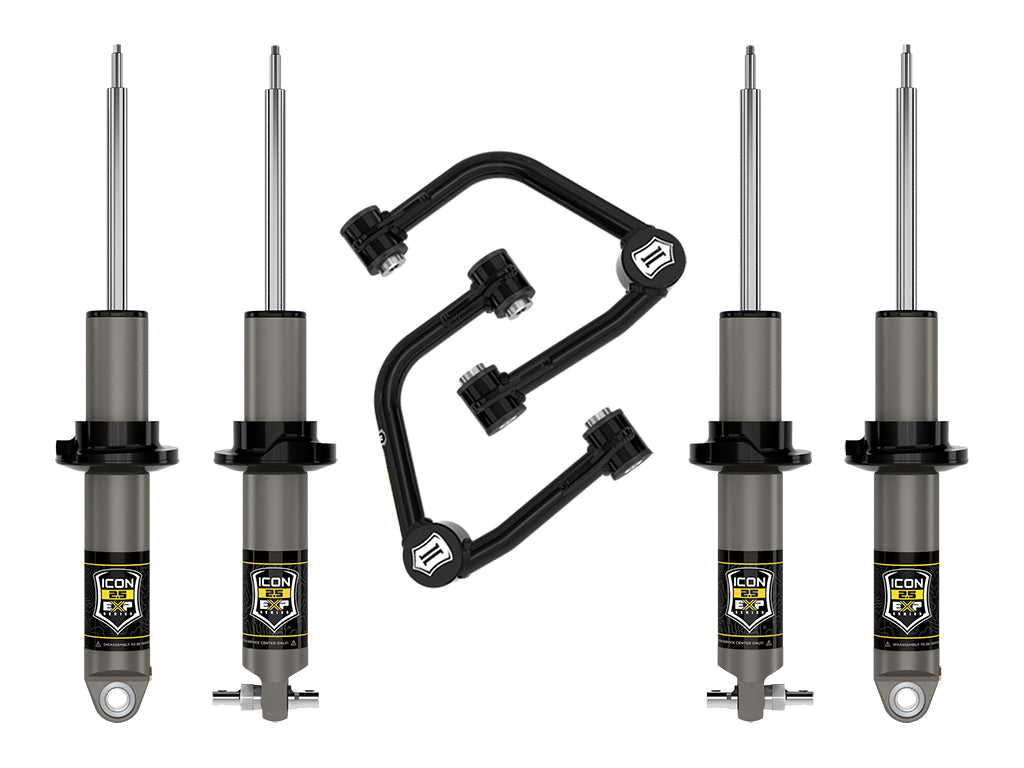

ICON Vehicle Dynamics K40002T 1.0 Pkg 1.375-3 inch Lift Stage 2 Suspension System TubularK40002T
ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, youll have the best suspension solution on the market.
HOSS 1.0 is Ford's inchbase inch suspension system for Broncos with the Base, Big Bend, Outer Banks and Black Diamond trim levels WITHOUT the Sasquatch package. HOSS 1.0 is most easily identified by the BLACK shock bodies of the OE shocks.
- Vehicle specific design for 2021-2022 Ford Bronco with HOSS 1.0 Suspension Package
- Inverted shaft up design featuring 7/8†diameter, induction hardened, chrome plated shafts
- One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
- Vehicle specific tuned shocks for superior shock damping and vehicle control
- Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
- Adjustable ride heights from 1.375-3†of front lift and 1.5-2.25 inch of rear lift over stock with the use of snap rings
- Utilizes factory coils and coil hardware
Information:
APPLICATION NOTE #147: WHEN RUNNING 37 inch TIRES USE BUMP STOP SPACER KIT PART #611082 IN THE FRONT
Application Summary:
| Year |
Make/Model |
| 2021-2023 |
Ford Bronco |
