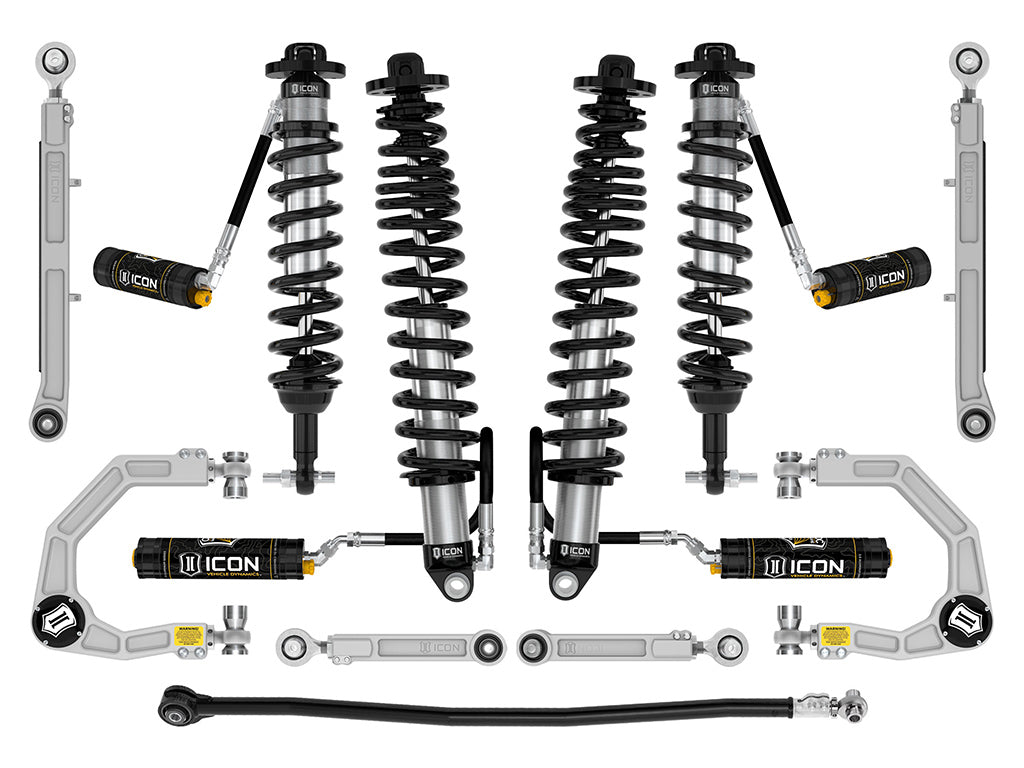

ICON Vehicle Dynamics K40007 3-4 Lift Stage 7 Suspension System BilletK40007
ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, youll have the best suspension solution on the market.
This suspension system is designed to provide up to 11.5 inch of front suspension travel and 14 inch of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37 inch and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35 inch and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.
- Improved suspension performance and ride quality over stock
- Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
- Coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Adjustable coilovers yield up to 3-4 inch of front lift height and 2-3†of rear lift height over stock 4-door Broncos without the Sasquatch package
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8†diameter shafts
- ICON engineered coil springs featuring a unique triple rate rear coil design
- High strength alloy CNC machined lower bar pins
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
- Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
- Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Up to 11.5 inch front / 14†rear wheel travel with 35†tire fitment
Information:
Recommended Aftermarket Wheels: ICON Alloys | 20x9 inch with 5 inch Backspace / 0mm Offset
Application Summary:
| Year |
Make/Model |
| 2021-2023 |
Ford Bronco |
