ICON Vehicle Dynamics K40012 2.0 Pkg 0-2 inch Lift Stage 2 Suspension System BilletK40012
ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, youll have the best suspension solution on the market.
HOSS 2.0 is Ford's upgraded suspension system for Broncos of the Base, Big Bend, Outer Banks and Black Diamond trim levels WITH the optional Sasquatch package, and it is also standard on Badlands, Wildtrak, First Edition and Everglades. HOSS 2.0 is most easily identified by the YELLOW shock bodies of the OE shocks.
- Vehicle specific design for 2021-UP Ford Bronco with HOSS 2.0 Suspension Package
- Inverted shaft up design featuring 7/8†diameter, induction hardened, chrome plated shafts
- One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
- Vehicle specific tuned shocks for superior shock damping and vehicle control

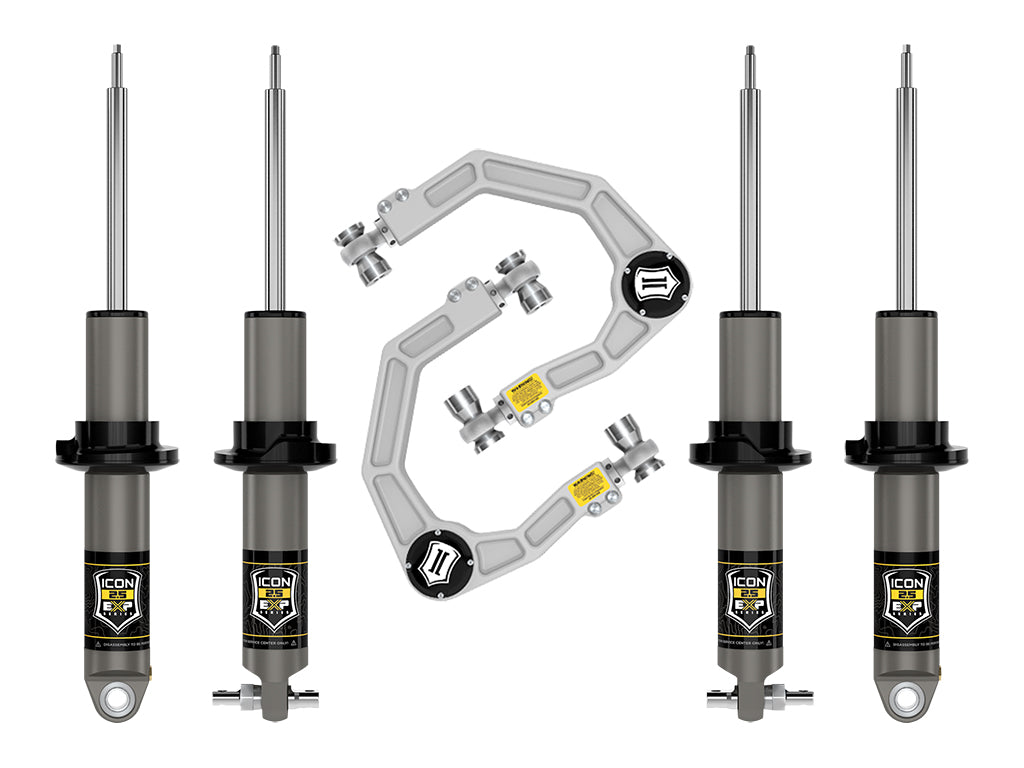

- Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
- Adjustable ride heights from 0-2†of front lift and 0-1.75 inch of rear lift over stock with the use of snap rings
- Utilizes factory coils and coil hardware
Information:
Recommended Aftermarket Tires (Without Sasquatch Package): 35 inch x 12.50 inch (Requires high clearance crash bars, ICON part number 42000. 37 inch tire packagesrequire coilover bump stop spacers along with trimming and modifications)
Application Summary:
| Year |
Make/Model |
| 2021-2023 |
Ford Bronco |
