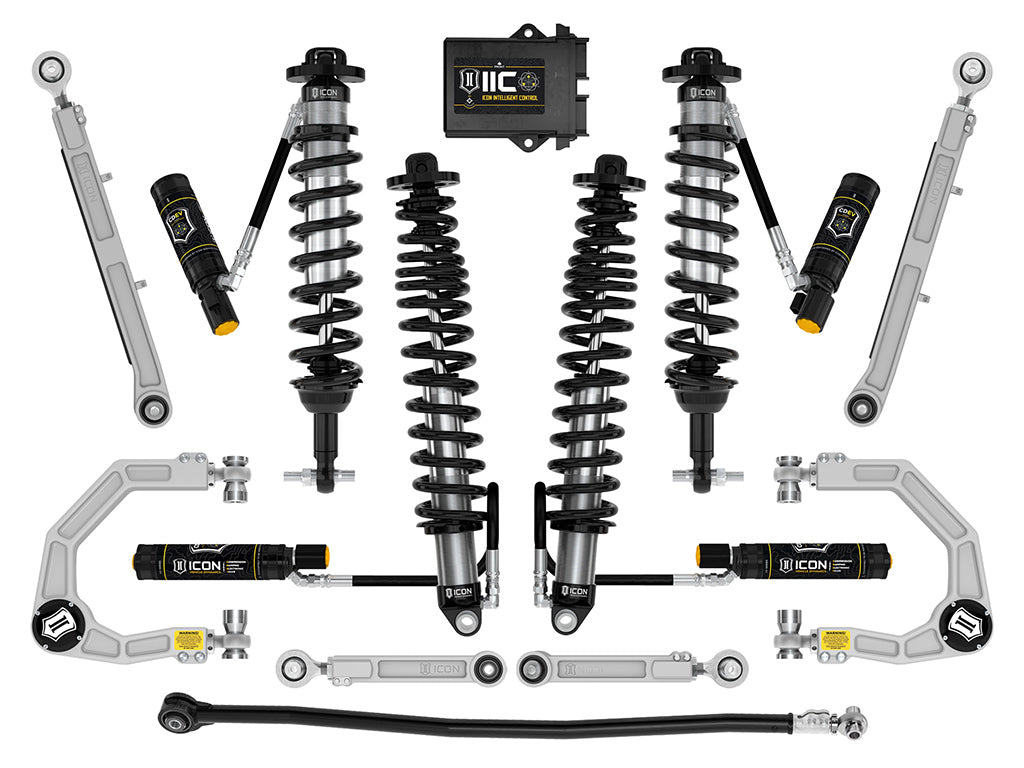

ICON Vehicle Dynamics K40018 2-3 Lift Stage 8 Suspension System BilletK40018
ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, youll have the best suspension solution on the market.
This suspension system is designed to provide up to 11.5 inch of front suspension travel and 14 inch of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37 inch and larger tires if using the optional up-travel limiters (sold separately).
- Improved suspension performance and ride quality over stock
- Up to 11.5 inch front / 14†rear wheel travel with 35†tire fitment
- Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Adjustable coilovers yield up to 2-3 inch of front lift height and 1.25-2.25†of rear lift height over stock 4-door Broncos with the Sasquatch package
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8†diameter shafts
- ICON engineered coil springs featuring a unique triple rate rear coil design
- High strength alloy CNC machined lower bar pins
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
- Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
Information:
Recommended Aftermarket Tires: 35 inch x 12.50 inch (37 inch tires require coilover bump stop spacers along with minor trimming)
Application Summary:
| Year |
Make/Model |
| 2021-2023 |
Ford Bronco |
