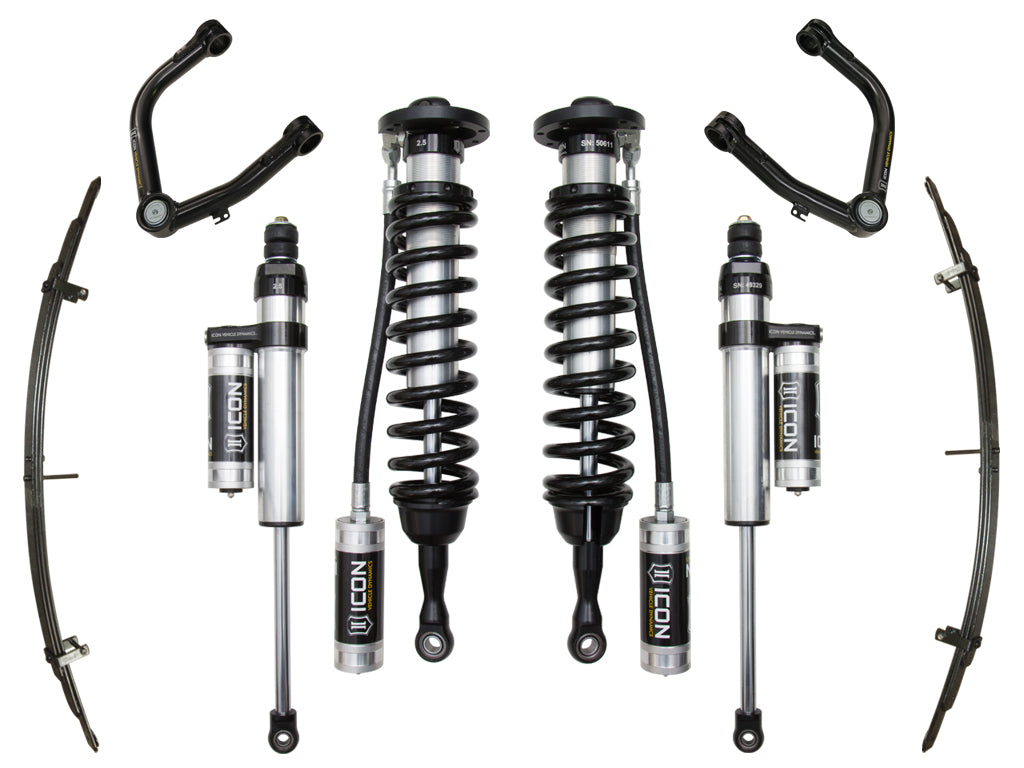

ICON Vehicle Dynamics K53025T 1-3 Stage 5 Suspension System with Tubular Upper Control ArmK53025T
2007-2021 TOYOTA TUNDRA 1-3 inch LIFT STAGE 5 SUSPENSION SYSTEM WITH TUBULAR UCA
This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from 1-3 inch of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 inch shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.5 Aluminum Series rear shocks with one-piece impact extruded aluminum cylinders and 7/8 inch polished chrome shafts
- Rear expansion pack for 1.5†of lift and better ride quality
- 100% Bolt-on system - no cutting, or welding necessary for install
Information:
APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.
Application Summary:
| Year |
Make/Model |
| 2007-2021 |
Toyota Tundra |
