ICON Vehicle Dynamics K53171 0-3.5 Stage 1 Suspension SystemK53171
2003-2009 LEXUS GX470 0-3.5 inch LIFT STAGE 1 SUSPENSION SYSTEM

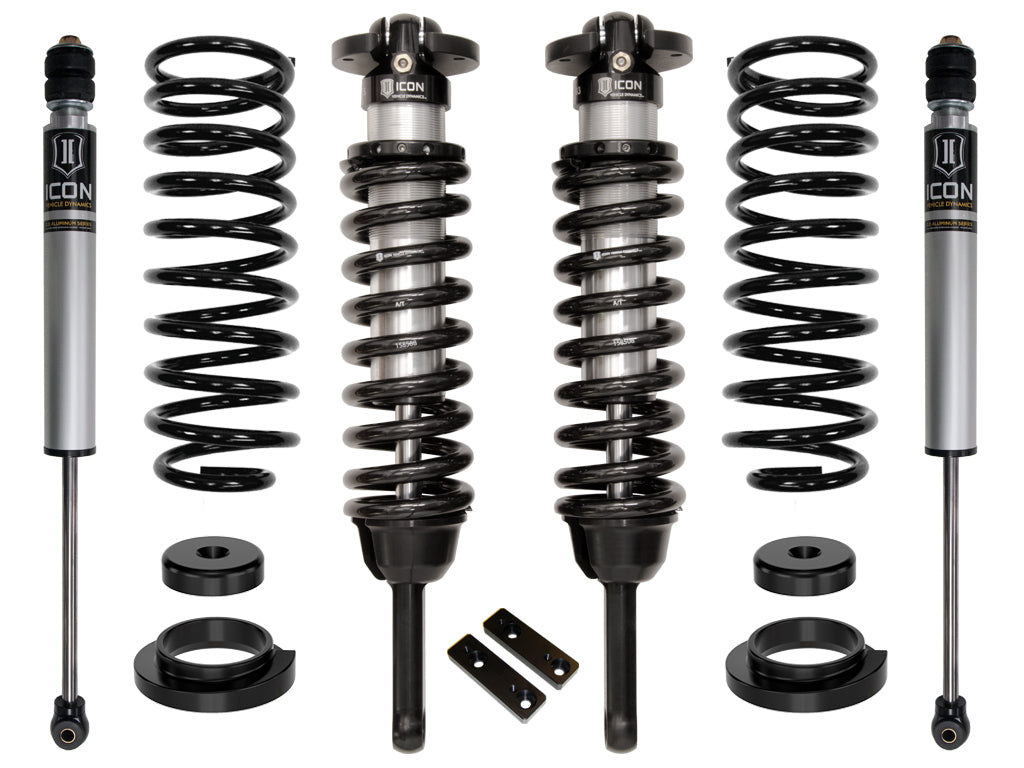

The Stage 1 system includes vehicle-specific tuned 2.5†coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel†through the range of travel. These coilovers are also height adjustable from 0-3.5†of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2†lift rear coil springs paired with 2.0 Aluminum Series internal reservoir rear shocks utilizing vehicle-specific valving balance the performance of the truck from front to rear. Specifically for the GX470 platforms a rear coil spring conversion kit is included to eliminate the factory rear air bags. The ICON Vehicle Dynamics 2003-2009 Lexus GX470 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide 0-3.5 inch of lift height
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 inch shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear IFP shocks with 5/8 inch shafts
- Included rear coil conversion kit eliminates factory air system
- Bolt-on system means no cutting or welding necessary for install
Information:
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Application Summary:
| Year |
Make/Model |
| 2003-2009 |
Lexus GX470 |
