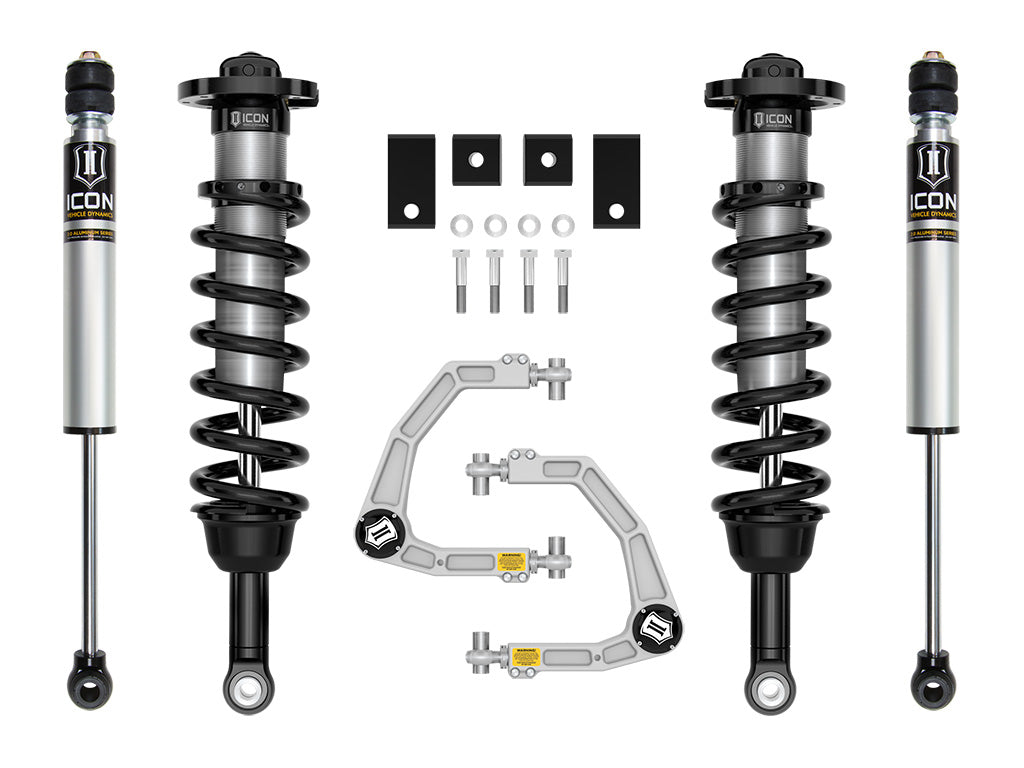

ICON Vehicle Dynamics K53194 1.25-3.5 Stage 4 Suspension System BilletK53194
Stage 4 includes a pair of 2.5 Series coilovers for 1.25-3.5†of front lift, greater performance, and 35†tire fitment. Billet UCAs provide alignment correction and 2.0 Series rear shocks balance the tuning from front to rear.
Rounding out the Stage 4 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2022-2023 Tundra. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
- Vehicle specific design for 2022-2023 Toyota Tundra
- All ICON shock absorbers are fully rebuildable and re-tunable
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Adjustable front ride heights from 1.25-3.5†of front lift over stock when used with included billet UCAs
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
Information:
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
Application Summary:
| Year |
Make/Model |
| 2022-2023 |
Toyota Tundra |
