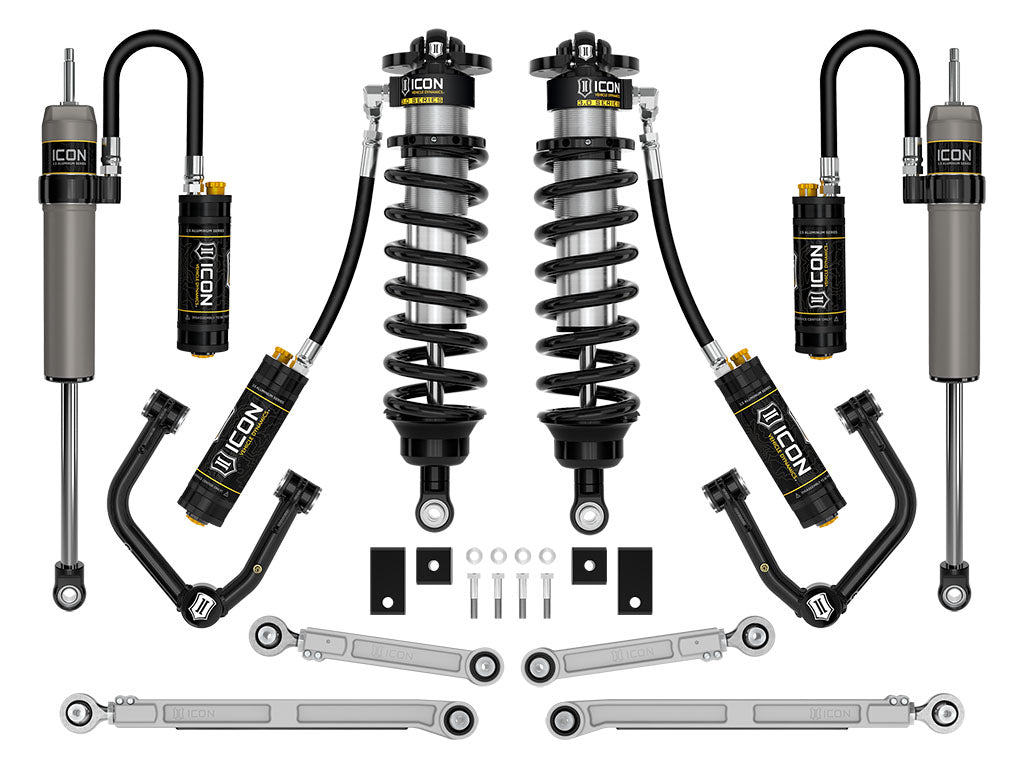

ICON Vehicle Dynamics K53211T 2-3.25 inch Stage 1 3.0 Suspension System TubularK53211T
Stage 1 includes 3.0 remote reservoir coilovers for 1.25-3.25†of front lift, max performance and 35†tire fitment. Tubular UCAs, rear links and 2.5 Series remote reservoir shocks for balanced shock tuning. CDCV for damping adjustment.
Rounding out the Stage 1 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2023 Tundra. The 2.5 Aluminum Series shocks larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
- Vehicle specific design for 2022-2023 Toyota Tundra
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance, 20% increase in wheel travel, and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
- 3.0 Series front coilovers with ICONs multi-stage, tunable hydraulic “Bump Zoneâ€
- Adjustable front ride heights from 2-3.25†of front lift over stock when used with included tubular UCAs
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
Information:
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
Application Summary:
| Year |
Make/Model |
| 2022-2023 |
Toyota Tundra |
