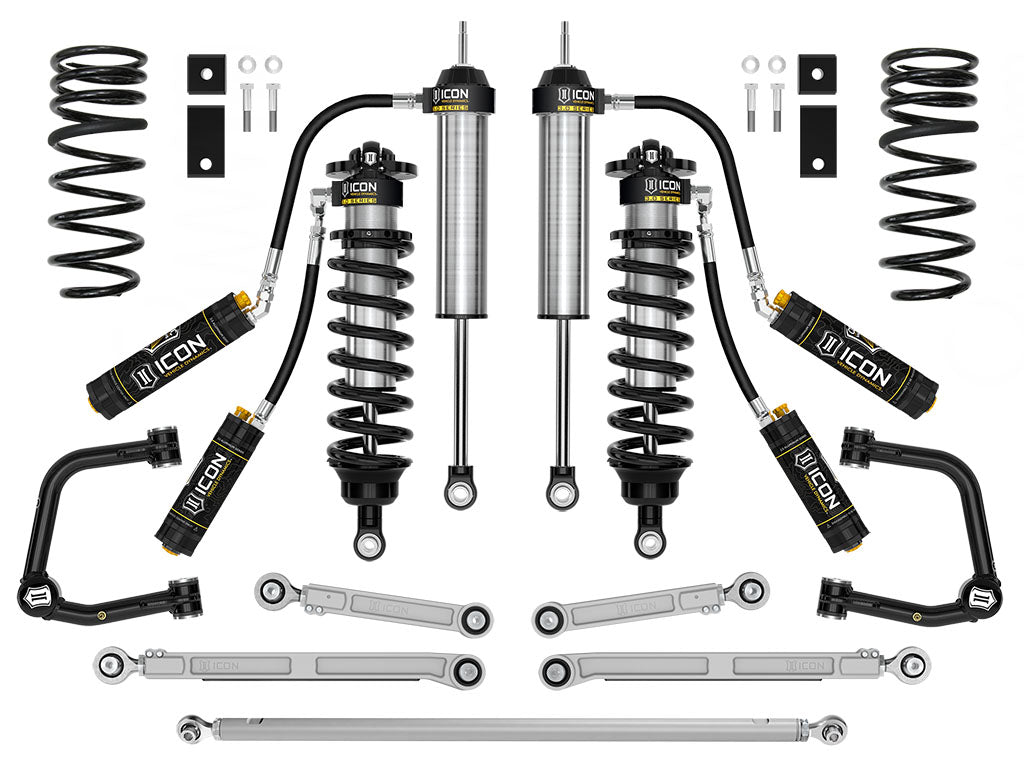

ICON Vehicle Dynamics K53213TS 2-3.25 inch Stage 3 3.0 Suspension System Tubular (Trd)K53213TS
Stage 3 includes 3.0 remote res coilovers for 1.25-3.25†of lift, max performance and 35†tire fitment. Tubualr UCAs, links, rear coils, track bar and 3.0 Series remote res shocks balance shock damping. CDCV for damping adjustment.
Rounding out the Stage 3 suspension system are 3.0 Series rear remote reservoir shocks specially tailored for the 2022-2023 Tundra to yield 20% increase in wheel travel over stock. 3.0 Series shocks also boast 50% more piston surface area compared to 2.5 Series shocks, offering outstanding performance off-road and a smooth ride on the street. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks, plus their remote reservoirs, offer even greater heat dissipation and resistance to shock fade under hard use. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
- Vehicle specific design for 2022-2023 Toyota Tundra
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Triple rate rear coil springs improve performance and ride quality while providing .75 inch of rear lift (TRD models)
- On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
- 3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
- 3.0 Series front coilovers with ICONs multi-stage, tunable hydraulic “Bump Zoneâ€
- Adjustable front ride heights from 2-3.25†of front lift over stock when used with included tubular UCAs
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
Information:
Recommended Aftermarket Tires: 35 inch x 12.50 inch (Minor fender trimming and modifications may be required)
Application Summary:
| Year |
Make/Model |
| 2022-2023 |
Toyota Tundra |
