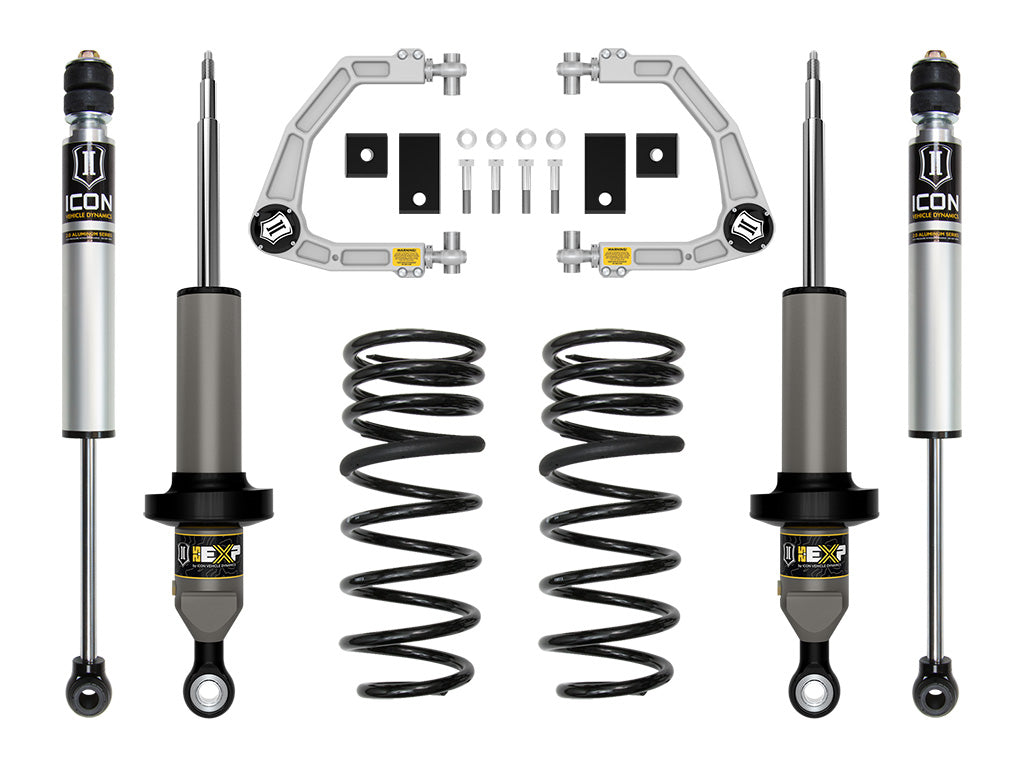

ICON Vehicle Dynamics K53232 0-2.13 inch Stage 2 Suspension System BilletK53232
The ICON Stage 2 billet suspension system for the 23 Sequoia provides improved performance, better alignment specs as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35 inch tires.
Rounding out the Stage 2 suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2023 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
- Vehicle specific design for 2023 Toyota Sequoia
- All ICON shock absorbers are fully rebuildable and re-tunable
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 0-2.13†of front lift over stock with the use of snap ring
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Dual rate rear coil springs improve performance and ride quality while providing 3 inch of rear lift
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
Information:
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
Application Summary:
| Year |
Make/Model |
| 2023 |
Toyota Sequoia |
