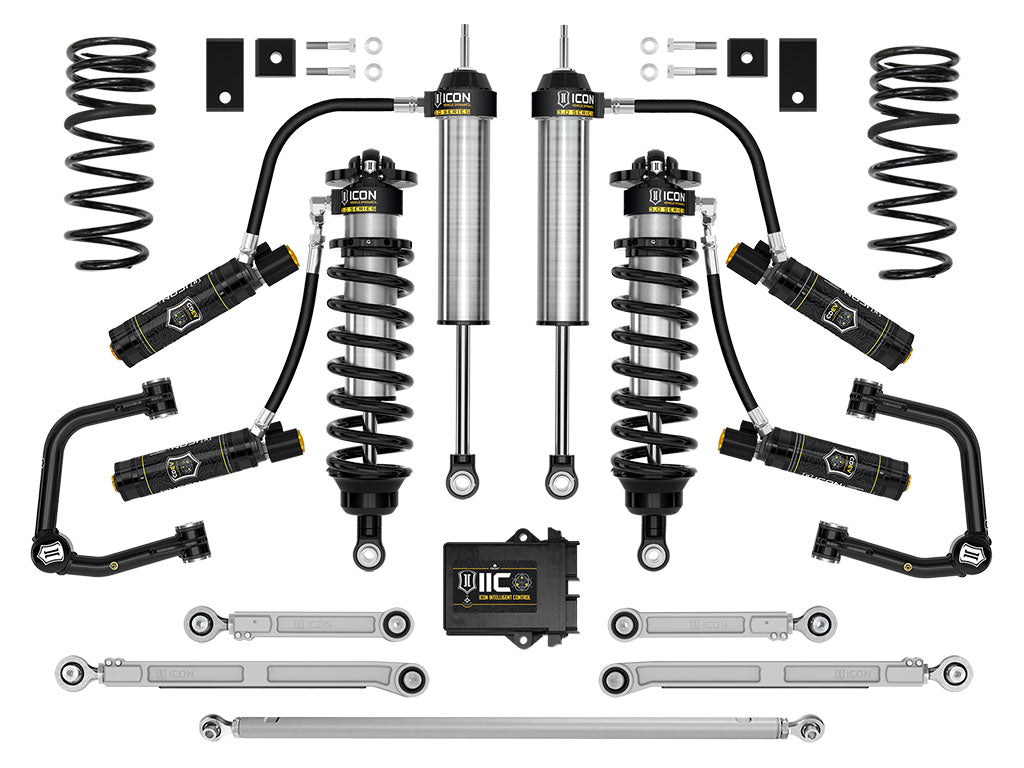

ICON Vehicle Dynamics K53254T 3-4.25 inch Stage 4 3.0 Suspension System TubularK53254T
Stage 4 includes 3.0 Series CDEV coilovers for 3-4.25†of front lift, greater performance, and 35†tire fitment. UCAs, rear links/track bar provide alignment correction and rear coils with 3.0 Series CDEV rear shocks balance the tuning.
Rounding out the Stage 4 suspension system are 3.0 Series rear remote reservoir shocks specially tailored for the 2023 Sequoia. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks, offering outstanding performance off-road and a smooth ride on the street. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks, plus their remote reservoirs, offer even greater heat dissipation and resistance to shock fade under hard use. Also equipped with CDE Valves, these offer active, on the fly compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 3.0 Series CDEV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
- Vehicle specific design for 2023 Toyota Sequoia
- Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Dual rate rear coil springs improve performance and ride quality while providing 3 inch of rear lift
- On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
- 3.0 Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
- 3.0 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 3-4.25†of front lift over stock
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
Information:
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
Application Summary:
| Year |
Make/Model |
| 2023 |
Toyota Sequoia |
