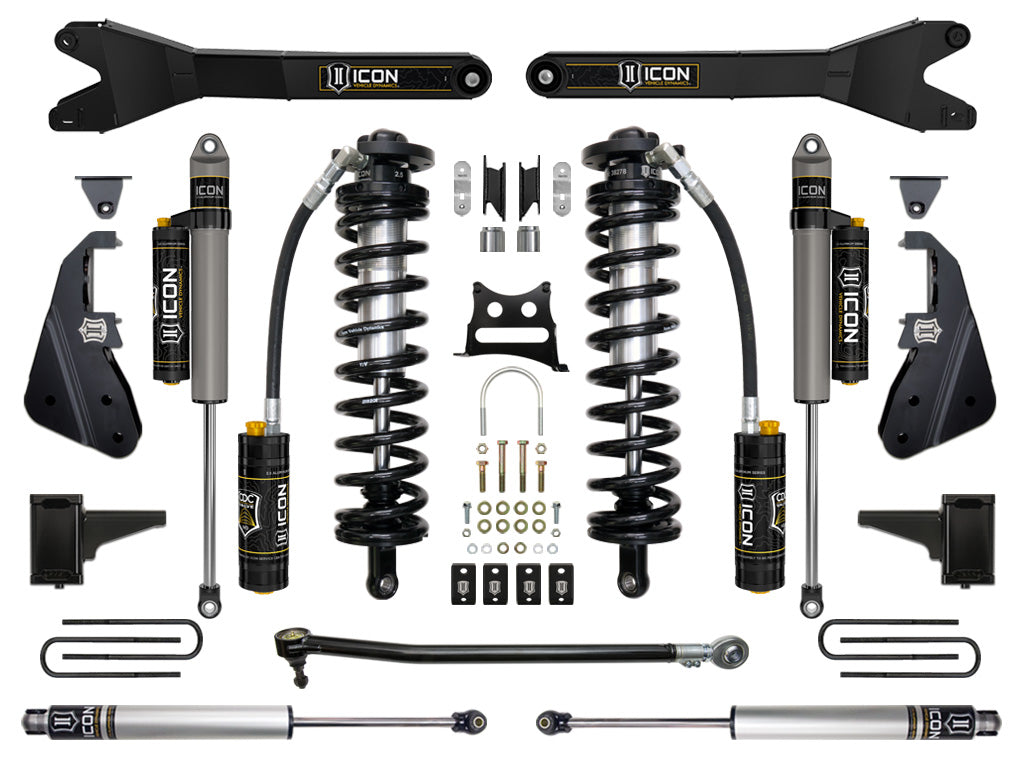

ICON Vehicle Dynamics K63155R 4-5.5 Stage 5 Coilover Conversion System with Radius Arm

ICON Vehicle Dynamics K63155R 4-5.5 Stage 5 Coilover Conversion System with Radius Arm

ICON Vehicle Dynamics
IVDK63155R
Heads up — this is a Special Order item. We don't carry it on the shelf, but we can bring it in for you! Lead times vary and can be 10 weeks or more depending on the manufacturer. Give us a call or send us a message so we can check current availability and walk you through your options before you commit to an order.
$11,135.67
$11,421.52
$11,135.67
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
ICON Vehicle Dynamics K63155R 4-5.5 Stage 5 Coilover Conversion System with Radius Arm

ICON Vehicle Dynamics

ICON Vehicle Dynamics K63155R 4-5.5 Stage 5 Coilover Conversion System with Radius Arm

$11,421.52 $11,135.67
ICON Vehicle Dynamics K63155R 4-5.5 Stage 5 Coilover Conversion System with Radius Arm

ICON Vehicle Dynamics

ICON Vehicle Dynamics K63155R 4-5.5 Stage 5 Coilover Conversion System with Radius Arm

$11,421.52 $11,135.67
Description

ICON Vehicle Dynamics K63155R 4-5.5 Stage 5 Coilover Conversion System with Radius Arm

K63155R

2017-2022 FORD F-250/F-350 SUPER DUTY 4-5.5 inch LIFT STAGE 5 COILOVER CONVERSION SYSTEM WITH RADIUS ARM

This Stage 5 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37†tall tire clear without coming in contact with the radius arm.
  • Bolt-in system fits in OE coil bucket location
  • Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • FK Rod End bearings for extended longevity and minimal deflection
  • Ride height adjustable coilovers provide 4-5.5 inch or 4.75-6.25 inch of lift, depending on year model of truck
  • Increased wheel travel and ride quality over stock
  • Decreased body roll and improved on and off-road ride dynamics
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • ICON CDC Valve allows quick and easy end user compression adjustability
  • Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
  • Shocks are fully rebuildable and revalveable
  • Coilover conversion allows for addition of secondary shock
  • Corrosion resistant CAD plated coilover shock body with 7/8 inch shaft
  • Eibach coil springs guaranteed for life against sagging or breakage

Information:

Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 inch w/ 5.00†Backspace / 6mm Offset

Application Summary:

Year Make/Model
2017-2022 Ford F-250 Super Duty
2017-2022 Ford F-350 Super Duty
