Description

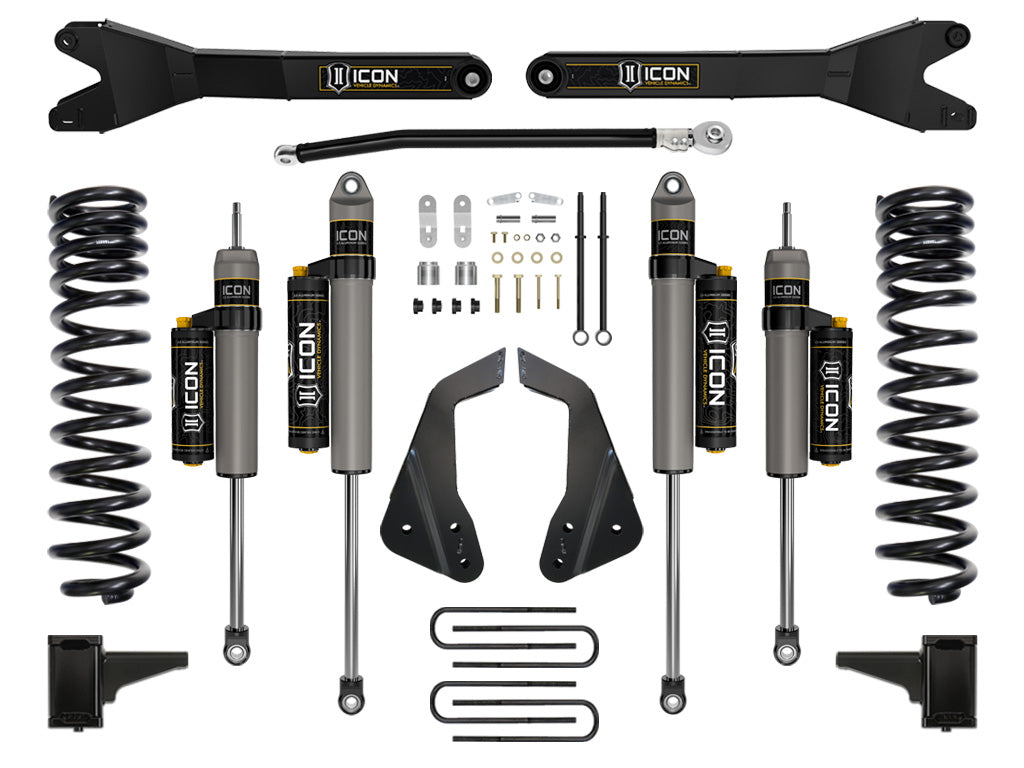

ICON Vehicle Dynamics K64503R 4.5 Stage 4 Suspension System with Radius Arm

K64503R

2005-2007 FORD F250/F350 SUPER DUTY 4.5 inch LIFT STAGE 4 SUSPENSION SYSTEM WITH RADIUS ARM

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37†tall tire clear without coming in contact with the radius arm.
  • 50% increase in wheel travel
  • No change in towing capacity
  • No drive shaft modifications needed
  • Corrosion resistant anodized aluminum shock bodies with 7/8 inch shafts (2.5 Aluminum Series shocks)
  • Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
  • 100% bolt-on system - no drilling,cutting or welding necessary for install
  • Less body roll than stock truck
  • 4.5 inch more travel from ride height to front bump stops
  • State-of-the-art dual-rate coil spring
  • Lifetime guarantee that coil springs wont sag
  • Clears 35 inch Tall Tires & 37 inch Tall Tires w/ Minor Trimming

Information:

APPLICATION NOTE #28: PINCH WELD ON ‘05-10 SUPERDUTY RADIUS ARMS MAY COME IN CONTACT WITH RADIUS ARM DROP BRACKET HARDWARE

Application Summary:

Year Make/Model
2005-2007 Ford F-250 Super Duty
2005-2007 Ford F-350 Super Duty
Fitment
